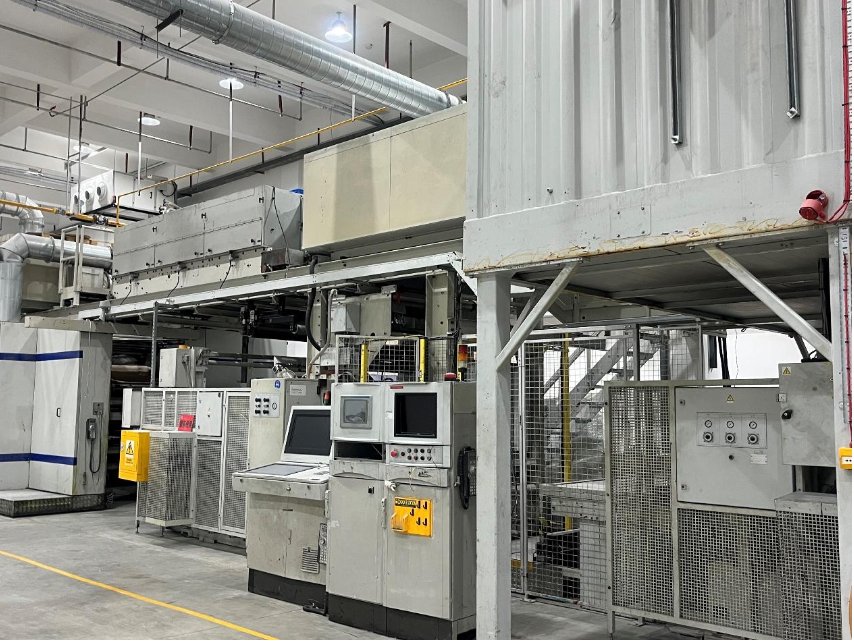

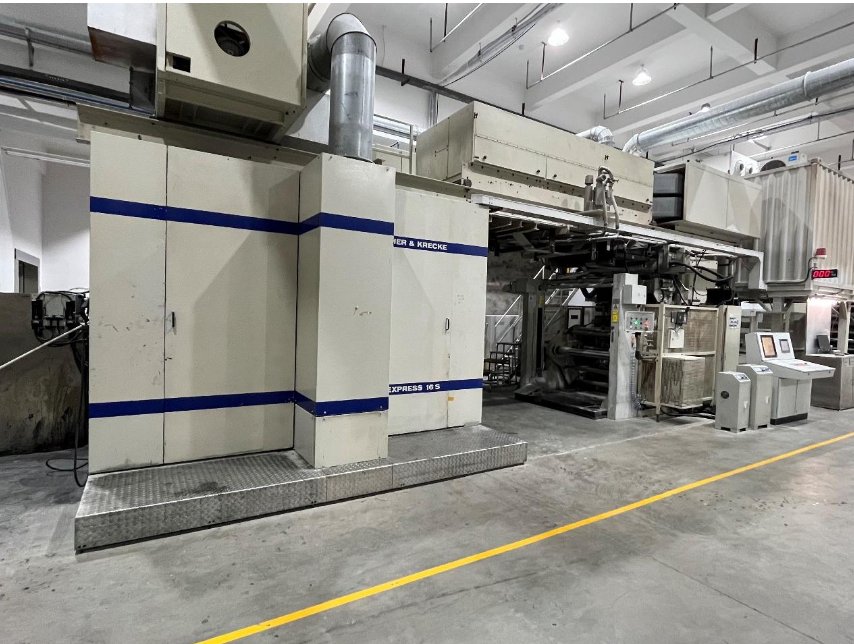

- Code Machine
- FL1087
- Fabricant
- FISCHER & KRECKE
- Modello
- 16S
- Année
- 2005
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1100
- Print width (mm)
- 1050
- Max print repeat (mm)
- 800
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones, 4 fans , final tunnel, 2 gas burners
- Videocamera
- BST Eltromat with quality control, year 2016
- Web guides
- 2 in and out
- Vyscosity control
- Automatic
- Washing system
- Yes
- Inking system
- Closed chamber doctor blades
Code Machine | FL1087 |
Fabricant | FISCHER & KRECKE |
Modello | 16S |
Année | 2005 |
Number of colors | 8 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1100 |
Print width (mm) | 1050 |
Max print repeat (mm) | 800 |
Unwinder type | Turret |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Turret |
Max reel diameter rewinder (mm) | 1000 |
Drying | 2 zones, 4 fans , final tunnel, 2 gas burners |
Videocamera | BST Eltromat with quality control, year 2016 |
Web guides | 2 in and out |
Vyscosity control | Automatic |
Washing system | Yes |
Inking system | Closed chamber doctor blades |

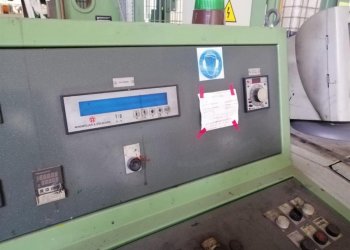

WINDMÖLLER & HÖLSCHER OLYMPIA
-
Code Machine: FL0758
-
Année: 1996
-
Web width (mm): 1270
COMIFLEX
-
Code Machine: FL1094
-
Année: 2008
-
Web width (mm): 1580
OFEM COLUMBUS 10/806
-
Code Machine: FL0978
-
Année: 1997
-
Web width (mm): 1670
COMEXI FP1808
-
Code Machine: FL1081
-
Année: 2000
-
Web width (mm): 1270
COMEXI OFFSET CI 8
-
Code Machine: FL1057
-
Année: 2014
-
Web width (mm): 1120
