- Code Machine
- FL1030
- Fabricant
- FLEXOTECNICA
- Modello
- TACHYS
- Année
- 2003
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 950
- Print width (mm)
- 900
- Min print repeat (mm)
- 280
- Max print repeat (mm)
- 650
- Unwinder type
- double bracket unwinder with dancing roller tension control
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic rewinder
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , 4 fans , final tunnel ,Electric Heaters
- Videocamera
- 3chip camera system, with additional inspection unit
- Corona treatment
- Yes
- Web guides
- Yes,BST guide before drum, BST guide before rewinder
- Inking system
- closed doctor blade chambers , electric ink pumps
- Anilox
- 25
- Print Sleeves
- 236
- Note
- - banana roll - chill roller - 3 zones of tension control - slitting unit - drum temperature controller - gear 10mm step - speed 250m/m, depending on a product - Dimensions: 14480 mm long, 4820 mm height, around 5500mm total width
| Code Machine | FL1030 |
| Fabricant | FLEXOTECNICA |
| Modello | TACHYS |
| Année | 2003 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 950 |
| Print width (mm) | 900 |
| Min print repeat (mm) | 280 |
| Max print repeat (mm) | 650 |
| Unwinder type | double bracket unwinder with dancing roller tension control |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic rewinder |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans , final tunnel ,Electric Heaters |
| Videocamera | 3chip camera system, with additional inspection unit |
| Corona treatment | Yes |
| Web guides | Yes,BST guide before drum, BST guide before rewinder |
| Inking system | closed doctor blade chambers , electric ink pumps |
| Anilox | 25 |
| Print Sleeves | 236 |
| Note | - banana roll - chill roller - 3 zones of tension control - slitting unit - drum temperature controller - gear 10mm step - speed 250m/m, depending on a product - Dimensions: 14480 mm long, 4820 mm height, around 5500mm total width |
WINDMÖLLER & HÖLSCHER ASTRAFLEX
-
Code Machine: FL0737
-
Année: 2004
-
Web width (mm): 1650
FLEXOTECNICA TACHYS
-
Code Machine: FL1101
-
Année: 2003
-
Web width (mm): 1250

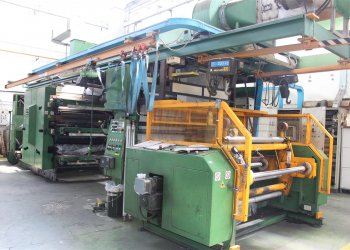

TCM Midi 50 - 114
-
