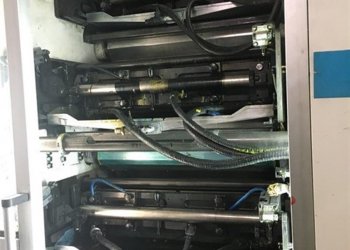

- Code Machine
- FL785
- Fabricant
- WINDMÖLLER & HÖLSCHER
- Modello
- PRIMAFLEX CS
- Année
- 2004
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 870
- Print width (mm)
- 820
- Min print repeat (mm)
- 250
- Max print repeat (mm)
- 800
- Max reel diameter unwinder (mm)
- 800
- Max reel diameter rewinder (mm)
- 800
- Drying
- Heat exchanger for termic oil
- Videocamera
- AVT video inspection system installed in 2015 - The AVT camera is dedicated just for printing inspection. There is no register control function
- Corona treatment
- SOFTAL
- Web guides
- 2 EDGE GUIDE CONTROL BST
- Vyscosity control
- YES
- Washing system
- AUTOMATIC
- Inking system
- CHAMBER DOCTOR BLADES
- Anilox
- 55
- Print Sleeves
- 568
| Code Machine | FL785 |
| Fabricant | WINDMÖLLER & HÖLSCHER |
| Modello | PRIMAFLEX CS |
| Année | 2004 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 870 |
| Print width (mm) | 820 |
| Min print repeat (mm) | 250 |
| Max print repeat (mm) | 800 |
| Max reel diameter unwinder (mm) | 800 |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Heat exchanger for termic oil |
| Videocamera | AVT video inspection system installed in 2015 - The AVT camera is dedicated just for printing inspection. There is no register control function |
| Corona treatment | SOFTAL |
| Web guides | 2 EDGE GUIDE CONTROL BST |
| Vyscosity control | YES |
| Washing system | AUTOMATIC |
| Inking system | CHAMBER DOCTOR BLADES |
| Anilox | 55 |
| Print Sleeves | 568 |
