- Código Máquina
- PO54
- Constructor
- WATERLINE
- Modello
- Ritebag 600
- Año
- 2013
- Type of sealing/bags
- Stand up pouches
- Bag length
- MAX: 650mm (610mm stand up) on 1 lane. 320mm (305mm stand-up) on 2 lanes MINIMUM:80mm
- Bag width
- MAX: 800mm MIN: 80mm

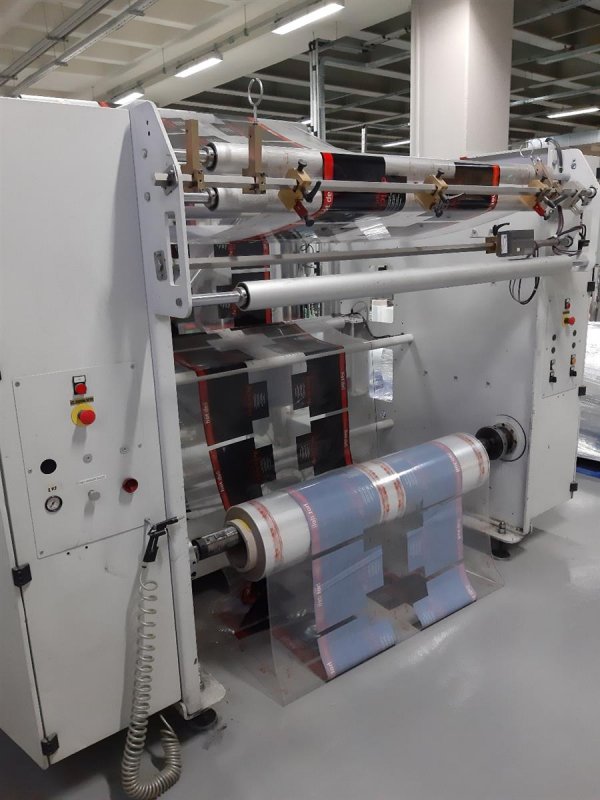

- Unwinder
- Single, max reel width 1530mm, reel diam 1016mm 3 and 6 inch shafts, 2 trimming blades, edge guide, tension control, Punching station in register for guesset hole, main folding triagle for prodiction of 3 side seal from 1 web; Gusset foling bord for production of stand up from 1 web
- Cycle / min
- 125
- Additional information type of bags
- 2 and 3 side sela pouches and stand-up pouches (gusset depth 20-100mm)
- Note
- Machine is servo driven, with several independent servo drives for max flexibility and to optimize change over time - Longitudinal zipper sealing, 2 lanes - 2 xLongitudinal sealing (800+100mm) and cooling (400+100mm)¨ - 2x cross sealing sections 680mm - handle hole punching - V and U corners punching - Register photocell - MD trimming - Cross cutting section, flying knife (1 or 2 lanes)
| Código Máquina | PO54 |
| Constructor | WATERLINE |
| Modello | Ritebag 600 |
| Año | 2013 |
| Type of sealing/bags | Stand up pouches |
| Bag length | MAX: 650mm (610mm stand up) on 1 lane. 320mm (305mm stand-up) on 2 lanes MINIMUM:80mm |
| Bag width | MAX: 800mm MIN: 80mm |
| Unwinder | Single, max reel width 1530mm, reel diam 1016mm 3 and 6 inch shafts, 2 trimming blades, edge guide, tension control, Punching station in register for guesset hole, main folding triagle for prodiction of 3 side seal from 1 web; Gusset foling bord for production of stand up from 1 web |
| Cycle / min | 125 |
| Additional information type of bags | 2 and 3 side sela pouches and stand-up pouches (gusset depth 20-100mm) |
| Note | Machine is servo driven, with several independent servo drives for max flexibility and to optimize change over time - Longitudinal zipper sealing, 2 lanes - 2 xLongitudinal sealing (800+100mm) and cooling (400+100mm)¨ - 2x cross sealing sections 680mm - handle hole punching - V and U corners punching - Register photocell - MD trimming - Cross cutting section, flying knife (1 or 2 lanes) |
