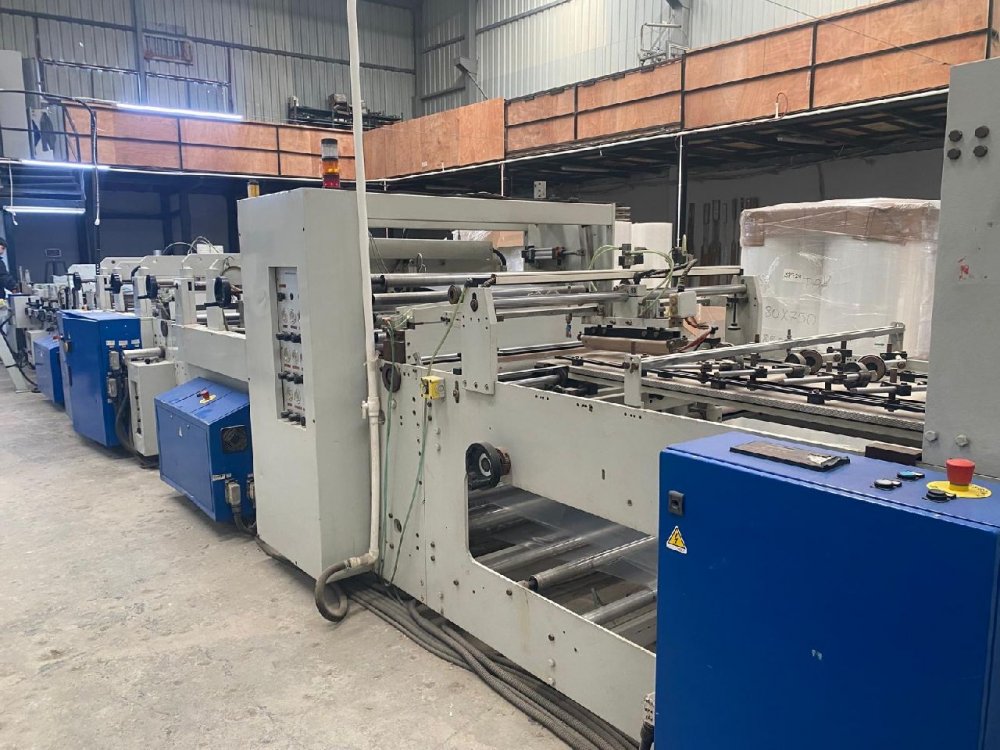

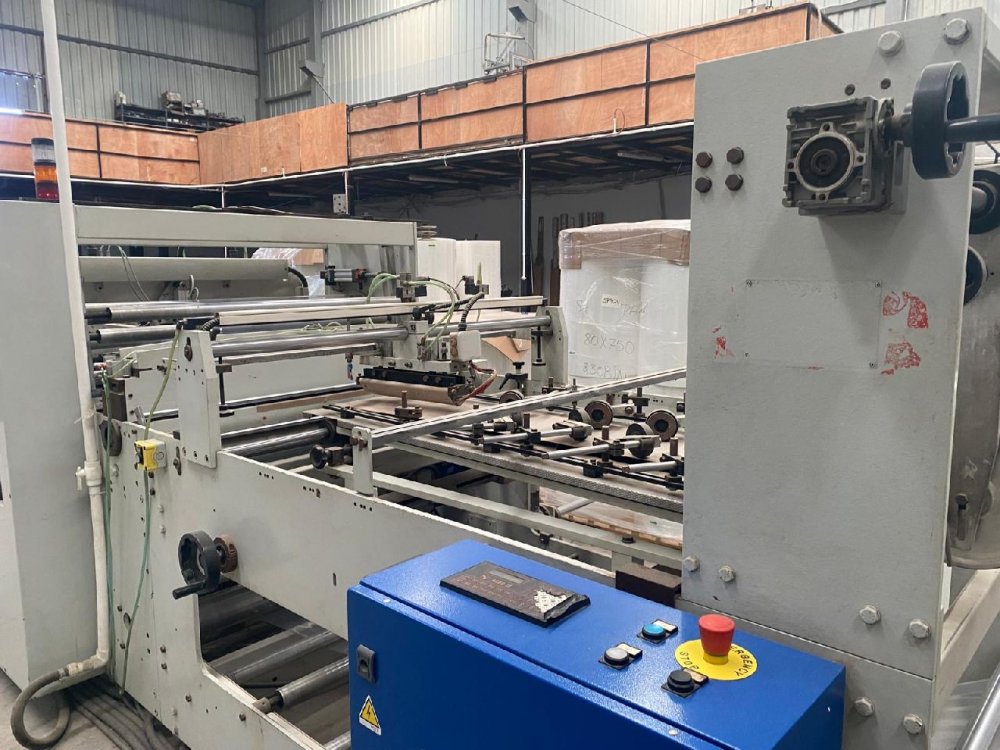

- Código Máquina
- PO61
- Constructor
- ELBA
- Modello
- SAV20-12
- Año
- 2008
- Type of sealing/bags
- Multiple type
- Bag length
- 80 - 800 mm, repeat 1600mm
- Bag width
- 120 - 1200 mm
- Unwinder
- Dual bracket for rolls diam 1200mm
- Cycle / min
- 150 Strokes/min
- Additional information type of bags
- 3 side seal, 2 ups of doypack, 1 up of side gussetted central seal and quad 4 seals.
- Note

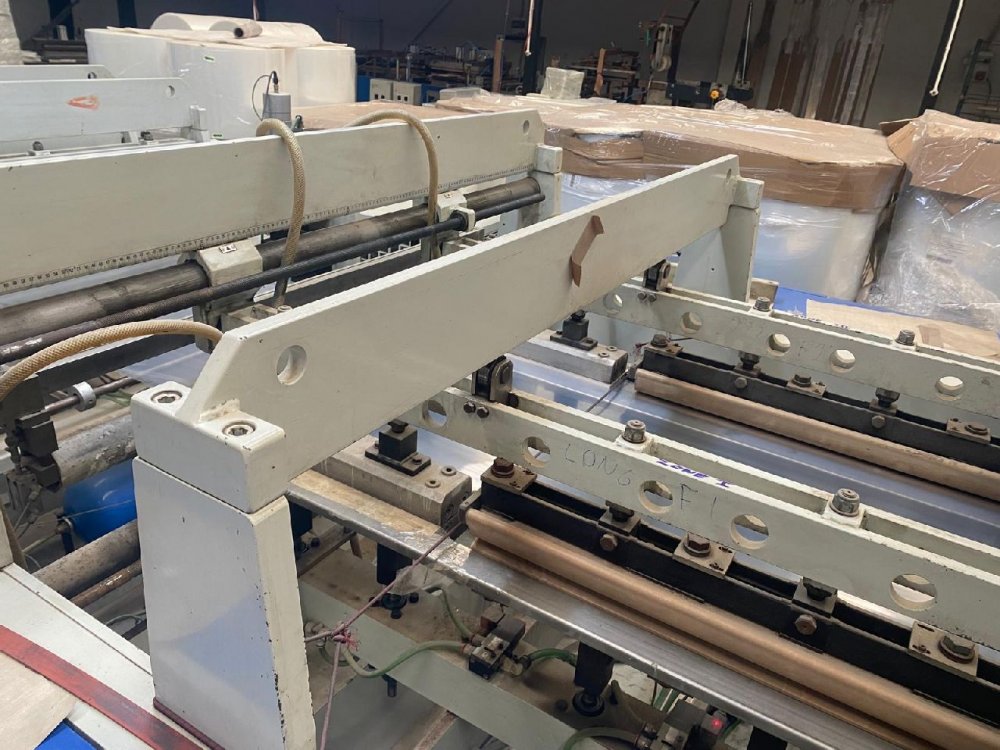

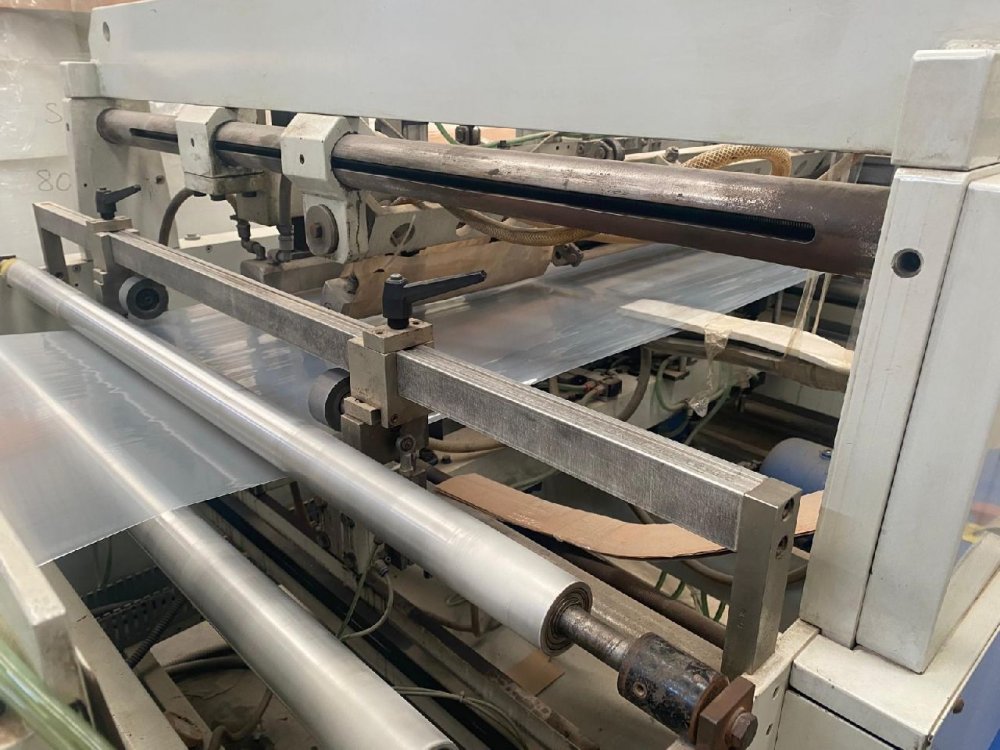

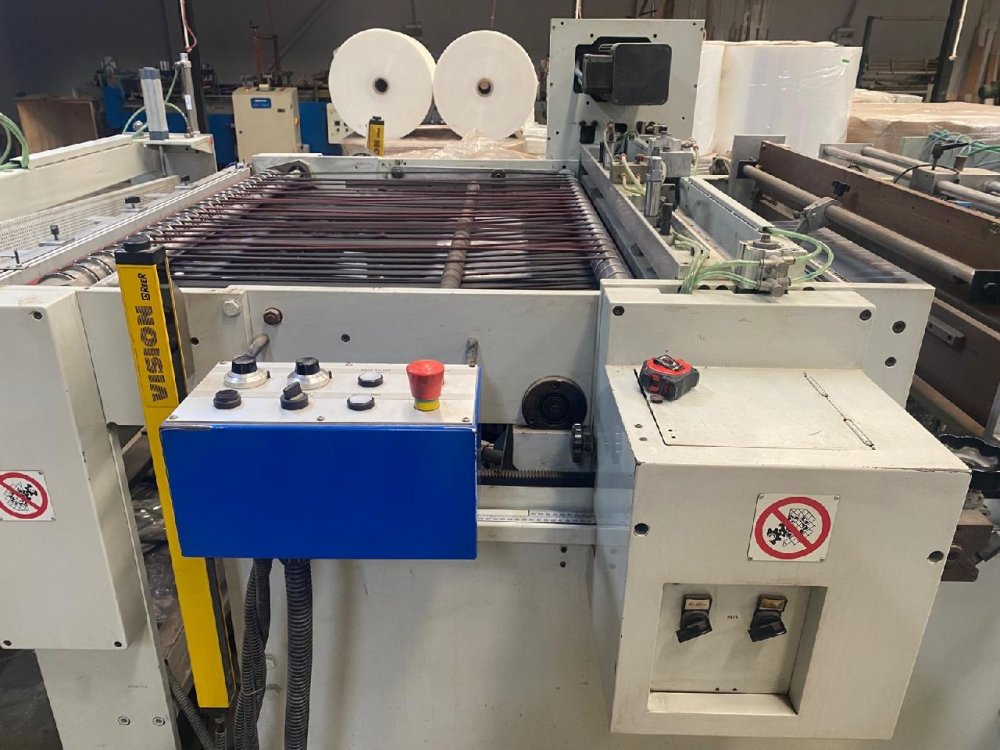

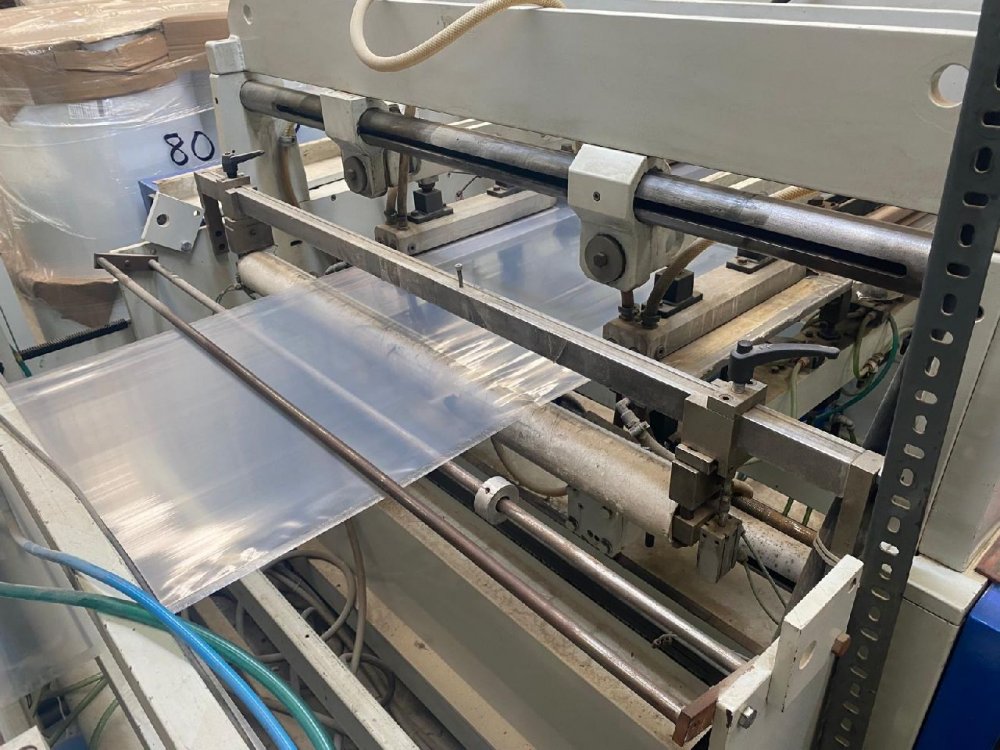

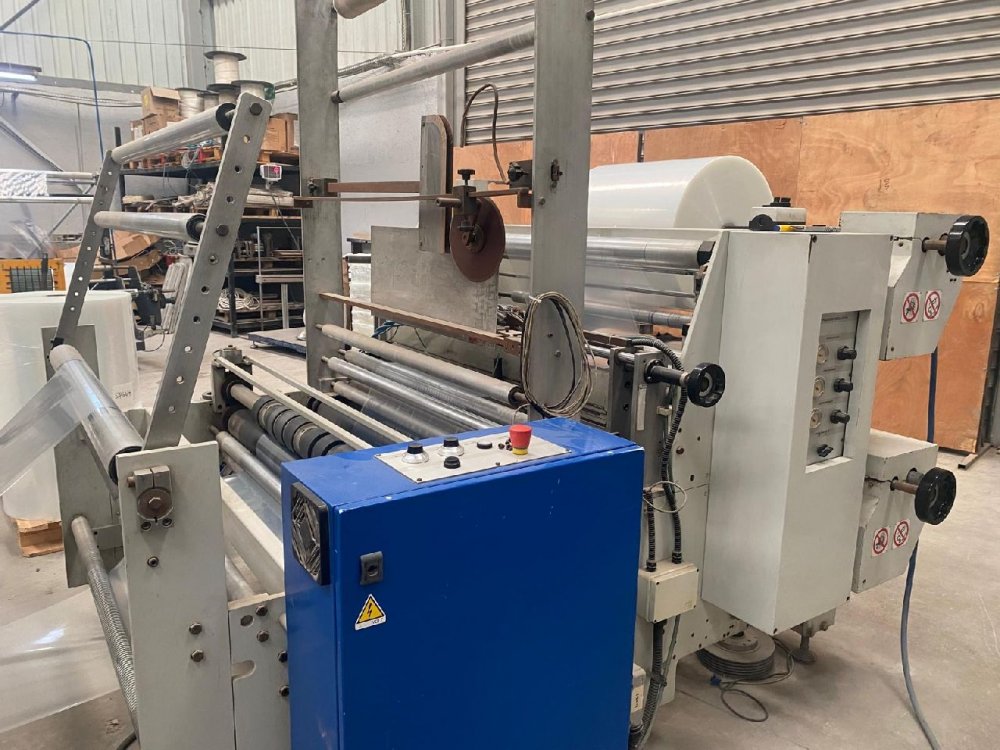

- Pneumatic movement of sealing bars 1 Double unwind stand PBV-12 width 1200 mm. with expansion shafts 1 Gusset forming group and longitudinal welding bar type SFL-12 1 Continous perforator group type PPC 1 Zipper unwinding and guiding group type PCV-M on 2 lanes 1 Longitudinal welders-holder group type I-SI.O-12 equipped with: - 2 longitudinal adjustable welding bars type SLO-DRSL with cooling unit - 1 quick change - 1 double zipper profile 1 Additional longitudinal welders-holder group type I-SLO-12 equipped with: - 2 longitudinal adjustable welding bars type ST O-DRSL with cooling unit - 2 quick changes - 2 doypack profiles 1 Trim cutting group type RIB 2 Transversal welding devices type STR 1 Cooling device type DRS 1 Automatic welding machine central part type SA V20-12 complete with photocell, cutting blade and exit module type MUV 3 Longitudinal cutting groups type TAI. 1 Automatic collecting table type TNL-12 1 Chiller
| Código Máquina | PO61 |
| Constructor | ELBA |
| Modello | SAV20-12 |
| Año | 2008 |
| Type of sealing/bags | Multiple type |
| Bag length | 80 - 800 mm, repeat 1600mm |
| Bag width | 120 - 1200 mm |
| Unwinder | Dual bracket for rolls diam 1200mm |
| Cycle / min | 150 Strokes/min |
| Additional information type of bags | 3 side seal, 2 ups of doypack, 1 up of side gussetted central seal and quad 4 seals. |
| Note | Pneumatic movement of sealing bars 1 Double unwind stand PBV-12 width 1200 mm. with expansion shafts 1 Gusset forming group and longitudinal welding bar type SFL-12 1 Continous perforator group type PPC 1 Zipper unwinding and guiding group type PCV-M on 2 lanes 1 Longitudinal welders-holder group type I-SI.O-12 equipped with: - 2 longitudinal adjustable welding bars type SLO-DRSL with cooling unit - 1 quick change - 1 double zipper profile 1 Additional longitudinal welders-holder group type I-SLO-12 equipped with: - 2 longitudinal adjustable welding bars type ST O-DRSL with cooling unit - 2 quick changes - 2 doypack profiles 1 Trim cutting group type RIB 2 Transversal welding devices type STR 1 Cooling device type DRS 1 Automatic welding machine central part type SA V20-12 complete with photocell, cutting blade and exit module type MUV 3 Longitudinal cutting groups type TAI. 1 Automatic collecting table type TNL-12 1 Chiller |
