- Código Máquina
- PO38
- Constructor
- WATERLINE
- Modello
- RITEBAG 1200-S-LP
- Año
- 2006
- Type of sealing/bags
- 3 side weld
- Bag length
- 150mm min 1200mm max
- Bag width
- 80mm min unlimited
- Unwinder

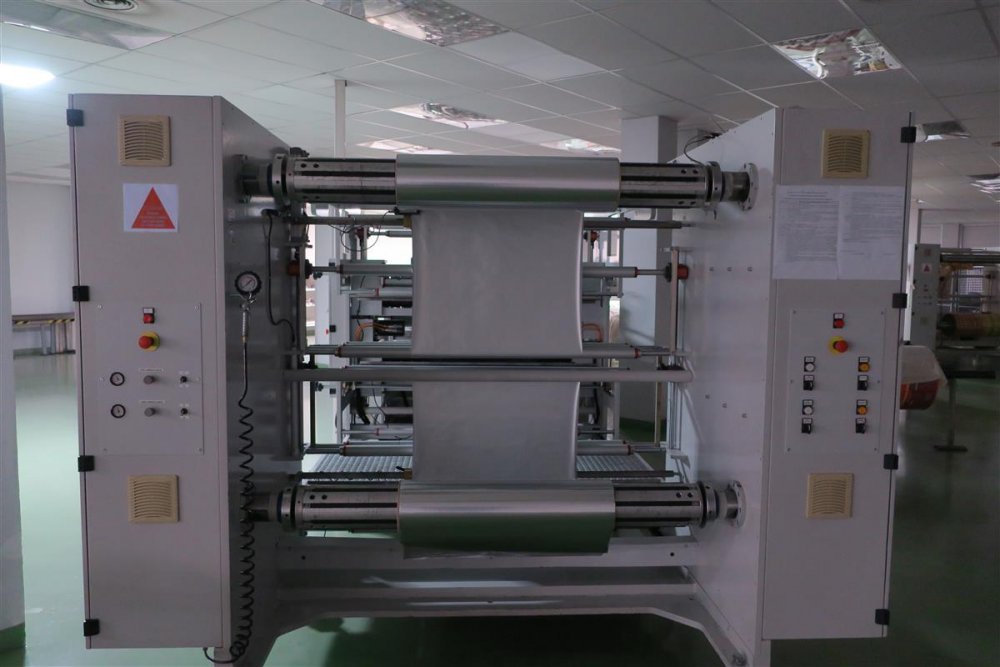

- Double W=1220mm x diameter 800mm on 152mm ID cores
- Additional information type of bags
- 3 side seal pouches
- Note

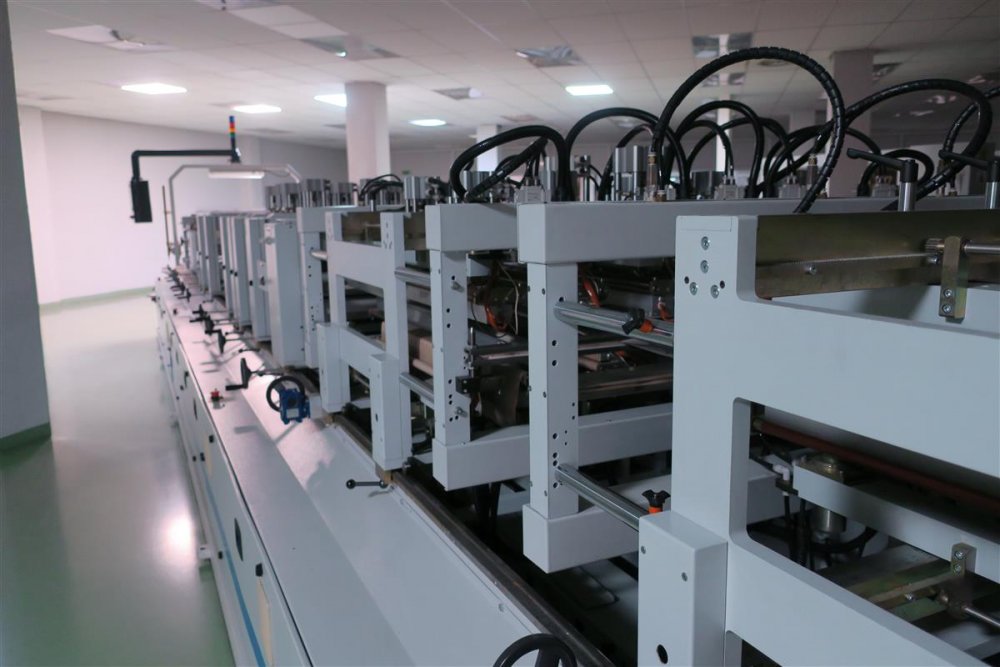

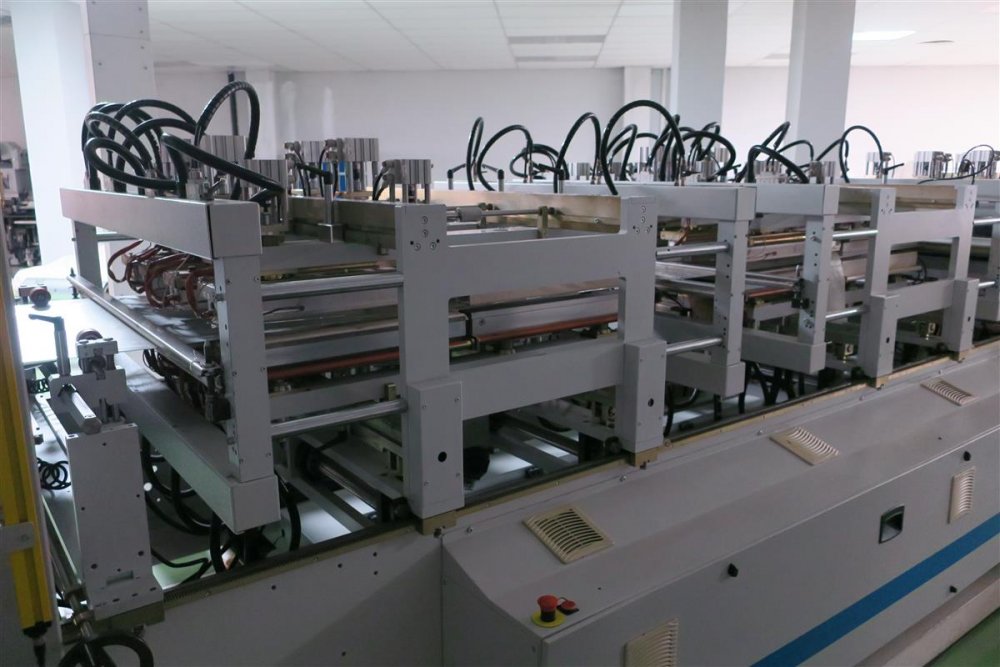

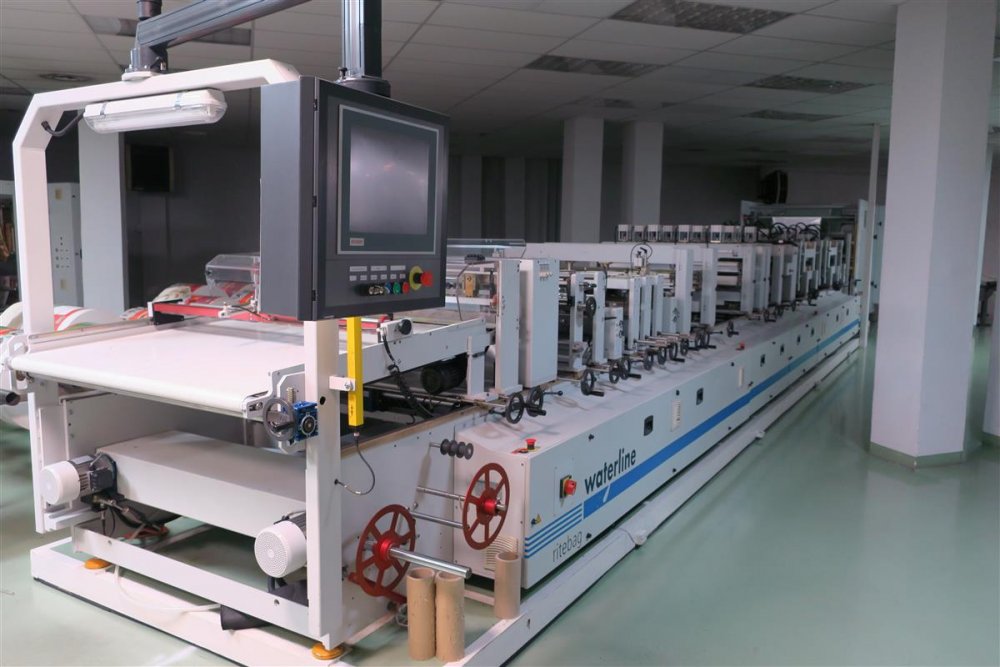

- Installed power 70Kw, 400V 50 Hz 14 m x 2 m x 2.3 m (L x W x H) 2 edge ultrasensor edge guides 2 longitudinal sealing stations, with 4 bars and 5 bars 600+ 600mm cooling 4 cross sealing bars 2 cross cooling bars 8 Euro holes, 9 Round corner, 9 tear notch punching units cross cutting station with servo-drive Guillotine mounted on ball rails Nr. 1 Industrial-PC with VGA graphic monitor and touch screen 12" (800 x 600 pixel)
| Código Máquina | PO38 |
| Constructor | WATERLINE |
| Modello | RITEBAG 1200-S-LP |
| Año | 2006 |
| Type of sealing/bags | 3 side weld |
| Bag length | 150mm min 1200mm max |
| Bag width | 80mm min unlimited |
| Unwinder | Double W=1220mm x diameter 800mm on 152mm ID cores |
| Additional information type of bags | 3 side seal pouches |
| Note | Installed power 70Kw, 400V 50 Hz 14 m x 2 m x 2.3 m (L x W x H) 2 edge ultrasensor edge guides 2 longitudinal sealing stations, with 4 bars and 5 bars 600+ 600mm cooling 4 cross sealing bars 2 cross cooling bars 8 Euro holes, 9 Round corner, 9 tear notch punching units cross cutting station with servo-drive Guillotine mounted on ball rails Nr. 1 Industrial-PC with VGA graphic monitor and touch screen 12" (800 x 600 pixel) |
WATERLINE RITEBAG 900-S-LP
-
Código Máquina: PO37
-
Año: 2006
-
Bag width: 80-300mm
TOTANI ST-24-1
-
Código Máquina: PO76
-
Año: 2012
-
Bag width: 80-300 MM
HCI CONVERTING FTSC
-
Código Máquina: PO08
-
Año: 2000
-
Bag width: max width 450mm
FAMA T8
-
Código Máquina: PO59
-
Año: 1996
-
Bag width: 200-900mm
