- Código Máquina
- PO37
- Constructor

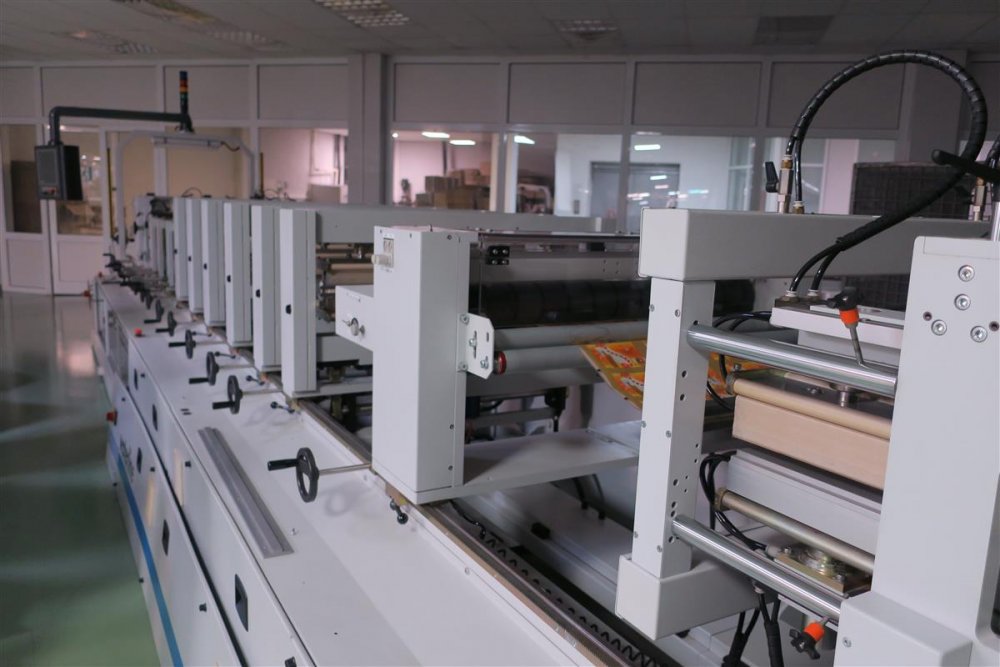

- WATERLINE
- Modello
- RITEBAG 900-S-LP
- Año
- 2006
- Type of sealing/bags
- 3 side weld
- Bag length
- 150-300mm
- Bag width
- 80-300mm
- Unwinder
- Double W= 1240mm x roll diameter 800mm on 152mm ID cores
- Cycle / min
- 180-200
- Additional information type of bags
- 3 side seal pouches
- Note
- Installed power 50 Kw, 400V 50Hz 12 m x 1.5 m x 2.3 m (L x W x H) 4 Euro hole, 4 tear notch, 5 round corner punches Dancer at unwinding + 2 edge ultrasonic guides Folding unit 3 longitudinal sealing bars 600mm+600mm cooling 4 cross sealing bars 2 cross cooling bars 1 trim winder Cross cutting by sevodriven Guillotine on rails Nr. 1 Industrial-PC with VGA graphic monitor and touch screen 12" (800 x 600 pixel)
| Código Máquina | PO37 |
| Constructor | WATERLINE |
| Modello | RITEBAG 900-S-LP |
| Año | 2006 |
| Type of sealing/bags | 3 side weld |
| Bag length | 150-300mm |
| Bag width | 80-300mm |
| Unwinder | Double W= 1240mm x roll diameter 800mm on 152mm ID cores |
| Cycle / min | 180-200 |
| Additional information type of bags | 3 side seal pouches |
| Note | Installed power 50 Kw, 400V 50Hz 12 m x 1.5 m x 2.3 m (L x W x H) 4 Euro hole, 4 tear notch, 5 round corner punches Dancer at unwinding + 2 edge ultrasonic guides Folding unit 3 longitudinal sealing bars 600mm+600mm cooling 4 cross sealing bars 2 cross cooling bars 1 trim winder Cross cutting by sevodriven Guillotine on rails Nr. 1 Industrial-PC with VGA graphic monitor and touch screen 12" (800 x 600 pixel) |
