- Código Máquina
- SR254
- Constructor
- DEL MAGLIO
- Año
- 2006
- Working width (mm)
- 1400
- Materials
- All Plastic film ad laminated
- Speed
- 400
- Unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 1100
- Rewinder type
- Center driven with independent arms
- Max diameter reel rewinder
- 600
- Rewinder description

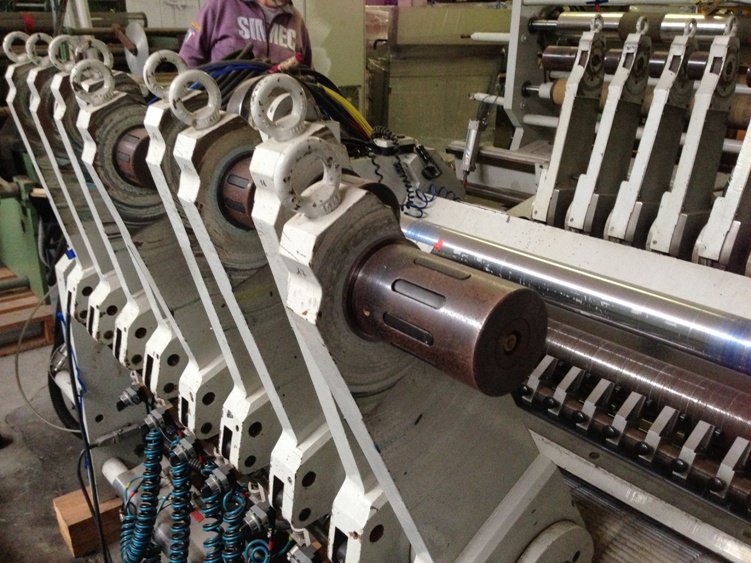

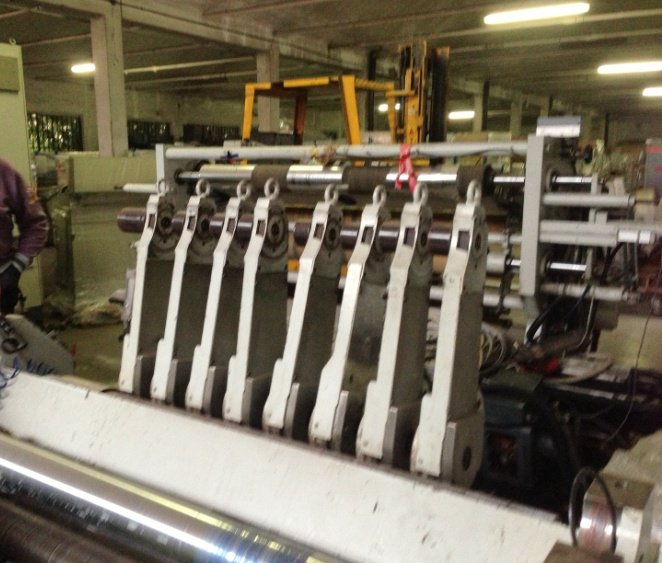

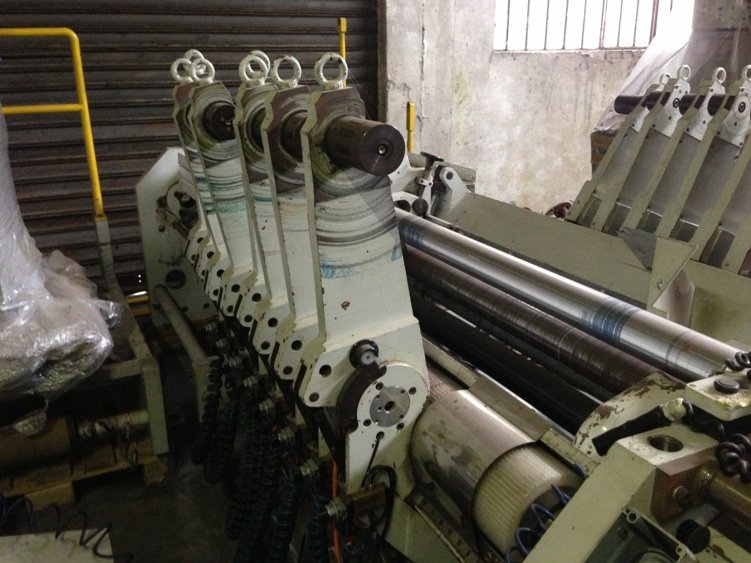

- 3 drives -center surface drive with driven drum - drive on each rewinding shaft with pneumatic clutches on each arms - rewinding of rolls width 50 up to 150 m on single arms, cores 70- 76 mm , totally 17 arms with pneumatic clutch on each arm
- Min slit width
- 50 mm
- Knives
- rotary knives
- Note
- 4 drives , one for unwinder and three for rewinder . Antistatic bars 17 independent arms for slit widths from 50 up to 150 mm each one with pneumatic clutch
| Código Máquina | SR254 |
| Constructor | DEL MAGLIO |
| Año | 2006 |
| Working width (mm) | 1400 |
| Materials | All Plastic film ad laminated |
| Speed | 400 |
| Unwinder type | Shaftless AC motor driven |
| Max diameter reel unwinder | 1100 |
| Rewinder type | Center driven with independent arms |
| Max diameter reel rewinder | 600 |
| Rewinder description | 3 drives -center surface drive with driven drum - drive on each rewinding shaft with pneumatic clutches on each arms - rewinding of rolls width 50 up to 150 m on single arms, cores 70- 76 mm , totally 17 arms with pneumatic clutch on each arm |
| Min slit width | 50 mm |
| Knives | rotary knives |
| Note | 4 drives , one for unwinder and three for rewinder . Antistatic bars 17 independent arms for slit widths from 50 up to 150 mm each one with pneumatic clutch |
