- Código Máquina
- SR443
- Constructor
- SITEC
- Modello
- SMA 600-1300
- Año
- 1999
- Working width (mm)
- 1300
- Materials
- Film, laminates, paper alluminium

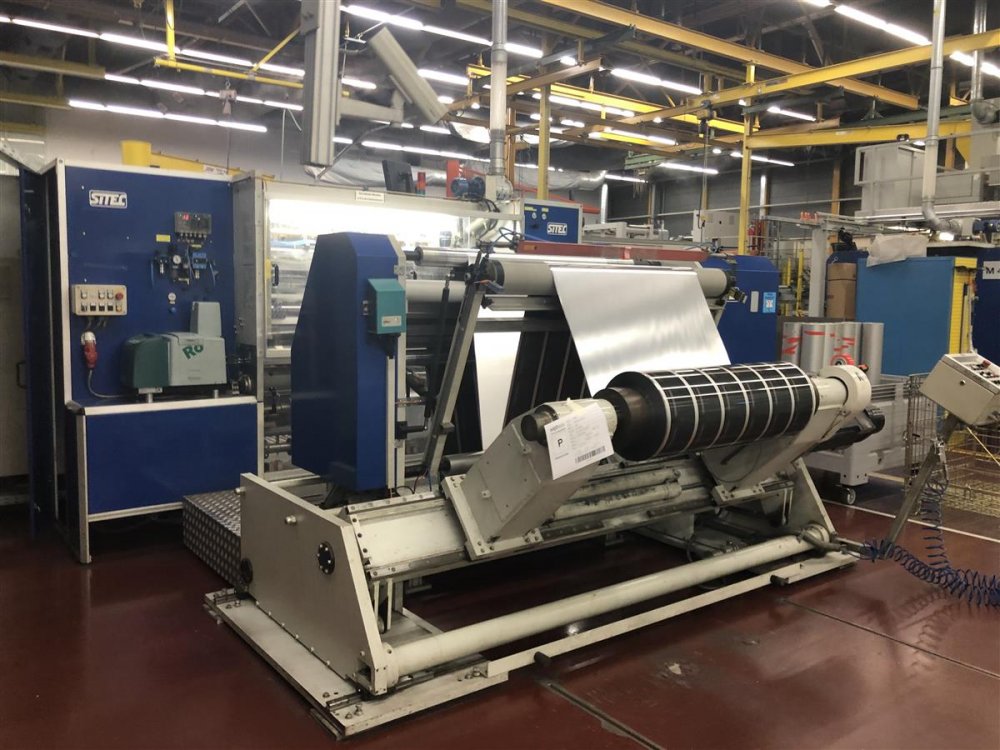

- Unwinder type
- Shaftless with automatic reel pick up
- Max diameter reel unwinder
- 1200

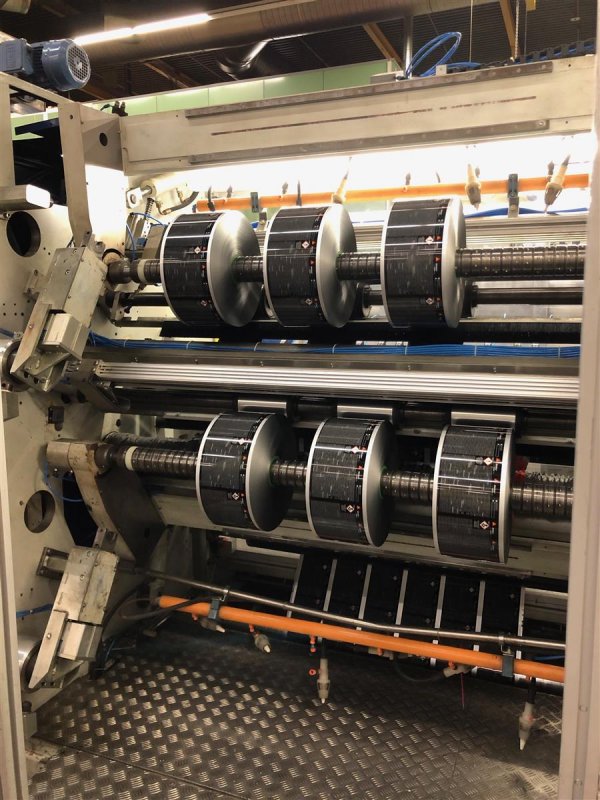

- Rewinder type
- Double shaft center driven
- Max diameter reel rewinder
- 600
- Rewinder description
- Complete automatic reel unloading and cores loading and position system. Entire change of reel, cutting, reel unloading, new cores position, gluing , re-start, happens totally automatic. Differencial shafts with friction/clutches, shpere type. pressure roller mounted on linear guides, independent pressure roller for each winding roll
- Min slit width
- 30mm

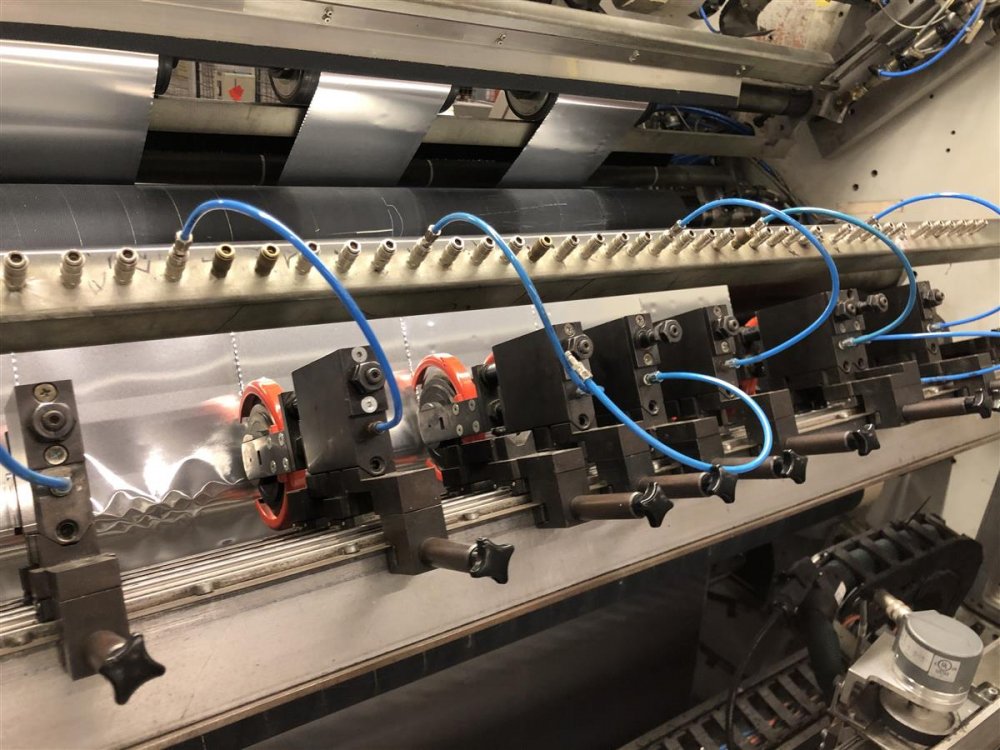

- Knives
- rotary knives
- Note

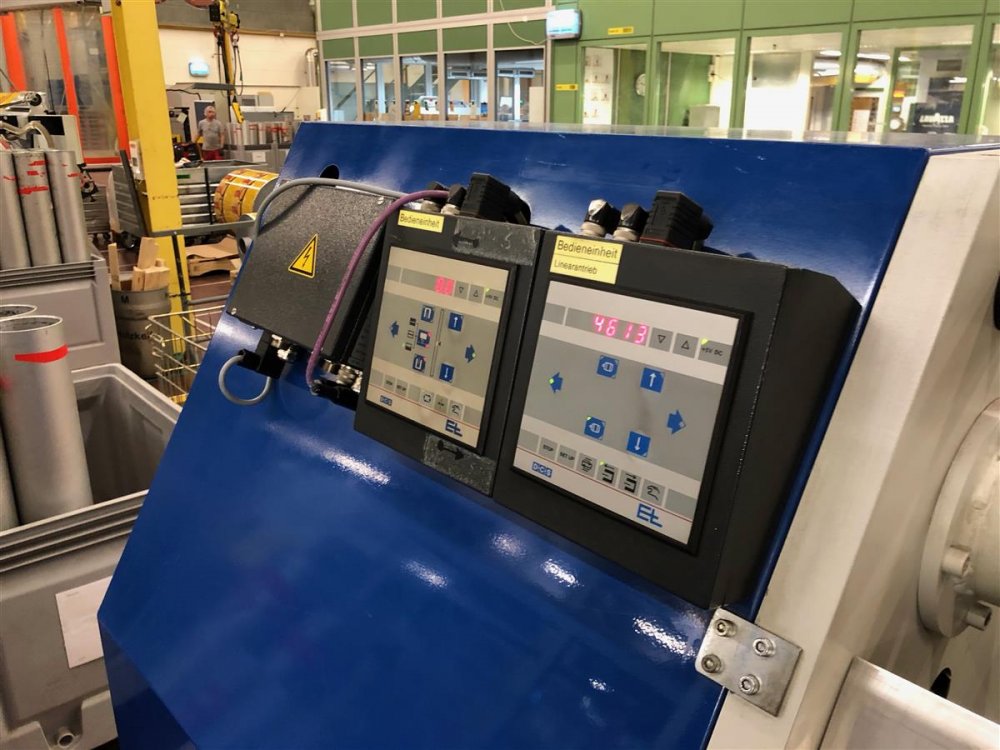

- Machine currently dismantled 3 winding shafts 3 inch 3 winding shafts 6 inch speed 450 m/min Erhardt + Leimer Typ DO 0101, zum Verfolgen der Steuerlinie Hot melt unit for material and core glue Pushing device for reels - with extraction system for shafts. Automatic insertion and positioning of new cores and automatic repositioning of new shafts Unloading and weighing of finished reels
| Código Máquina | SR443 |
| Constructor | SITEC |
| Modello | SMA 600-1300 |
| Año | 1999 |
| Working width (mm) | 1300 |
| Materials | Film, laminates, paper alluminium |
| Unwinder type | Shaftless with automatic reel pick up |
| Max diameter reel unwinder | 1200 |
| Rewinder type | Double shaft center driven |
| Max diameter reel rewinder | 600 |
| Rewinder description | Complete automatic reel unloading and cores loading and position system. Entire change of reel, cutting, reel unloading, new cores position, gluing , re-start, happens totally automatic. Differencial shafts with friction/clutches, shpere type. pressure roller mounted on linear guides, independent pressure roller for each winding roll |
| Min slit width | 30mm |
| Knives | rotary knives |
| Note | Machine currently dismantled 3 winding shafts 3 inch 3 winding shafts 6 inch speed 450 m/min Erhardt + Leimer Typ DO 0101, zum Verfolgen der Steuerlinie Hot melt unit for material and core glue Pushing device for reels - with extraction system for shafts. Automatic insertion and positioning of new cores and automatic repositioning of new shafts Unloading and weighing of finished reels |
