- Código Máquina
- LA121
- Constructor
- CUSTOM MADE
- Modello

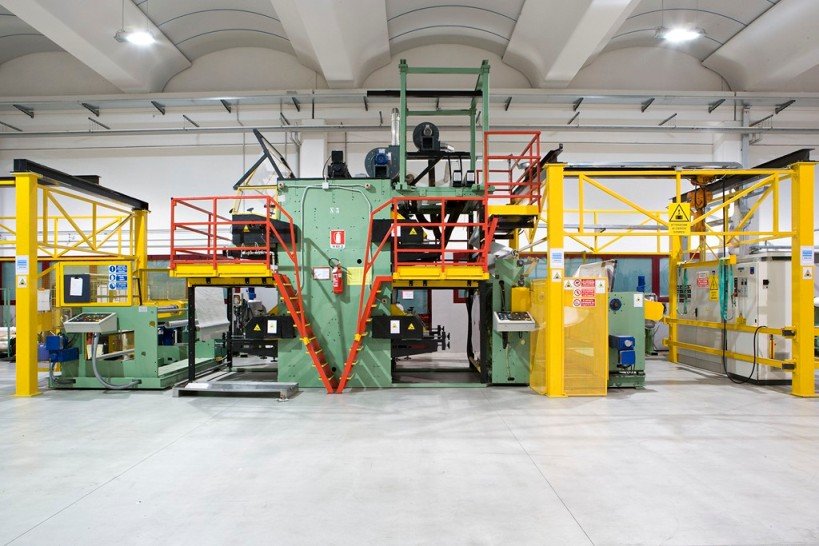

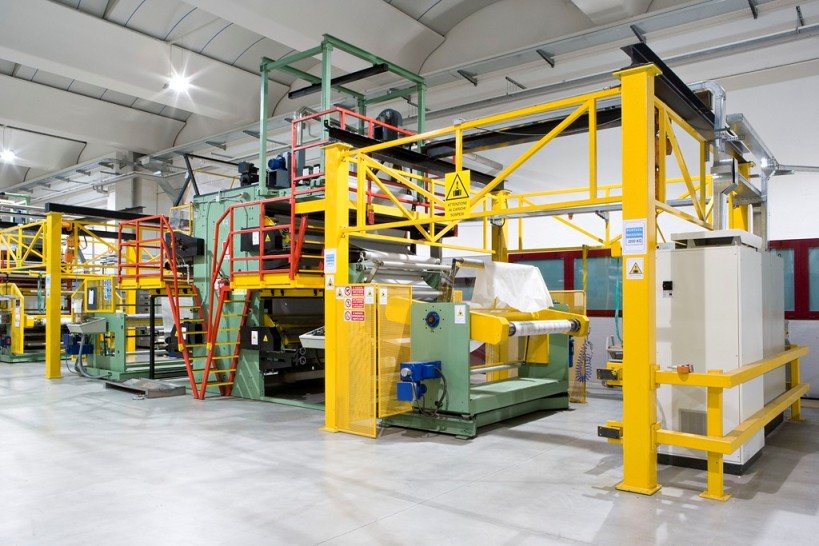

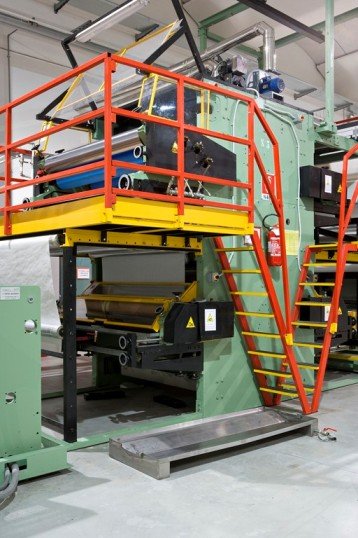

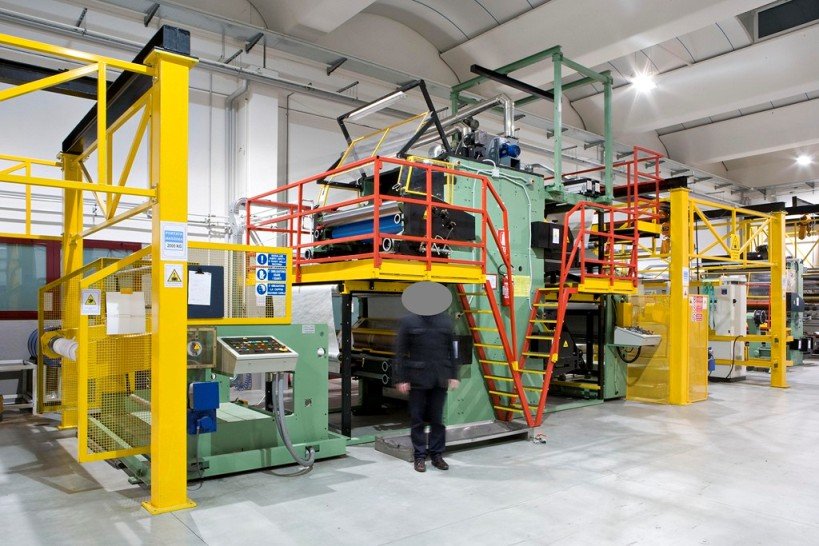

- SILICONE COATING MACHINE
- Año
- 1993
- Application
- Coating
- Type of lamination/coating
- SILICON COATING
- Working width (mm)
- 1700
- Speed
- neutral products: 160 m/min; printed 105 m/min.
- Max diameter reel unwinder
- 1700
- Max diameter reel rewinder
- 1000
- Coating unit
- dimensions coating head: machine trim 1700 mm, cylinders 1570 mm
- Drying
- UV curing
- Note
- flexo printing unit up to 3 colours (usable with printing sleeves or cliches). Cationic UV curing, manufacturer : VTI, power: 120 W /cm2, 2 lamps
| Código Máquina | LA121 |
| Constructor | CUSTOM MADE |
| Modello | SILICONE COATING MACHINE |
| Año | 1993 |
| Application | Coating |
| Type of lamination/coating | SILICON COATING |
| Working width (mm) | 1700 |
| Speed | neutral products: 160 m/min; printed 105 m/min. |
| Max diameter reel unwinder | 1700 |
| Max diameter reel rewinder | 1000 |
| Coating unit | dimensions coating head: machine trim 1700 mm, cylinders 1570 mm |
| Drying | UV curing |
| Note | flexo printing unit up to 3 colours (usable with printing sleeves or cliches). Cationic UV curing, manufacturer : VTI, power: 120 W /cm2, 2 lamps |
