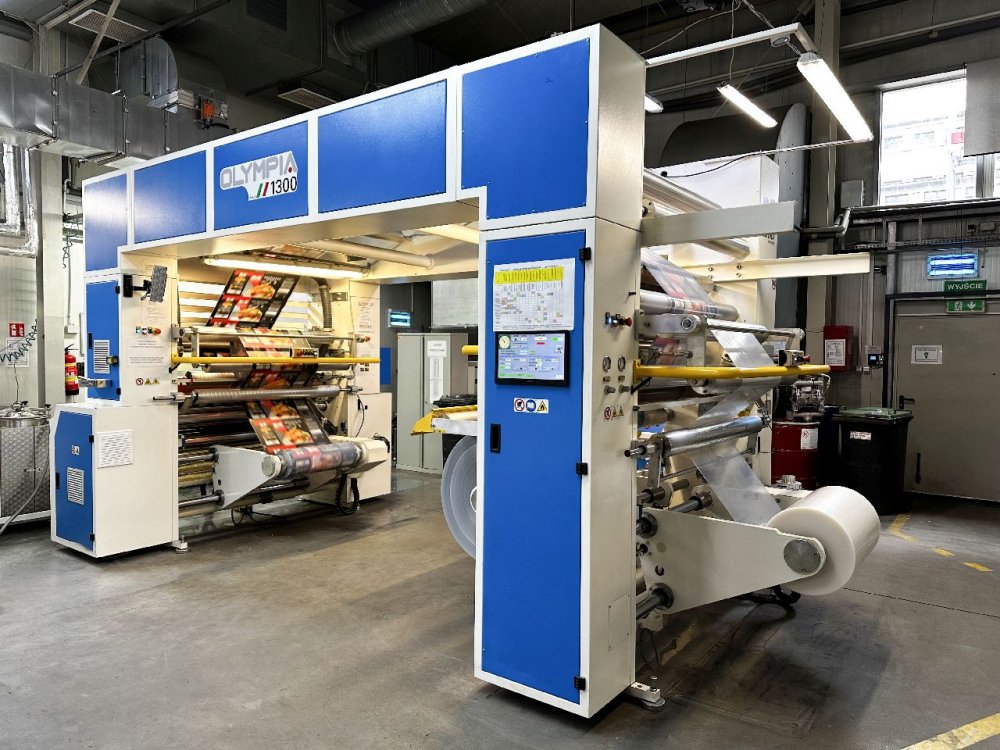

- Código Máquina
- LA448
- Constructor
- GENERAL CONVERTING MACHINES
- Modello

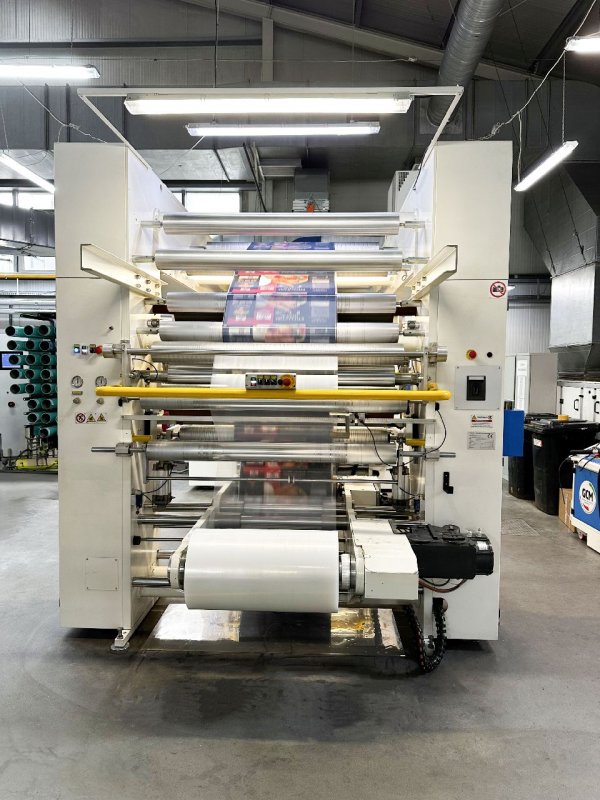

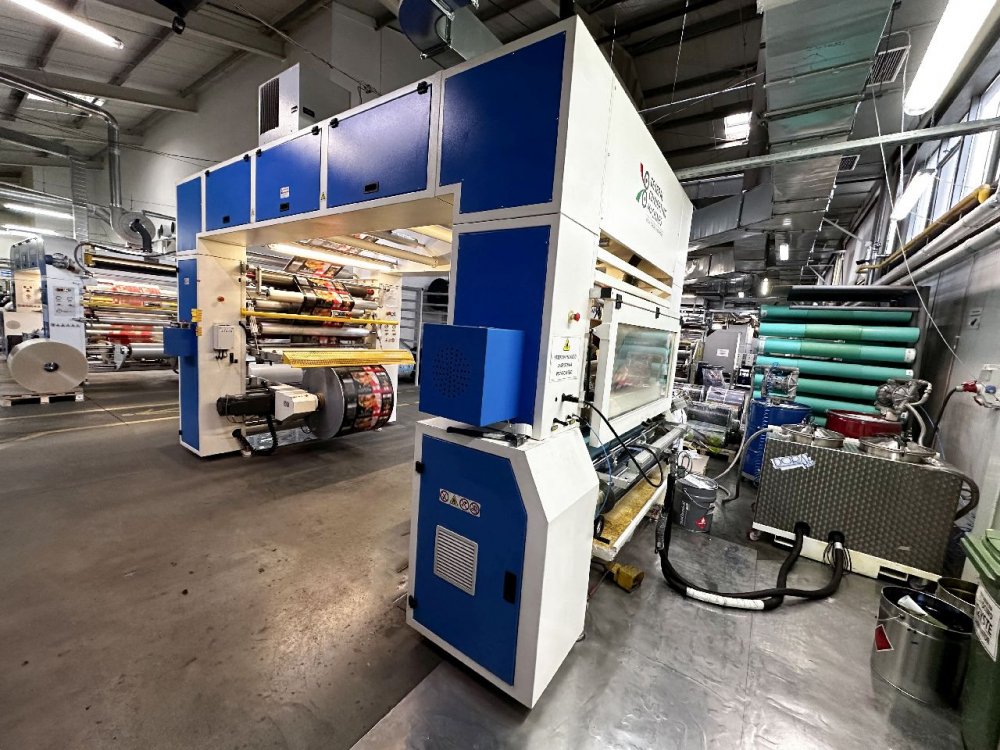

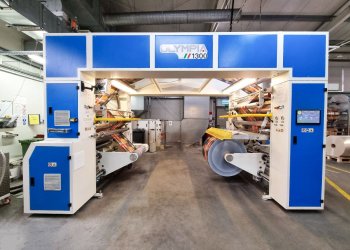

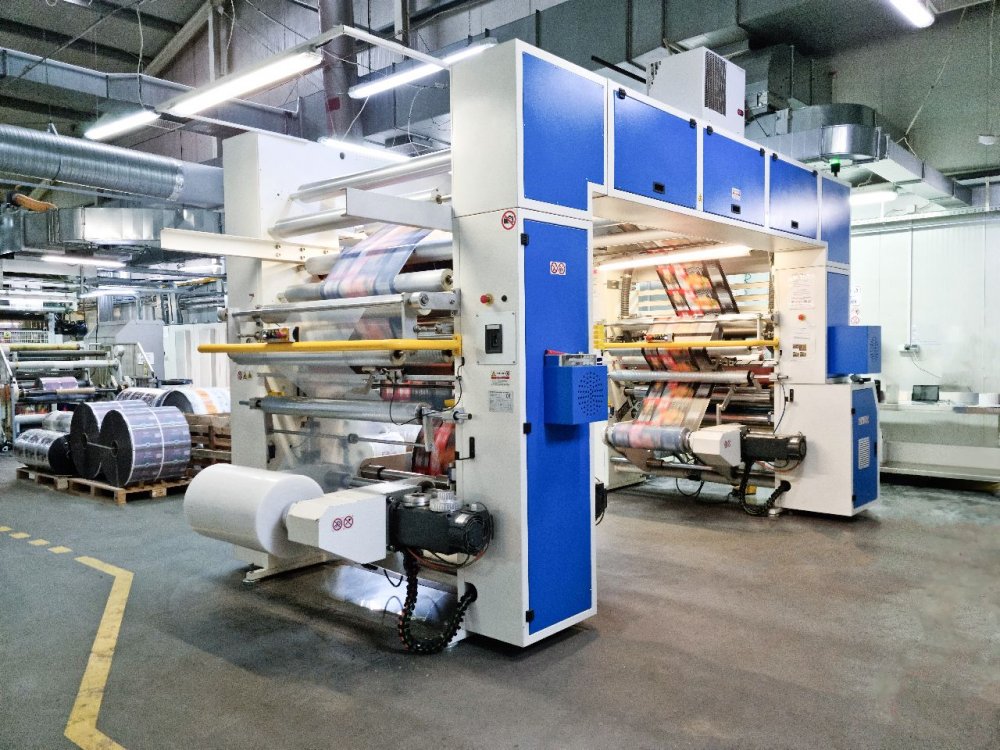

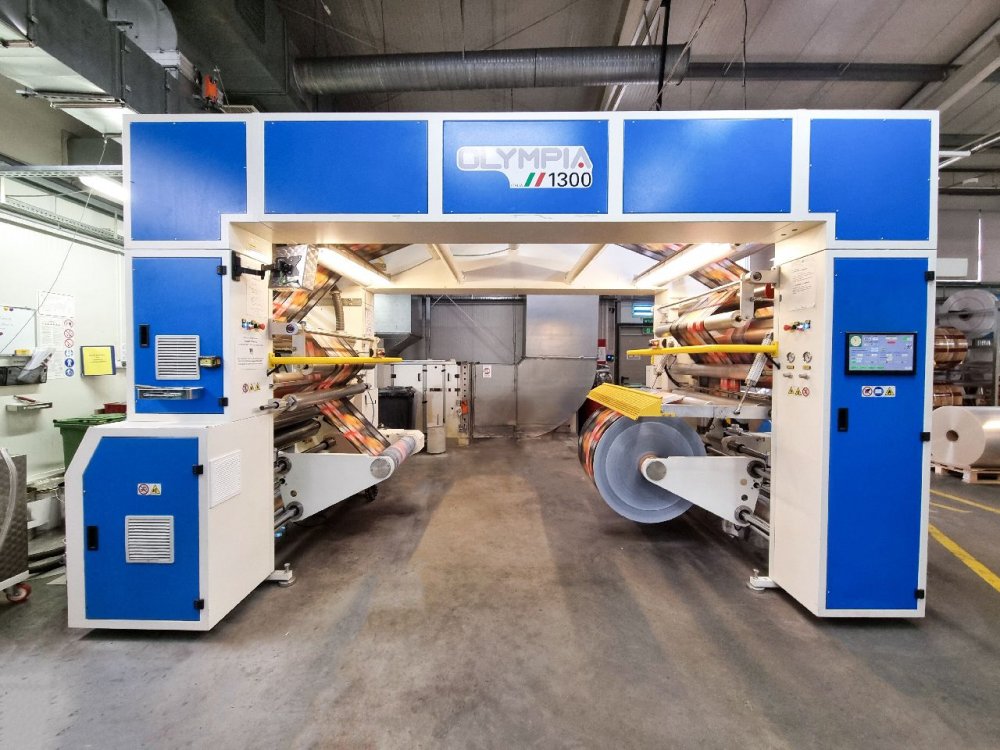

- Olympia 1300
- Año
- 2019
- Application
- Duplex lamination
- Type of lamination/coating
- SOLVENTLESS
- Working width (mm)
- 1300
- Materials
- PE, PP, PET, OPA, ALU FOIL, PAPER,PLA
- Speed
- 450m/min
- First unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 800
- Rewinder type
- Shaftless AC motor driven
- Max diameter reel rewinder
- 1000
- Coating unit
- 4 rolls type

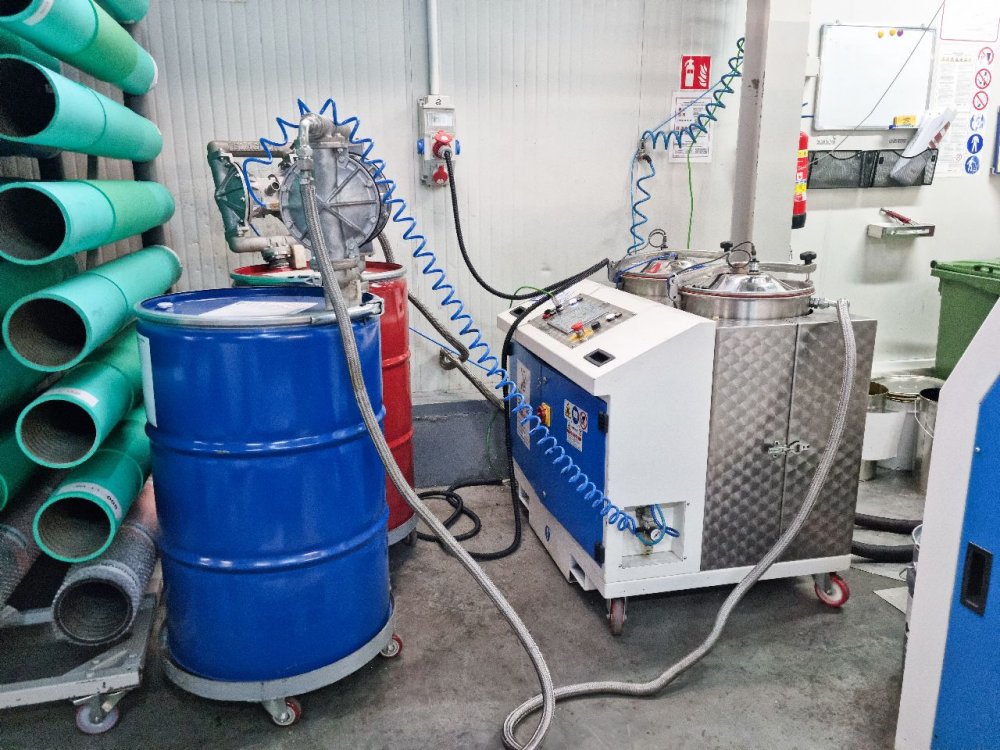

- pumping mixing unit
- 2 component solvetness mixer, 2019
- Note
- automatic glue deposition setting system Computer supervision : yes Independent motorisation for metering rollers, sleeve, coating and laminating nip. All systems are integrated on board : main cabinet. thermo-regulations, air conditioning. Sleeve system : quick change of work
Código Máquina | LA448 |
Constructor | GENERAL CONVERTING MACHINES |
Modello | Olympia 1300 |
Año | 2019 |
Application | Duplex lamination |
Type of lamination/coating | SOLVENTLESS |
Working width (mm) | 1300 |
Materials | PE, PP, PET, OPA, ALU FOIL, PAPER,PLA |
Speed | 450m/min |
First unwinder type | Shaftless AC motor driven |
Max diameter reel unwinder | 800 |
Secondary unwinder type | Shaftless AC motor driven |
Max diameter reel unwinder | 800 |
Rewinder type | Shaftless AC motor driven |
Max diameter reel rewinder | 1000 |
Coating unit | 4 rolls type |
pumping mixing unit | 2 component solvetness mixer, 2019 |
Note | automatic glue deposition setting system Computer supervision : yes Independent motorisation for metering rollers, sleeve, coating and laminating nip. All systems are integrated on board : main cabinet. thermo-regulations, air conditioning. Sleeve system : quick change of work |
