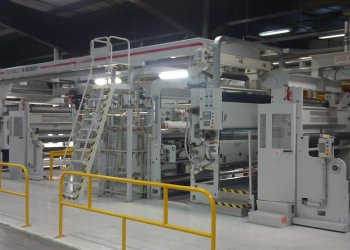

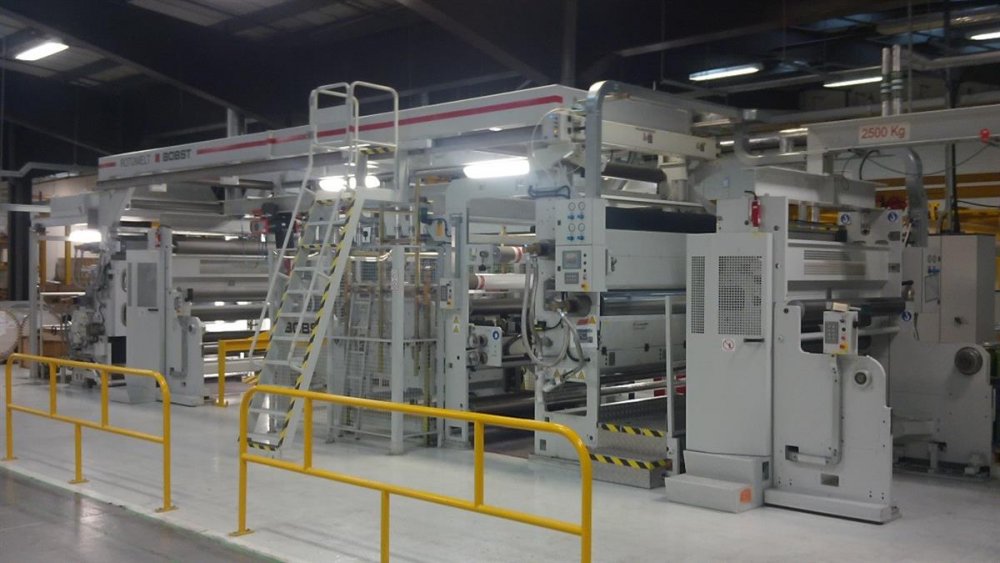

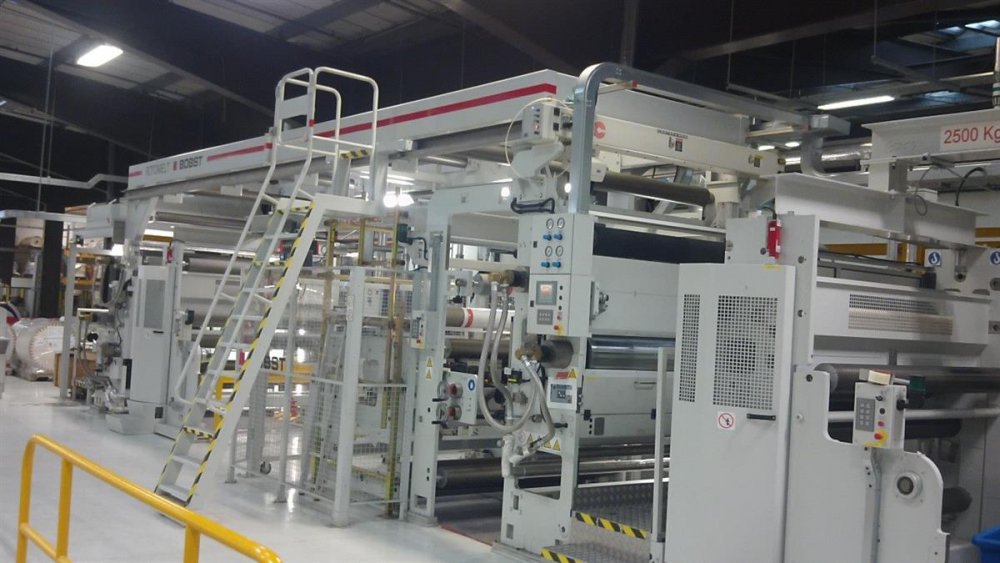

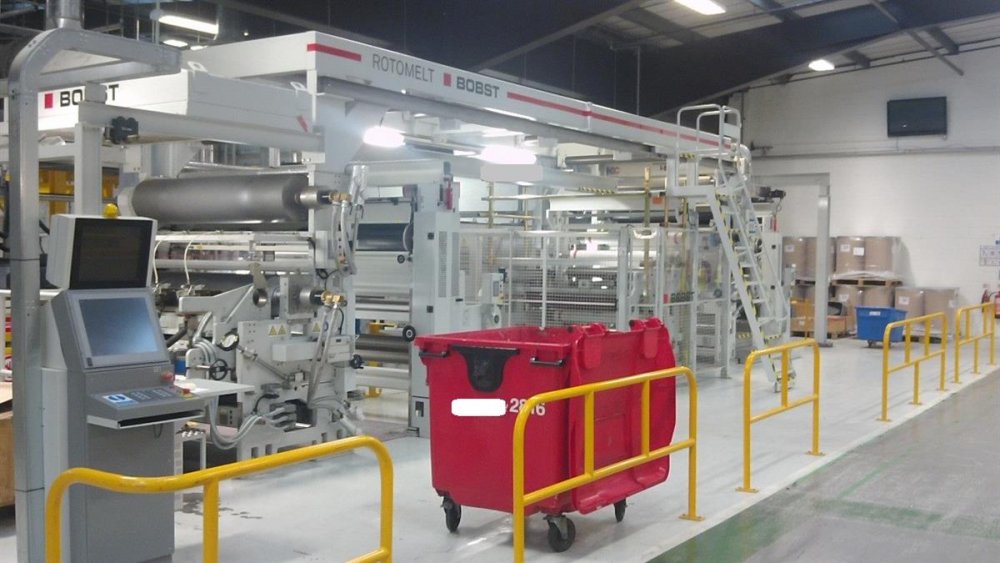

- Código Máquina
- LA291
- Constructor
- BOBST ROTOMEC
- Modello
- Rotomelt 1650-200
- Año
- 2014
- Application
- Lamination + coating
- Type of lamination/coating
- HOT MELT
- Working width (mm)
- 1600
- Speed
- 200m/min run speed
- Max diameter reel unwinder
- 1000
- Max diameter reel unwinder
- 1000
- Max diameter reel rewinder
- 1000
- Coating unit

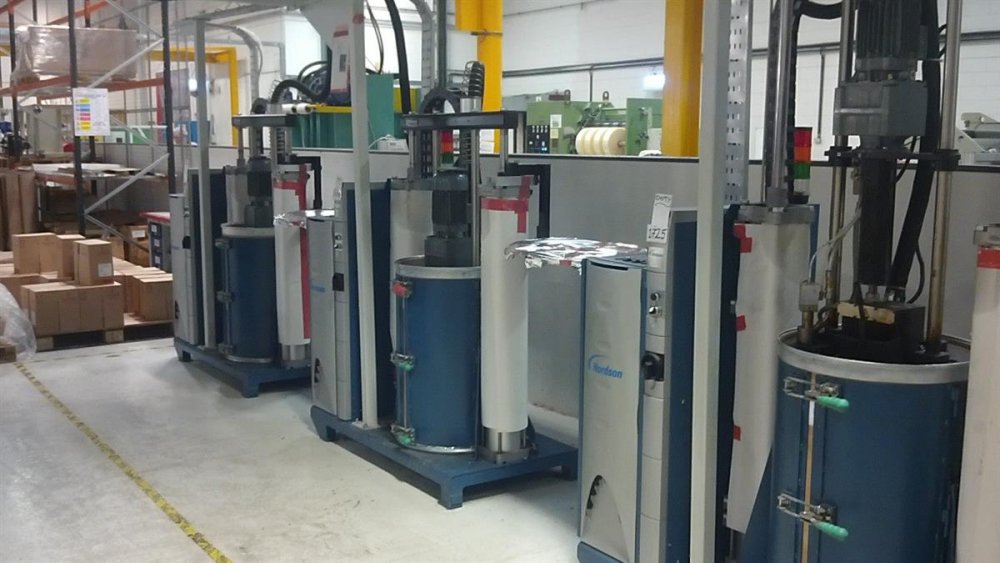

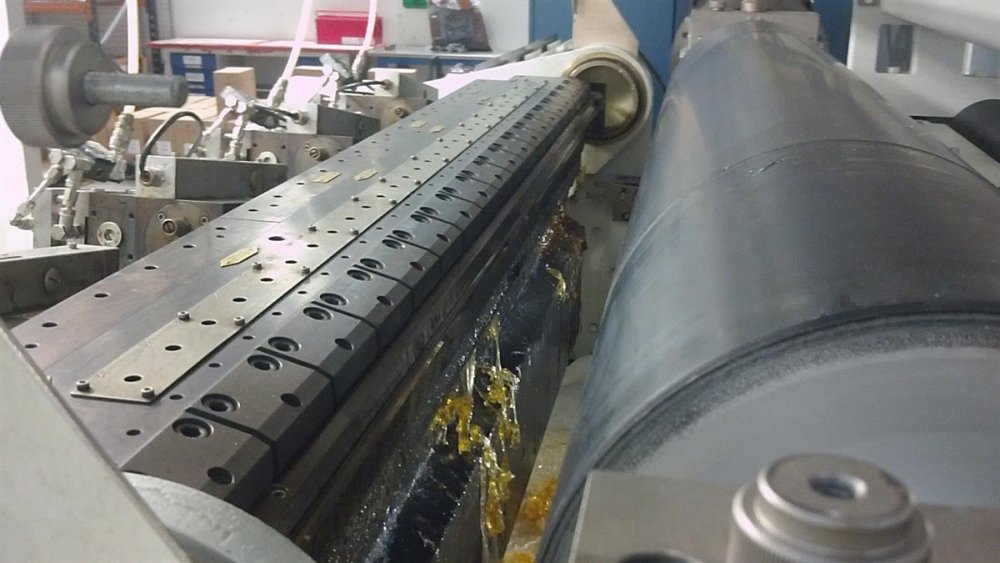

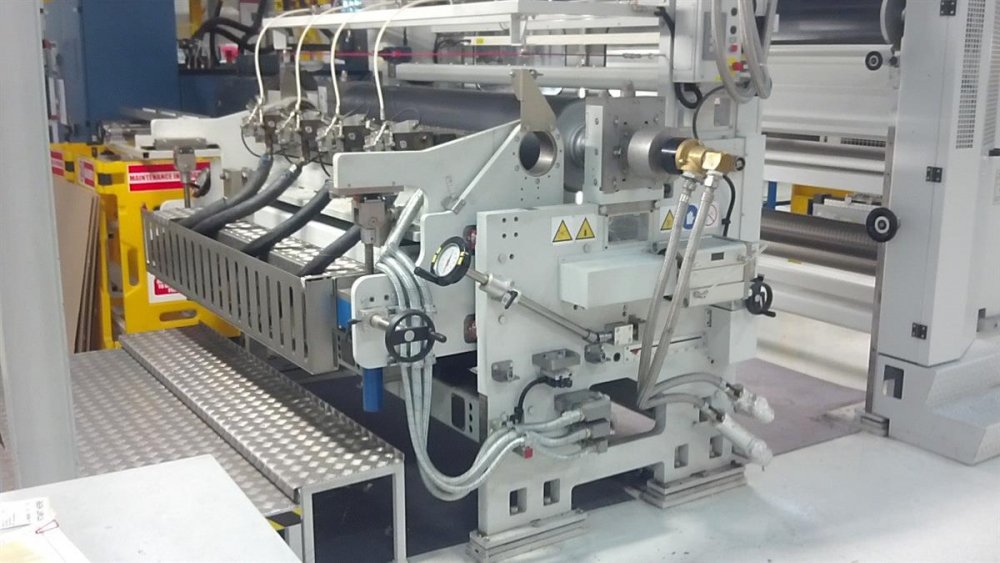

- Slot die coating head with Nordson adhesive system, Coating head, 2x cooling drums (water) 290mm diameter for the uncoated side of the web, Spreader roller, 1x trolley for nozzle change support , Max flow rate of coating head 550kg/hour
- Note
- BST web guide 2x Shafted type (3”) unwinds 900-1650mm web width range NDC gauge (IR type) for reading surface thickness Hoist for reel loading and unloading. 400v, 50hz, 3 phase required
| Código Máquina | LA291 |
| Constructor | BOBST ROTOMEC |
| Modello | Rotomelt 1650-200 |
| Año | 2014 |
| Application | Lamination + coating |
| Type of lamination/coating | HOT MELT |
| Working width (mm) | 1600 |
| Speed | 200m/min run speed |
| Max diameter reel unwinder | 1000 |
| Max diameter reel unwinder | 1000 |
| Max diameter reel rewinder | 1000 |
| Coating unit | Slot die coating head with Nordson adhesive system, Coating head, 2x cooling drums (water) 290mm diameter for the uncoated side of the web, Spreader roller, 1x trolley for nozzle change support , Max flow rate of coating head 550kg/hour |
| Note | BST web guide 2x Shafted type (3”) unwinds 900-1650mm web width range NDC gauge (IR type) for reading surface thickness Hoist for reel loading and unloading. 400v, 50hz, 3 phase required |
