- Código Máquina
- LA356
- Constructor
- MB

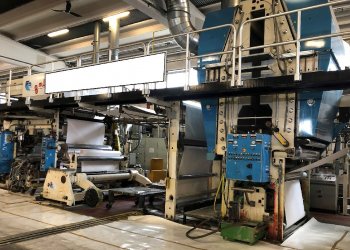

- Modello
- HOT MELT, WAX COATER LAMINATOR
- Año
- 2002
- Application
- Lamination + coating
- Type of lamination/coating
- HOT MELT
- Working width (mm)
- 1700
- Materials
- Paper and board, Film and Alu foil ( secondary unwi)
- Speed
- 400 mpm
- First unwinder type
- Single position shaftless double brake for paper and board
- Max diameter reel unwinder
- 1900
- Secondary unwinder type
- Single position shaftles for film and Al foil
- Max diameter reel unwinder
- 1000
- Rewinder type
- Surface driven shaftless
- Max diameter reel rewinder
- 1900
- Coating unit
- Trolley based with Wax - Hot melt trolley and Semi flexo trolley
- Second Coating unitr
- Gravure for Primer coating
- Drying
- 3 meter tunnel with one blowing and one exhaus fan and one gas burner for lamination unit with semiflexo trolley . Primer Gravure unit is equippe d with double hood eac 3 mt length 18 blowing air slots, 2 blowing fabns , one exhaust fan , two gas burners and automatic recirculation unoit and NIRA LEL control
- pumping mixing unit
- Prmelting unot Nordson for Wax coating
- Coating rollers
- 6 anilox rollers and 40 sleeves for gravure coating nip roll
- Note
- Possible operation 1) Wax Coating laminating Paper - Alu foil or paper film and primer in line 2) Wax paper coating one side or doiuble side 3) Hot melt coating 4) Water based lamination wet bond paper -Alu foil with semiflexo trolley and primer in line
| Código Máquina | LA356 |
| Constructor | MB |
| Modello | HOT MELT, WAX COATER LAMINATOR |
| Año | 2002 |
| Application | Lamination + coating |
| Type of lamination/coating | HOT MELT |
| Working width (mm) | 1700 |
| Materials | Paper and board, Film and Alu foil ( secondary unwi) |
| Speed | 400 mpm |
| First unwinder type | Single position shaftless double brake for paper and board |
| Max diameter reel unwinder | 1900 |
| Secondary unwinder type | Single position shaftles for film and Al foil |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Surface driven shaftless |
| Max diameter reel rewinder | 1900 |
| Coating unit | Trolley based with Wax - Hot melt trolley and Semi flexo trolley |
| Second Coating unitr | Gravure for Primer coating |
| Drying | 3 meter tunnel with one blowing and one exhaus fan and one gas burner for lamination unit with semiflexo trolley . Primer Gravure unit is equippe d with double hood eac 3 mt length 18 blowing air slots, 2 blowing fabns , one exhaust fan , two gas burners and automatic recirculation unoit and NIRA LEL control |
| pumping mixing unit | Prmelting unot Nordson for Wax coating |
| Coating rollers | 6 anilox rollers and 40 sleeves for gravure coating nip roll |
| Note | Possible operation 1) Wax Coating laminating Paper - Alu foil or paper film and primer in line 2) Wax paper coating one side or doiuble side 3) Hot melt coating 4) Water based lamination wet bond paper -Alu foil with semiflexo trolley and primer in line |
