- Código Máquina
- EC33
- Constructor

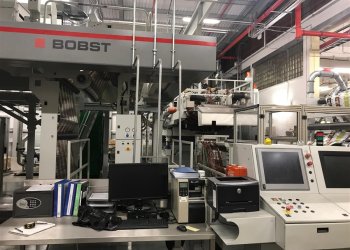

- BOBST ROTOMEC
- Modello
- 700F
- Año
- 2015
- Width (mm)
- 2000
- Coating/lamination units
- 2
- Coating/lamination unit 1 description
- Rotogravure coating unit. Horizontal drying tunnel with 3 drying hoods with indepentent temperature controll and ventilation; 6 fans 3 heaters
- Coating/lamination unit 2 description
- Extrusion lamination unit Make Reifenhauser 1x extruder 120mm screw diam; 30L/D; 4 components gravimetric dosing unit Doteco; AC motor SIEMENS 1x extruder 100mm screw diam; 30L/D; 4 components gravimetric dosing unit Doteco; AC motor SIEMENS Dies with Automatic thicknes controll via flex lip and thermobolts; Internal deckling system. Max die width 2200mm and possibility to reduce width using via internal deckling system Chill roll diam 800mm Thicknesss gauge make NDC
- Treatment
- Corona treatment
- Primary unwinder description
- Turret shaftless
- Secondary unwinder description
- Turret shaftless
- Rewinder description
- Turret shaftless
- Speed
- Maximum speed 750m/min
Código Máquina | EC33 |
Constructor | BOBST ROTOMEC |
Modello | 700F |
Año | 2015 |
Width (mm) | 2000 |
Coating/lamination units | 2 |
Coating/lamination unit 1 description | Rotogravure coating unit. Horizontal drying tunnel with 3 drying hoods with indepentent temperature controll and ventilation; 6 fans 3 heaters |
Coating/lamination unit 2 description | Extrusion lamination unit Make Reifenhauser 1x extruder 120mm screw diam; 30L/D; 4 components gravimetric dosing unit Doteco; AC motor SIEMENS 1x extruder 100mm screw diam; 30L/D; 4 components gravimetric dosing unit Doteco; AC motor SIEMENS Dies with Automatic thicknes controll via flex lip and thermobolts; Internal deckling system. Max die width 2200mm and possibility to reduce width using via internal deckling system Chill roll diam 800mm Thicknesss gauge make NDC |
Treatment | Corona treatment |
Primary unwinder description | Turret shaftless |
Secondary unwinder description | Turret shaftless |
Rewinder description | Turret shaftless |
Speed | Maximum speed 750m/min |
KUHNE/ SML
-
Código Máquina: EC48
-
Año: 2006
-
Width (mm): 1180
SML - STARLINGER
-
Código Máquina: EC40
-
Año: 2000
-
Width (mm): 1550
HAN YOUNG extrusion lamination
-
Código Máquina: EC31
-
Año: 2001
-
Width (mm): 1500
HAN YOUNG Extrusion lamination
-
Código Máquina: EC32
-
Año: 2005
-
Width (mm): 2200
S.A.M.
-
Código Máquina: EC45
-
Año: 2011
-
Width (mm): 1450
