3 capas MACCHI Extrusora de film

Código Máquina
EX688
Constructor
MACCHI
Año
2015
Number of layers
3
Film structure
ABC
Material
LDPE, LLDPE, MDPE, HDPE (in blends)
Film Width
2100
Output (Kg/h)
600

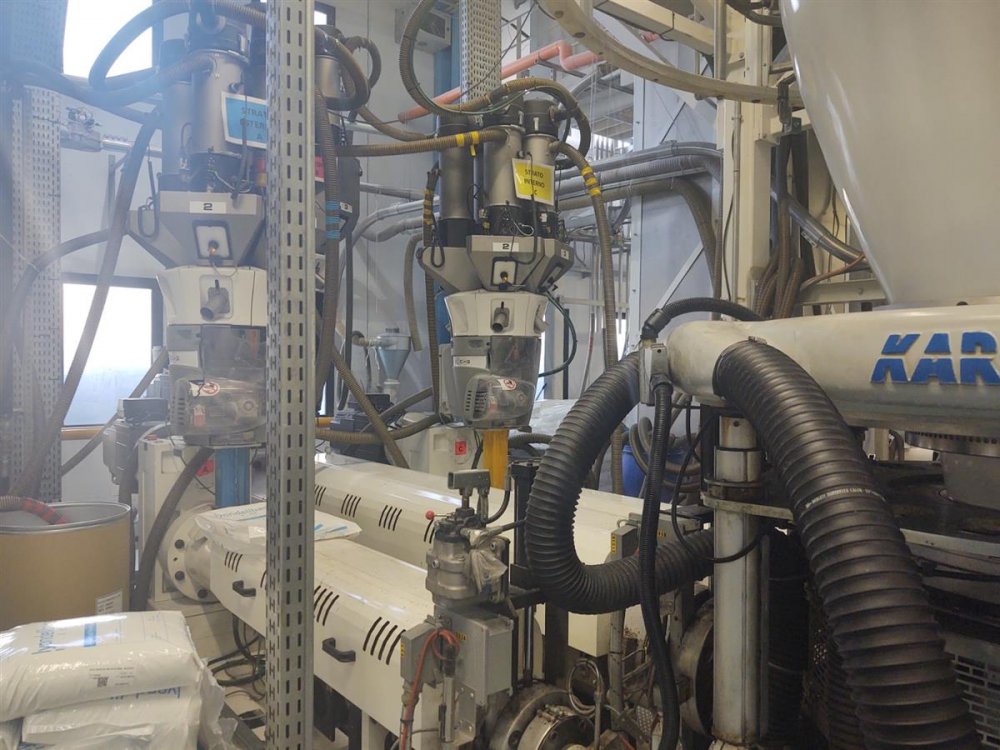

Extruder 1 Layer ref:
A
Screw diam 1
65mm
Description 1

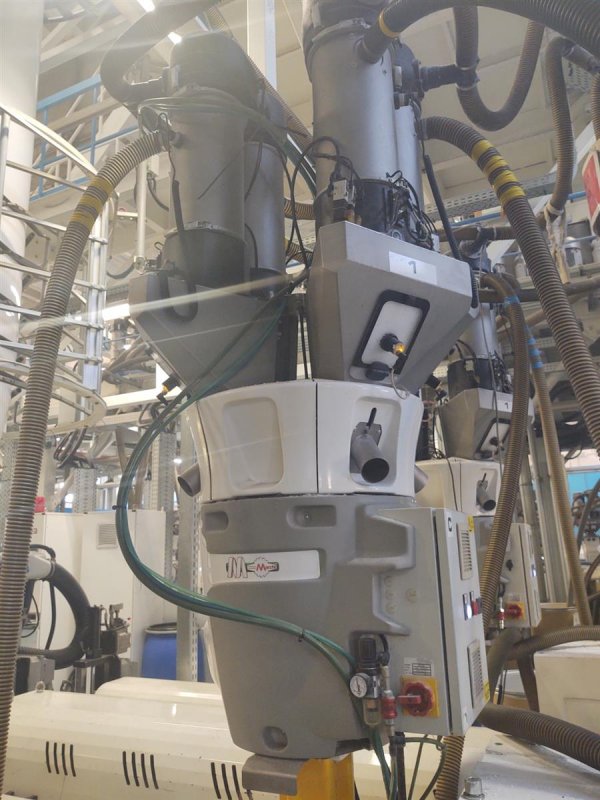

L/D30; Screw rpm: 0-170; AC motor 86KW, 4 heating zones, leverage screen changer, Gravimetric mixer 4 componentsDOTECO type Adroit with resin vacuum loaders
Extruder 2 Layer ref:
B
Screw diam 2
105mm
Description 2
L/D 30; Screw rpm: 0-110; AC motor 180KW, 5 heating zones, leverage screen changer, Gravimetric mixer 4 components DOTECO type Adroit with resin vacuum loaders
Extruder 3 Layer ref:
C
Screw diam 3
65mm
Description 3
L/D 30; Screw rpm: 0-170; AC motor 86KW, 4 heating zones, leverage screen changer, Gravimetric mixer 4 components DOTECO type Adroit with resin vacuum loaders

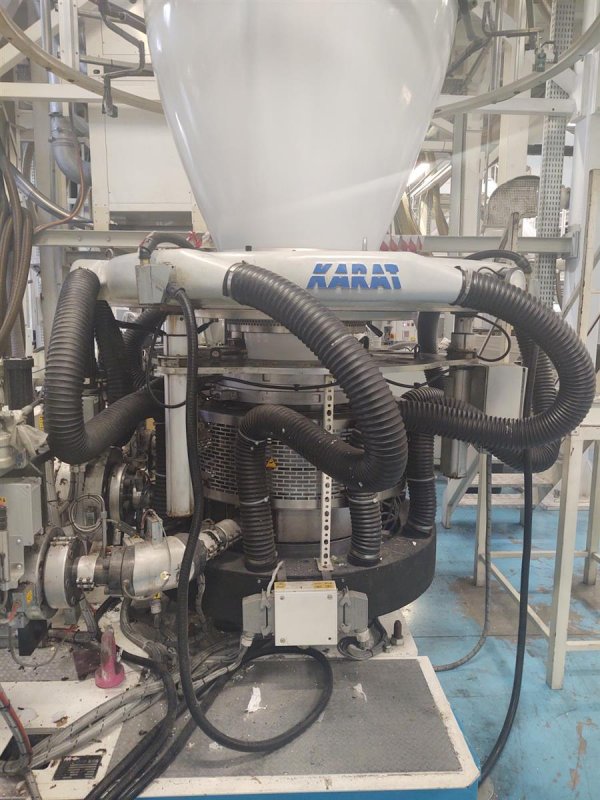

Head description

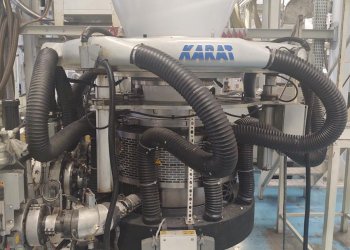

Extrusion head Coex flex, dierange possibility 350-500mm Automatci air rink KARAT COM 3 with automatic thickness profile control; IBC JET 7 ultrasonic control 2 fans 18KW each
Die diam (mm)
400mm diam; 1,2mm gap

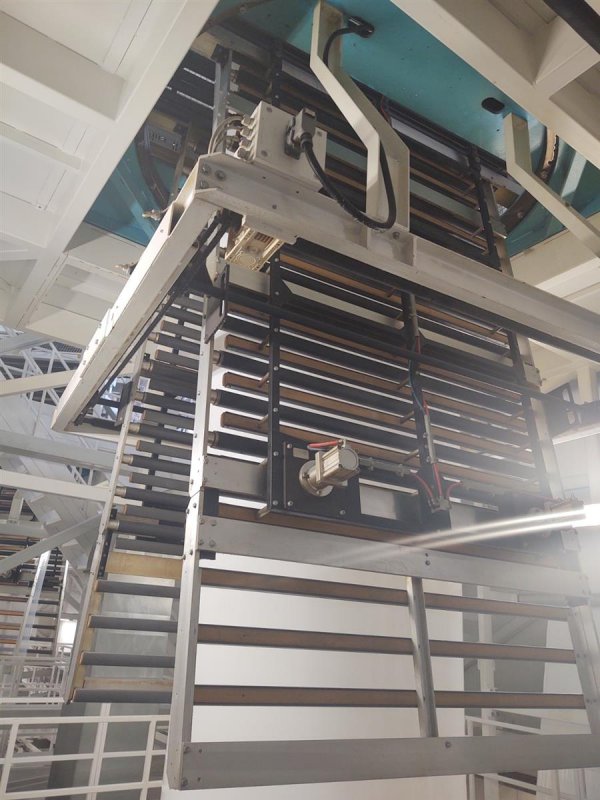

Bubble cage
4 Ultrasonic sensor for diameter, sensor for bouble breaks; bouble cage non marking 5+2 levels 8 arms each

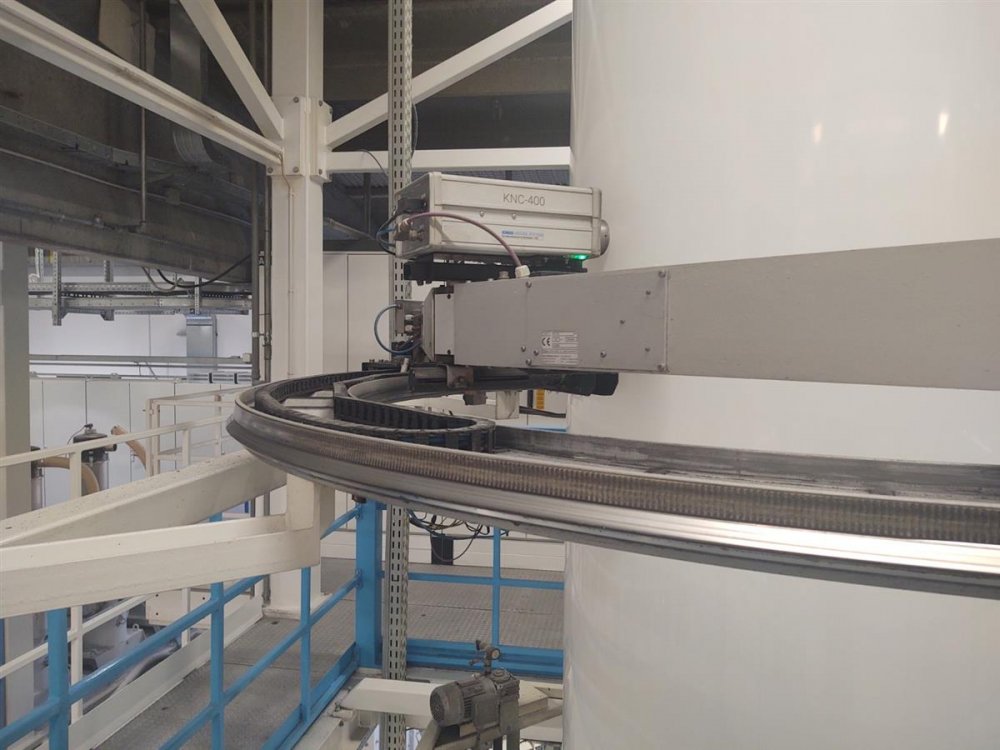

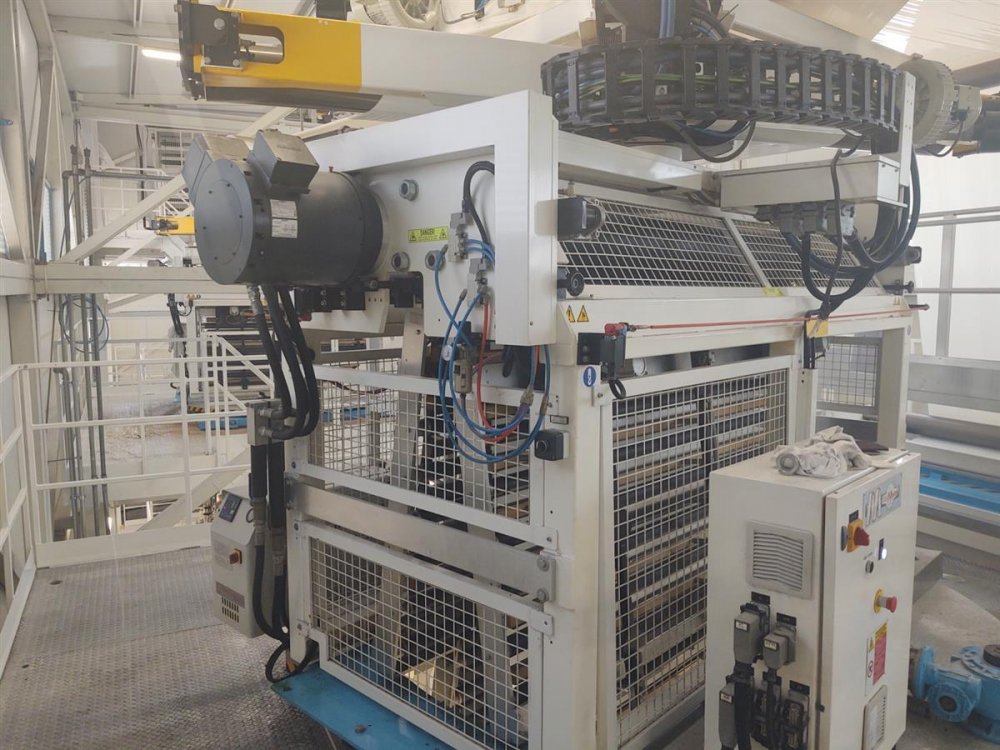

Take off unit
Rotating 360 deg, cylinder width 2200mm, web width 2100mm, collapsing panels either with carbon fiber rollers or with wooden bars, double S shape cooling calander;
Corona treatment
CASON
Web guide
E+L

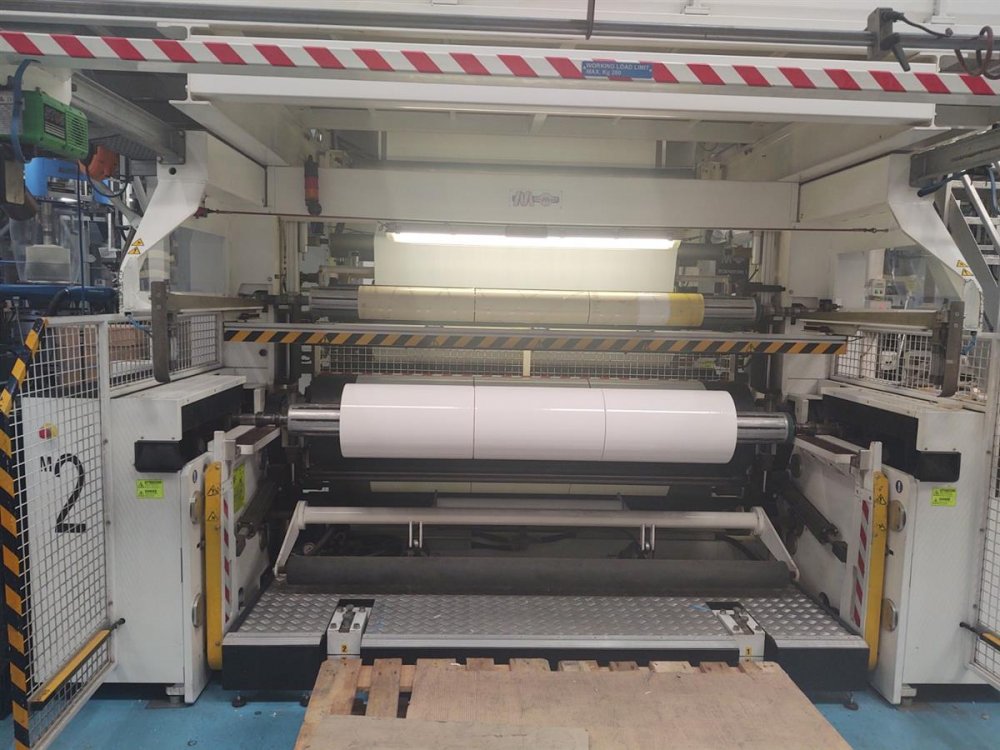

Rewinder Type
Double back to back
Rewinder max reel diameter
1200mm
Rewinder description
Type BO-PLUS, possibility of reverse winding (both direction winding) with Easy load; in line slitting, laser for cores position, , Antistatic bar SIMCO, 76 mm shafts in steel, 152mm shafts in alluminum
Note

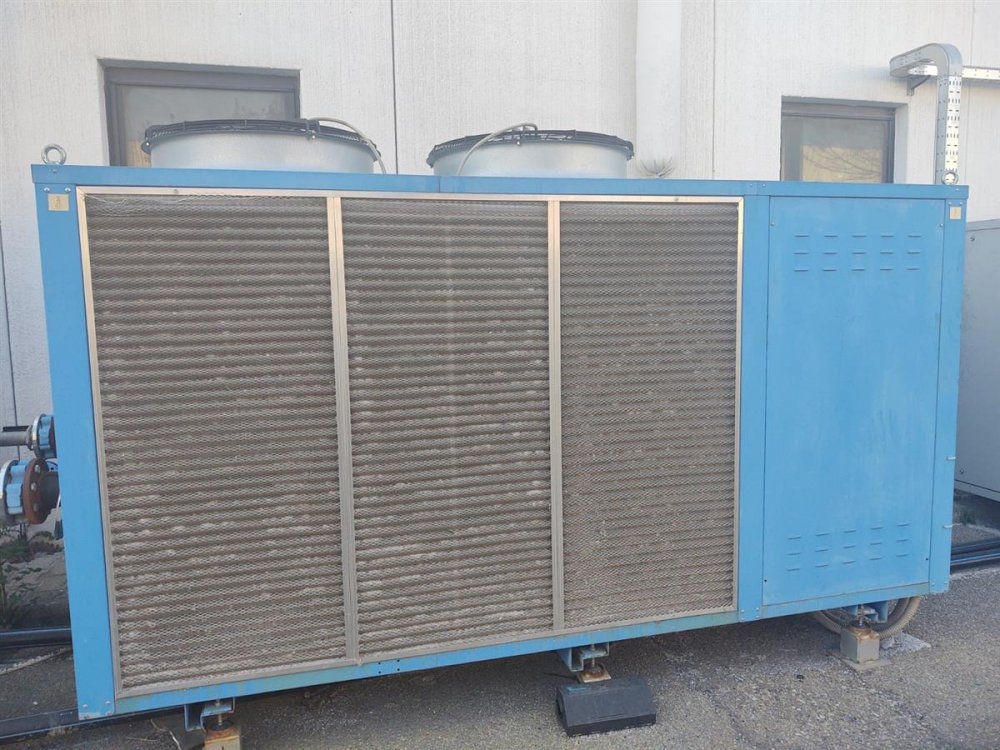

Mechanical speed: 7-150 m/min Tower included, height approx 15m Pulling calender between take off and winder Chiller included
Código Máquina EX688
Constructor MACCHI
Año 2015
Number of layers 3
Film structure ABC
Material LDPE, LLDPE, MDPE, HDPE (in blends)
Film Width 2100
Output (Kg/h) 600
Extruder 1 Layer ref: A
Screw diam 1 65mm
Description 1 L/D30; Screw rpm: 0-170; AC motor 86KW, 4 heating zones, leverage screen changer, Gravimetric mixer 4 componentsDOTECO type Adroit with resin vacuum loaders
Extruder 2 Layer ref: B
Screw diam 2 105mm
Description 2 L/D 30; Screw rpm: 0-110; AC motor 180KW, 5 heating zones, leverage screen changer, Gravimetric mixer 4 components DOTECO type Adroit with resin vacuum loaders
Extruder 3 Layer ref: C
Screw diam 3 65mm
Description 3 L/D 30; Screw rpm: 0-170; AC motor 86KW, 4 heating zones, leverage screen changer, Gravimetric mixer 4 components DOTECO type Adroit with resin vacuum loaders
Head description Extrusion head Coex flex, dierange possibility 350-500mm Automatci air rink KARAT COM 3 with automatic thickness profile control; IBC JET 7 ultrasonic control 2 fans 18KW each
Die diam (mm) 400mm diam; 1,2mm gap
Bubble cage 4 Ultrasonic sensor for diameter, sensor for bouble breaks; bouble cage non marking 5+2 levels 8 arms each
Take off unit Rotating 360 deg, cylinder width 2200mm, web width 2100mm, collapsing panels either with carbon fiber rollers or with wooden bars, double S shape cooling calander;
Corona treatment CASON
Web guide E+L
Rewinder Type Double back to back
Rewinder max reel diameter 1200mm
Rewinder description Type BO-PLUS, possibility of reverse winding (both direction winding) with Easy load; in line slitting, laser for cores position, , Antistatic bar SIMCO, 76 mm shafts in steel, 152mm shafts in alluminum
Note Mechanical speed: 7-150 m/min Tower included, height approx 15m Pulling calender between take off and winder Chiller included
** SOLD **
