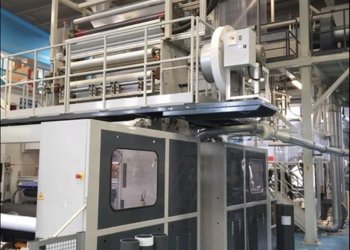

- Código Máquina
- EX616
- Constructor
- BANDERA
- Modello
- TECHNOFLEX
- Año
- 2015
- Number of layers
- 3
- Film structure
- ABC
- Material
- STRETCH ,LLDPE, LDPE, EVA, mLLDPE
- Film Width
- 1700
- Output (Kg/h)
- Max production: Stretch hood with 280 mm die plate: 450 kg/h ;Shrink or lamination film with 400 mm die plate: 600 kg/h

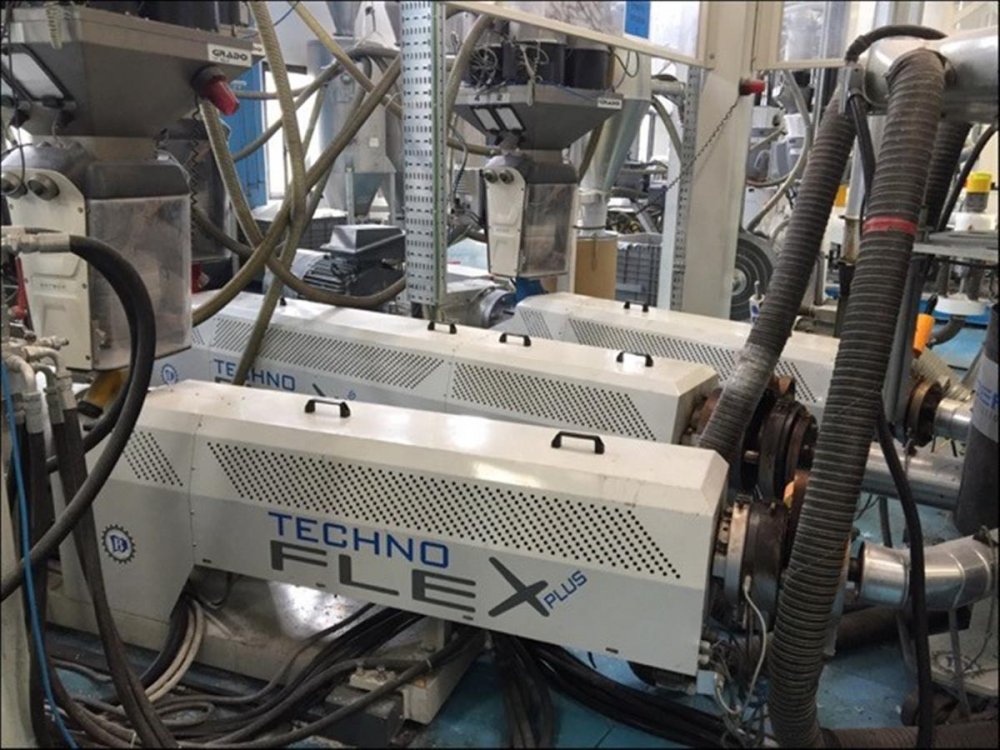

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 60MM
- Description 1
- 30D ,3 gravimetric batch dosing units 4 components
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 100MM
- Description 2
- 30D ,3 gravimetric batch dosing units 4 components
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 60MM
- Description 3
- 30D ,3 gravimetric batch dosing units 4 components
- Head description
- IBC ,,Air Ring Karat 3 Com with high adjustment
- Die diam (mm)
- 280 and 400 mm
- Thickness controll system
- Automatic thickness control system Kundig
- Panel for gussets
- Gusseting
- Take off unit
- Rotating haul off with gusseting device
- Corona treatment
- Corona treatment Cason for both sides
- Web guide
- Web guide 1800 mm
- Rewinder description
- Double automatic rewinder TW 1800
- Note
- Line to produce stretch hood, lamination film and shrink film Manual screen changers Motorized calibration basket Automatic core loading system SAFE LOAD Antistatic bars Chiller ABF Tower Thickness 20-200 my
| Código Máquina | EX616 |
| Constructor | BANDERA |
| Modello | TECHNOFLEX |
| Año | 2015 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | STRETCH ,LLDPE, LDPE, EVA, mLLDPE |
| Film Width | 1700 |
| Output (Kg/h) | Max production: Stretch hood with 280 mm die plate: 450 kg/h ;Shrink or lamination film with 400 mm die plate: 600 kg/h |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 60MM |
| Description 1 | 30D ,3 gravimetric batch dosing units 4 components |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 100MM |
| Description 2 | 30D ,3 gravimetric batch dosing units 4 components |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 60MM |
| Description 3 | 30D ,3 gravimetric batch dosing units 4 components |

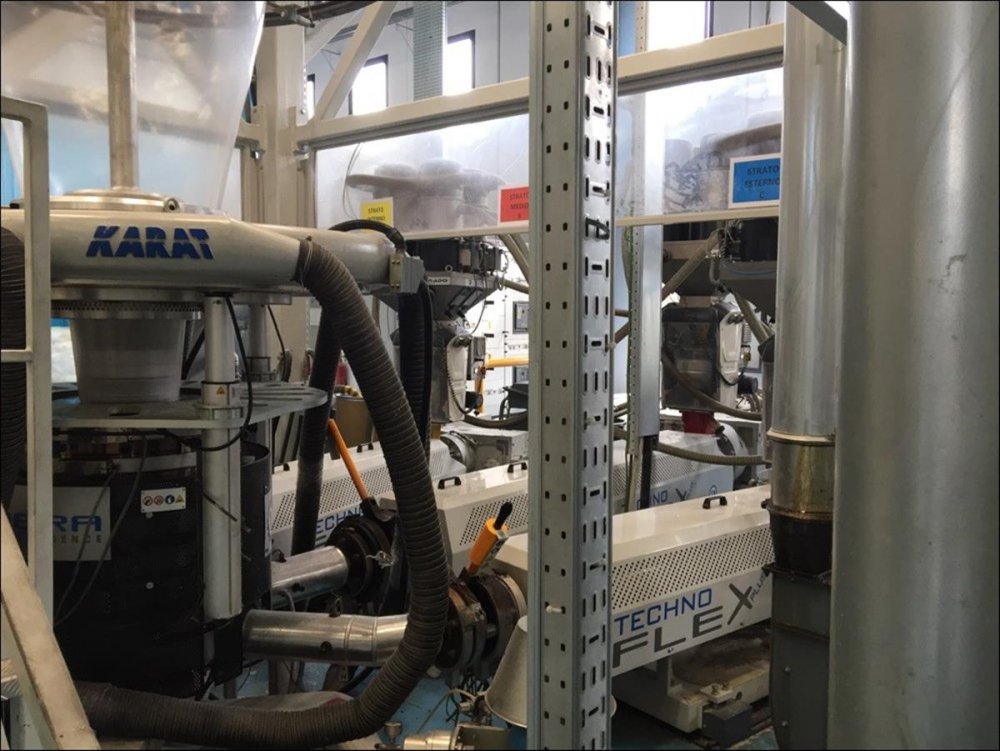

| Head description | IBC ,,Air Ring Karat 3 Com with high adjustment |
| Die diam (mm) | 280 and 400 mm |
| Thickness controll system | Automatic thickness control system Kundig |
| Panel for gussets | Gusseting |
| Take off unit | Rotating haul off with gusseting device |
| Corona treatment | Corona treatment Cason for both sides |
| Web guide | Web guide 1800 mm |

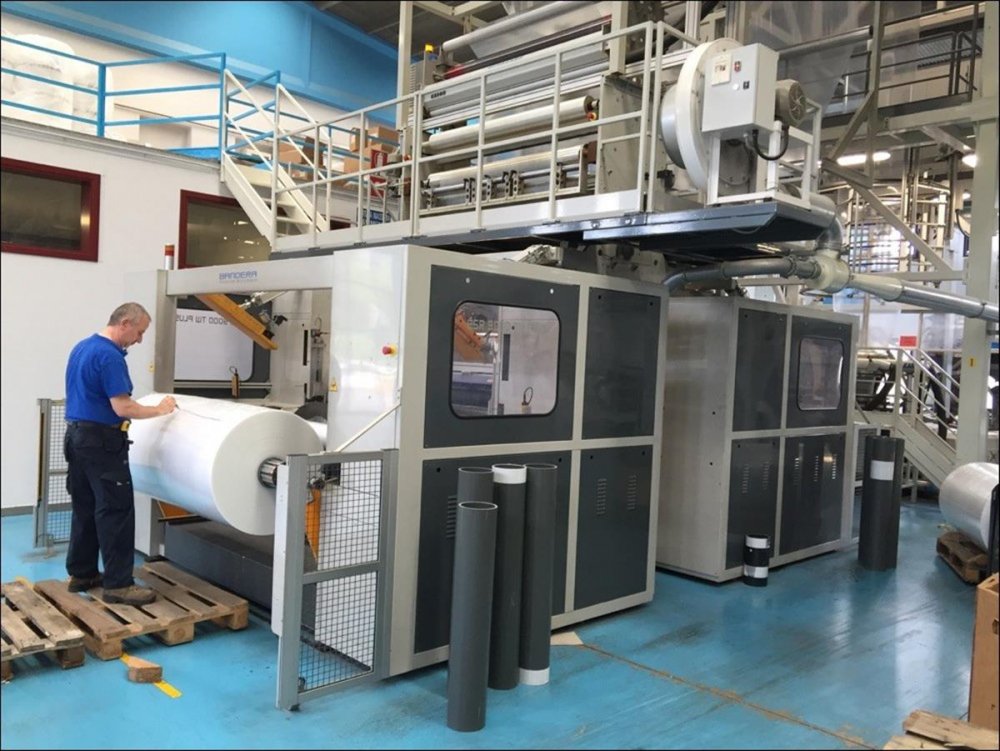

| Rewinder description | Double automatic rewinder TW 1800 |
| Note | Line to produce stretch hood, lamination film and shrink film Manual screen changers Motorized calibration basket Automatic core loading system SAFE LOAD Antistatic bars Chiller ABF Tower Thickness 20-200 my |
