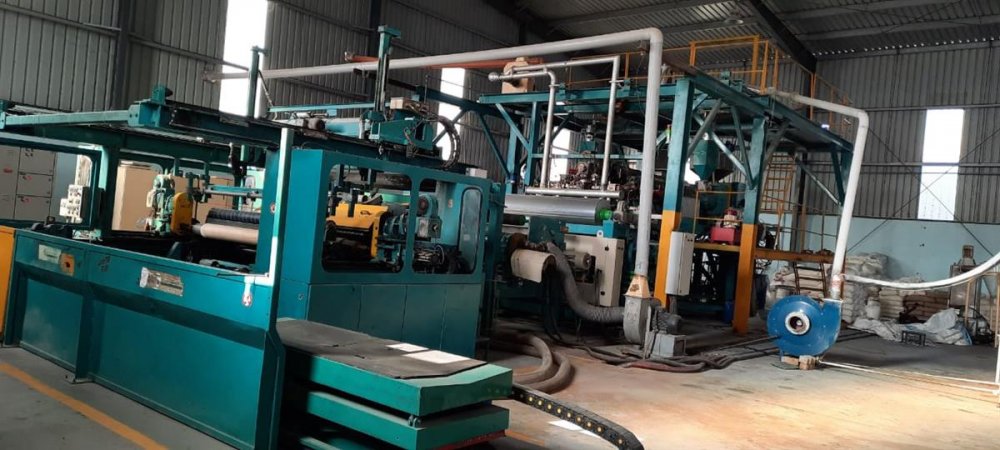

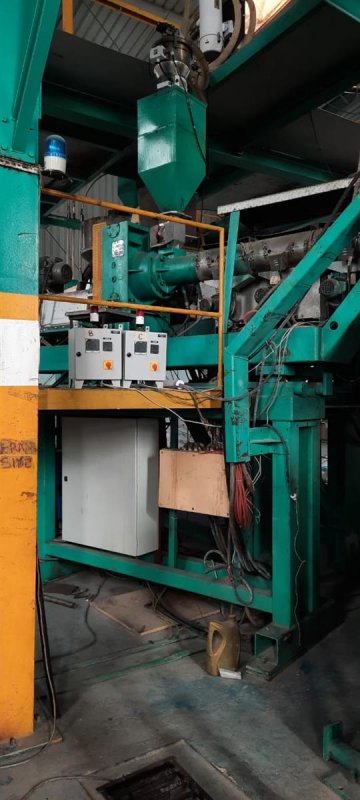

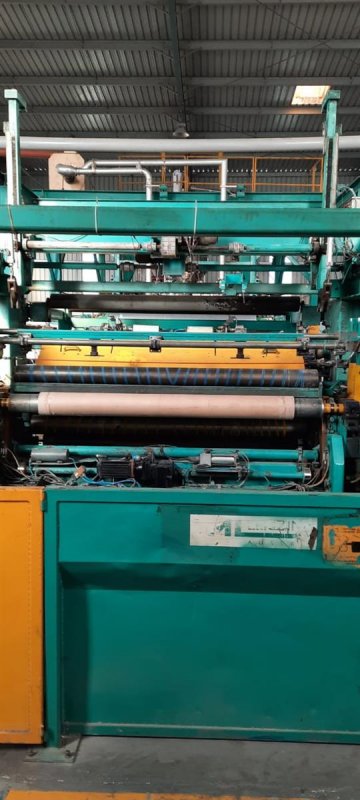

- Código Máquina
- CA244
- Constructor
- SML
- Año
- 1997
- Number of layers
- 5
- Overhaul/renovation
- 2017 PLC upgraded
- Film structure
- BAAAC
- Material
- CPP and stretch film
- Film width (mm)
- 2000
- Speed (m/min)
- 350 mpm
- Output (Kg/h)
- Output 16-20 mt p day from 18 micron to 200 micron range
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 90mm
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 150mm
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 90mm
- Head description
- 2 extruder dies 1 for CPP and one for PE . ( Auto die of Cloeren USA with Cloeren feed block US . 1 spare die also available for cpe and cpp changeover )
- Thickness controll system
- yes
- Rewinder description
- Automatic with robotic loading and unloading system
- Note
- PLC Siemens make s 1300 – 2017 upgraded to simatic s7-1500 Slitter rewinder system from Sunny Machinery China 2019 model 2500 mm new 650 mpm additional available with this machine Auto gauge control upgrade with jasch in 2018 Mirror finish chill roll and steel roller Include utility- 12. Spare like drive , heaters , selector plug and other lots of spare available will provided with machine. All electric and machine manual and backup Chiller 80 tr /40 tr ( two unit )
| Código Máquina | CA244 |
| Constructor | SML |
| Año | 1997 |
| Number of layers | 5 |
| Overhaul/renovation | 2017 PLC upgraded |
| Film structure | BAAAC |
| Material | CPP and stretch film |
| Film width (mm) | 2000 |
| Speed (m/min) | 350 mpm |
| Output (Kg/h) | Output 16-20 mt p day from 18 micron to 200 micron range |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 90mm |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 150mm |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 90mm |
| Head description | 2 extruder dies 1 for CPP and one for PE . ( Auto die of Cloeren USA with Cloeren feed block US . 1 spare die also available for cpe and cpp changeover ) |
| Thickness controll system | yes |
| Rewinder description | Automatic with robotic loading and unloading system |
| Note | PLC Siemens make s 1300 – 2017 upgraded to simatic s7-1500 Slitter rewinder system from Sunny Machinery China 2019 model 2500 mm new 650 mpm additional available with this machine Auto gauge control upgrade with jasch in 2018 Mirror finish chill roll and steel roller Include utility- 12. Spare like drive , heaters , selector plug and other lots of spare available will provided with machine. All electric and machine manual and backup Chiller 80 tr /40 tr ( two unit ) |
