3 capas EGAN Linea de extrusion

Código Máquina
CA148
Constructor
EGAN
Año
1991
Number of layers
3
Film structure
ABA
Material
CPP
Film width (mm)
1626
Extruder 1 Layer ref:
A
Extruder 2 Layer ref:
B
Head description
EDI automatic die
Die width (mm)
1981
Rewinder max reel diameter (mm)
914

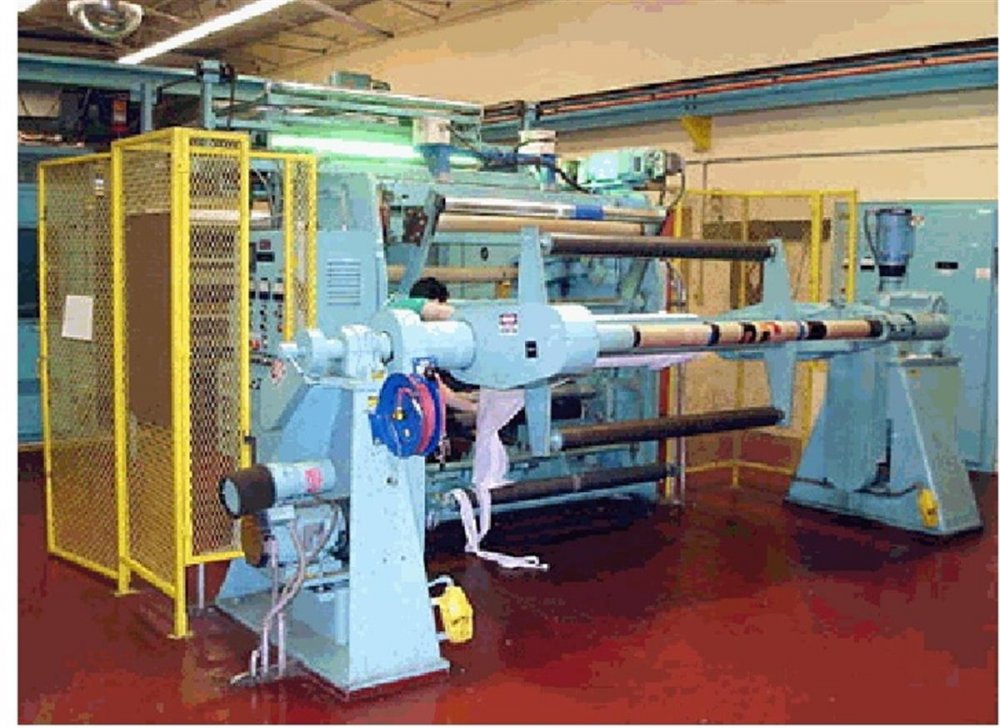

Rewinder description
Turret
Note

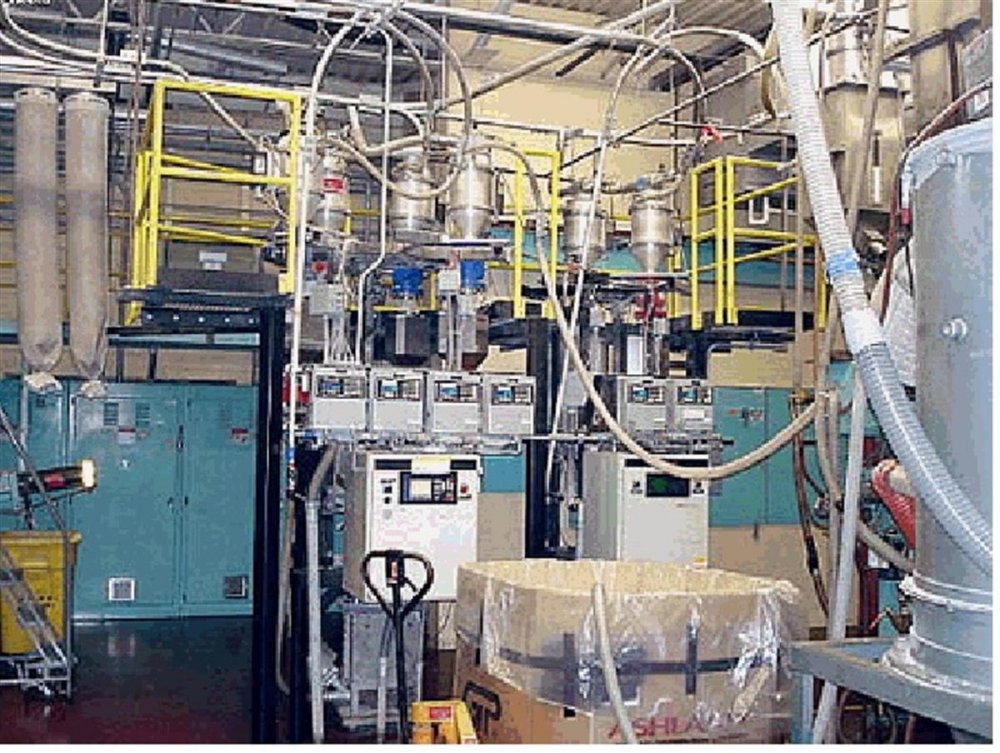

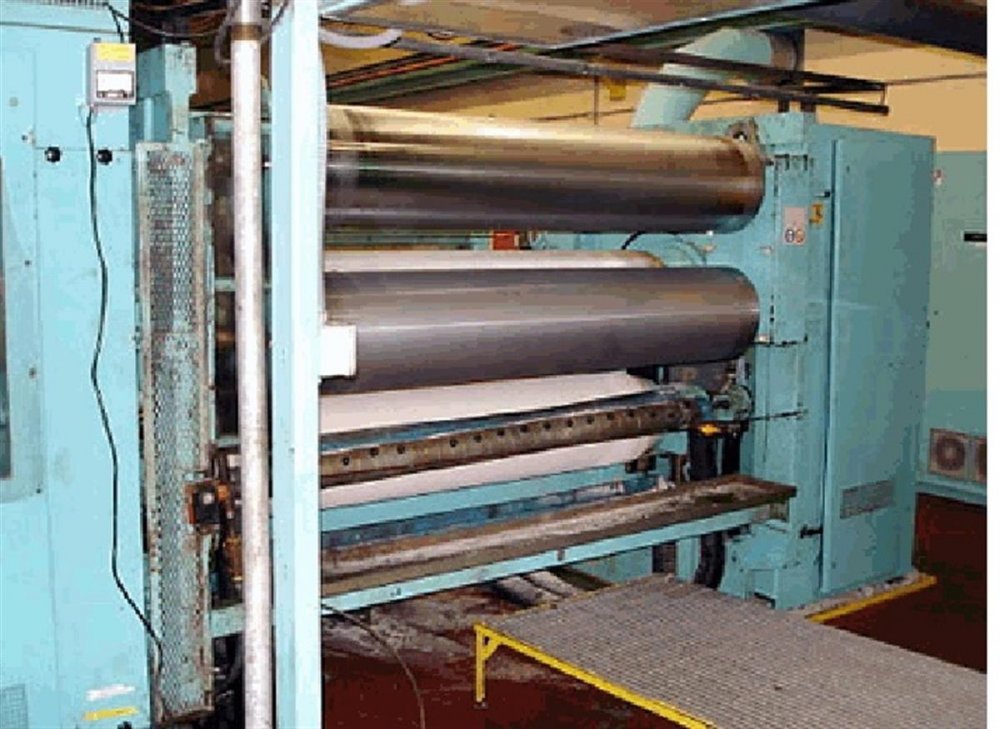

K-Tron vertech gravimetric feed resin system (4+2 blenders) 2 Beringer hydraulic screen changers (model SL-35, model SL-25) 2 polymer melt pumps with DC drives Egan 3-layer feed block Egan 2032mm 3-roll casting station (406mm diameter x 2032mm rolls) 2 roll Kuster calenders Ohmart beta gauge 2133mm Eriez EZ5 Metal Detector (new in 2003) 36kw Sterlco hot oil unit 75kw HTT hot oil unit Systronics ision system (2 cameras)
Código Máquina CA148
Constructor EGAN
Año 1991
Number of layers 3
Film structure ABA
Material CPP
Film width (mm) 1626
Extruder 1 Layer ref: A
Extruder 2 Layer ref: B
Head description EDI automatic die
Die width (mm) 1981
Rewinder max reel diameter (mm) 914
Rewinder description Turret
Note K-Tron vertech gravimetric feed resin system (4+2 blenders) 2 Beringer hydraulic screen changers (model SL-35, model SL-25) 2 polymer melt pumps with DC drives Egan 3-layer feed block Egan 2032mm 3-roll casting station (406mm diameter x 2032mm rolls) 2 roll Kuster calenders Ohmart beta gauge 2133mm Eriez EZ5 Metal Detector (new in 2003) 36kw Sterlco hot oil unit 75kw HTT hot oil unit Systronics ision system (2 cameras)
