- Código Máquina
- CA143
- Constructor
- TECHNO COATING ENGINEERING
- Año
- 2001
- Number of layers
- 5
- Material
- Stretch film LLDPE
- Film width (mm)
- 3000
- Output (Kg/h)
- 1200

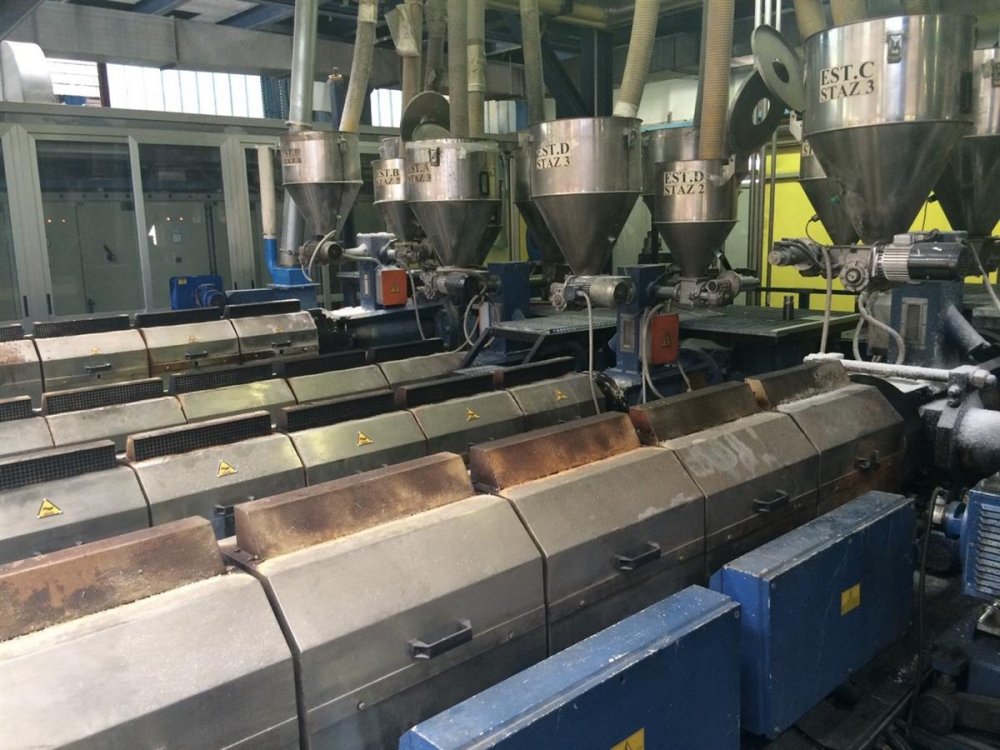

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 130mm
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 160mm
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 160mm
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 130mm
- Head description
- Automatic die,
- Die width (mm)
- 3700

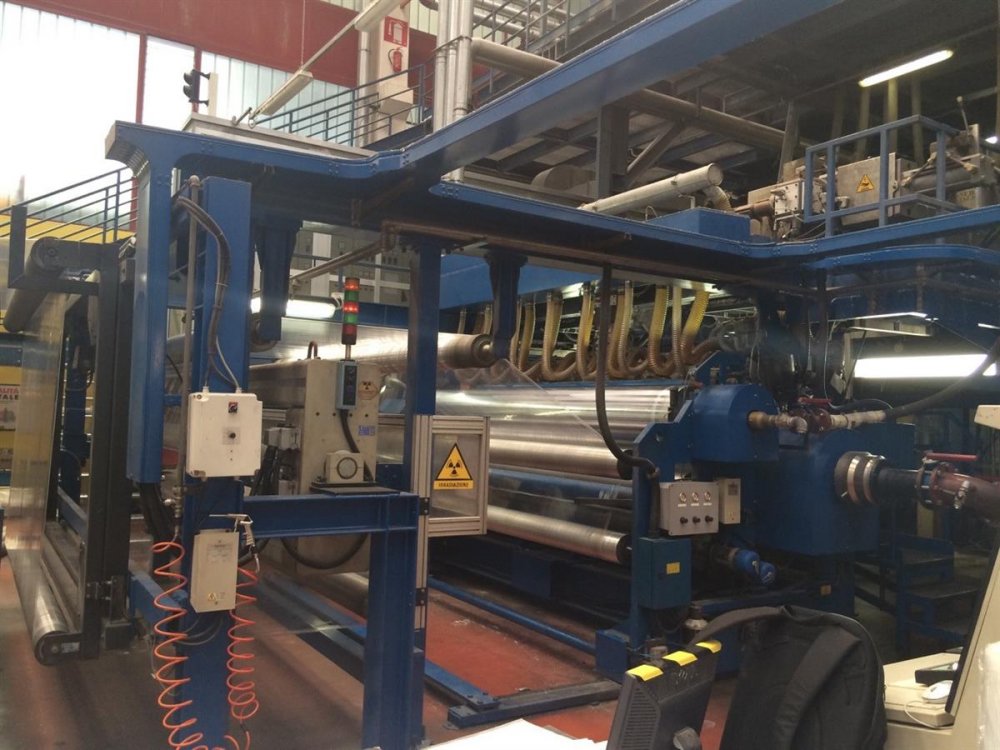

- Chill roll unit
- chill roll width 3800mm; first chill roll diameter 980mm;
- Thickness controll system
- Automatic.
- Web guide
- Yes

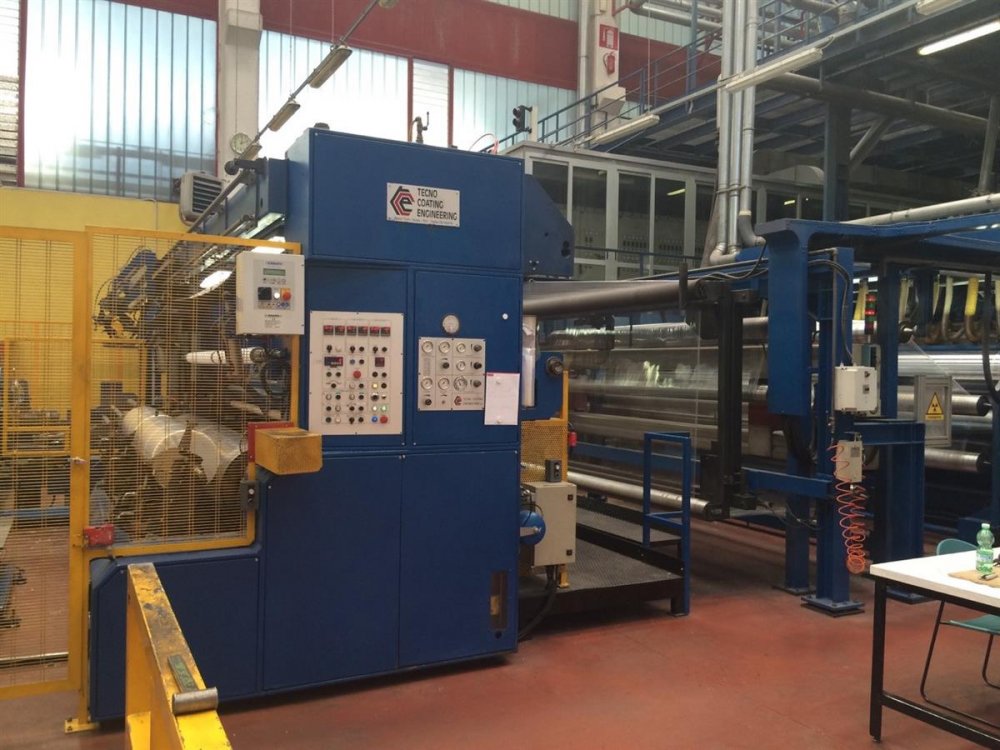

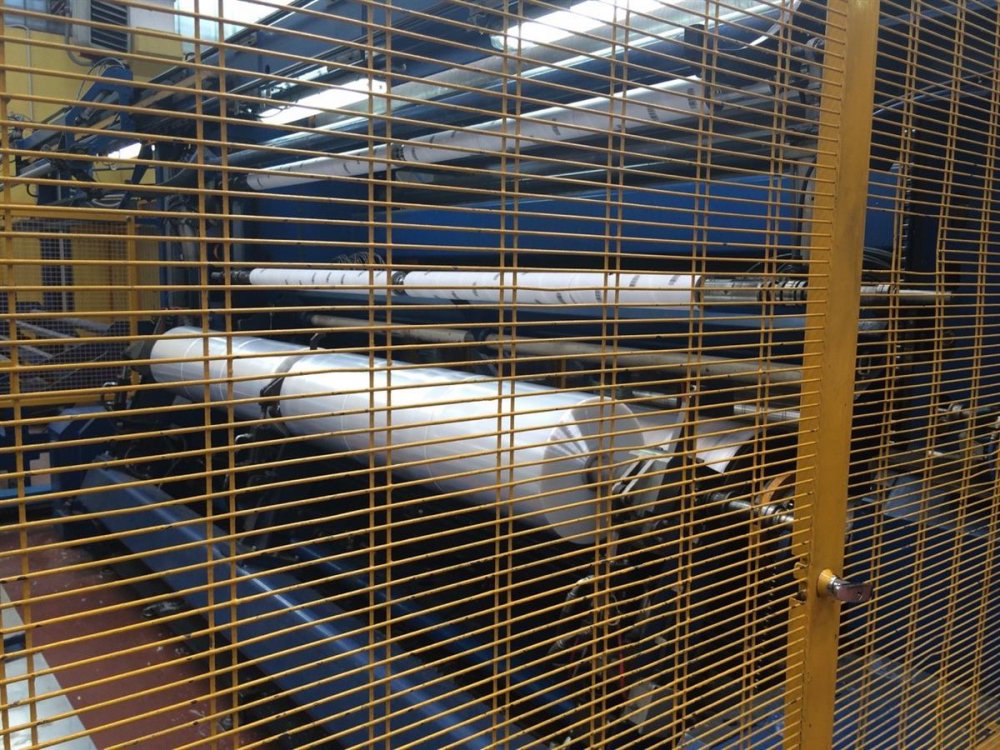

- Rewinder description
- Rewinder for Jumbo reels and machine reels. Automaticreel change, reels extraction and new core position system
| Código Máquina | CA143 |
| Constructor | TECHNO COATING ENGINEERING |
| Año | 2001 |
| Number of layers | 5 |
| Material | Stretch film LLDPE |
| Film width (mm) | 3000 |
| Output (Kg/h) | 1200 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 130mm |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 160mm |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 160mm |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 130mm |
| Head description | Automatic die, |
| Die width (mm) | 3700 |
| Chill roll unit | chill roll width 3800mm; first chill roll diameter 980mm; |
| Thickness controll system | Automatic. |
| Web guide | Yes |
| Rewinder description | Rewinder for Jumbo reels and machine reels. Automaticreel change, reels extraction and new core position system |
