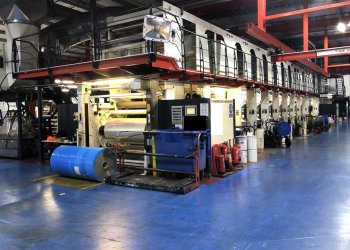

WINDMÖLLER & HÖLSCHER HELIOSTAR Impresora huecograbado 10 colores

Código Máquina
RO203
Constructor
WINDMÖLLER & HÖLSCHER
Modello
HELIOSTAR
Año
2005
Number of colors
10
Print possibilities
10 col printing, 9 col print + cold seal, 9 col rpint + lamination, 8 col print + lamination and coating
Overhaul/renovation
register control 2015 Eltromat registar
Drive
Electronic shaft
Trolley system
Yes
Web width (mm)
1720
Print width (mm)
1700
Print repeat range (mm)
450-900 mm (ECO PLUS)
Drying specifications
Unit 1-7 single hood, 2,3m length, 15 nozels, vol 10.000m3/h. Unti 8 double hood, 4,6m length, 30 nozels, vol 20.000m3/h, Unit 9-10 Jumbo dryer 7,2 m length, 44-48 nozels, vol 30-32.000m3/h,
Drying heat surce
gas burners
Unwinder type
2 unwinders (primary and secondary) Turret
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret
Max reel diameter rewinder (mm)
1300
Register controll
BST Eltromat Registar 20 (age 2018)
Vyscosity control
Automatic
Print cylinders
1923 approximately
Note
unit 9 needs maintenance
Código Máquina RO203
Constructor WINDMÖLLER & HÖLSCHER
Modello HELIOSTAR
Año 2005
Number of colors 10
Print possibilities 10 col printing, 9 col print + cold seal, 9 col rpint + lamination, 8 col print + lamination and coating
Overhaul/renovation register control 2015 Eltromat registar
Drive Electronic shaft
Trolley system Yes
Web width (mm) 1720
Print width (mm) 1700
Print repeat range (mm) 450-900 mm (ECO PLUS)
Drying specifications Unit 1-7 single hood, 2,3m length, 15 nozels, vol 10.000m3/h. Unti 8 double hood, 4,6m length, 30 nozels, vol 20.000m3/h, Unit 9-10 Jumbo dryer 7,2 m length, 44-48 nozels, vol 30-32.000m3/h,
Drying heat surce gas burners
Unwinder type 2 unwinders (primary and secondary) Turret
Max reel diameter unwinder (mm) 1000
Rewinder type Turret
Max reel diameter rewinder (mm) 1300
Register controll BST Eltromat Registar 20 (age 2018)
Vyscosity control Automatic
Print cylinders 1923 approximately
Note unit 9 needs maintenance
