- Código Máquina
- RO203
- Constructor
- WINDMÖLLER & HÖLSCHER
- Modello
- HELIOSTAR
- Año
- 2005
- Number of colors
- 10
- Print possibilities
- 10 col printing, 9 col print + cold seal, 9 col rpint + lamination, 8 col print + lamination and coating
- Overhaul/renovation
- register control 2015 Eltromat registar
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1720
- Print width (mm)
- 1700
- Print repeat range (mm)
- 450-900 mm (ECO PLUS)
- Drying specifications
- Unit 1-7 single hood, 2,3m length, 15 nozels, vol 10.000m3/h. Unti 8 double hood, 4,6m length, 30 nozels, vol 20.000m3/h, Unit 9-10 Jumbo dryer 7,2 m length, 44-48 nozels, vol 30-32.000m3/h,
- Drying heat surce
- gas burners

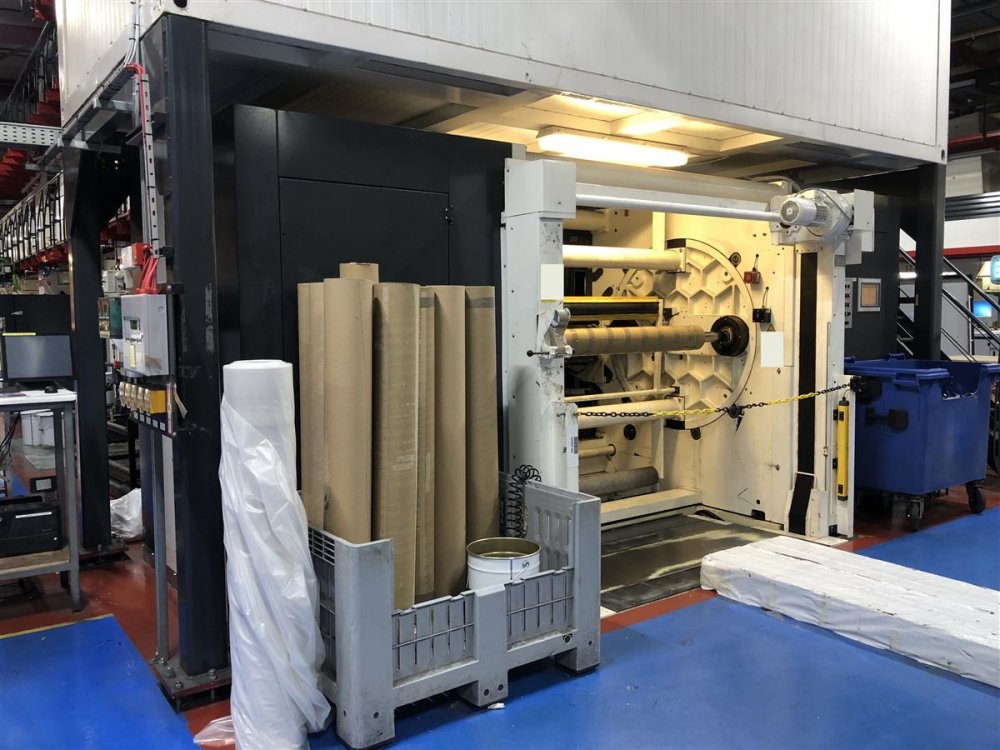

- Unwinder type
- 2 unwinders (primary and secondary) Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1300
- Register controll
- BST Eltromat Registar 20 (age 2018)
- Vyscosity control
- Automatic
- Print cylinders
- 1923 approximately
- Note
- unit 9 needs maintenance
| Código Máquina | RO203 |
| Constructor | WINDMÖLLER & HÖLSCHER |
| Modello | HELIOSTAR |
| Año | 2005 |
| Number of colors | 10 |
| Print possibilities | 10 col printing, 9 col print + cold seal, 9 col rpint + lamination, 8 col print + lamination and coating |
| Overhaul/renovation | register control 2015 Eltromat registar |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1720 |
| Print width (mm) | 1700 |
| Print repeat range (mm) | 450-900 mm (ECO PLUS) |
| Drying specifications | Unit 1-7 single hood, 2,3m length, 15 nozels, vol 10.000m3/h. Unti 8 double hood, 4,6m length, 30 nozels, vol 20.000m3/h, Unit 9-10 Jumbo dryer 7,2 m length, 44-48 nozels, vol 30-32.000m3/h, |
| Drying heat surce | gas burners |
| Unwinder type | 2 unwinders (primary and secondary) Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1300 |
| Register controll | BST Eltromat Registar 20 (age 2018) |
| Vyscosity control | Automatic |
| Print cylinders | 1923 approximately |
| Note | unit 9 needs maintenance |
