- Código Máquina
- FL1142
- Constructor
- SOMA
- Modello
- MIDI II
- Año
- 2012
- Number of colors
- 8
- Print possibilityes
- 8+8, 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 360
- Max print repeat (mm)
- 780
- Unwinder type
- Turret Automatic with roll loading system
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zone s 4 fans , 4 mt tunnel and 2 gas burners - Auto recirculation system with LEL control

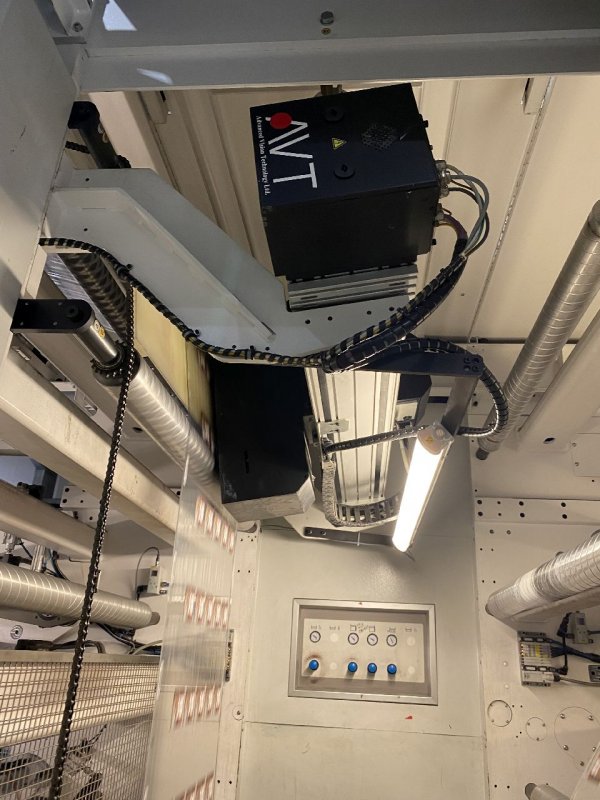

- Videocamera
- Yes AVT Jupiter
- Web guides
- Yes in and out
- Washing system
- Yes
- Inking system
- Closed chamber doctor blades and ceramic anilox rollers N° 8Ink Pumps.
- Anilox
- 15 anilox sleeves
- Print Sleeves
- appprox 80
- Note
- Max. mechanical machine speed 300 m/min Turning Bar 8+8n - half width complete with edge guides and reg control
| Código Máquina | FL1142 |
| Constructor | SOMA |
| Modello | MIDI II |
| Año | 2012 |
| Number of colors | 8 |
| Print possibilityes | 8+8, 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 360 |
| Max print repeat (mm) | 780 |
| Unwinder type | Turret Automatic with roll loading system |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zone s 4 fans , 4 mt tunnel and 2 gas burners - Auto recirculation system with LEL control |
| Videocamera | Yes AVT Jupiter |
| Web guides | Yes in and out |
| Washing system | Yes |
| Inking system | Closed chamber doctor blades and ceramic anilox rollers N° 8Ink Pumps. |
| Anilox | 15 anilox sleeves |
| Print Sleeves | appprox 80 |
| Note | Max. mechanical machine speed 300 m/min Turning Bar 8+8n - half width complete with edge guides and reg control |
