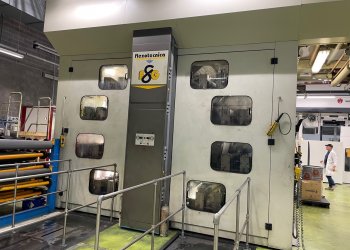

- Código Máquina
- FL1111
- Constructor
- FLEXOTECNICA
- Modello
- FG8
- Año
- 2005
- Number of colors
- 9
- Print possibilityes
- 8 on CI +1 STACK DOWNSTREAM
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 1200
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1270
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1270
- Drying
- 2 zones , 4 fans, final tunnel 2 gas burners - Downstream stack unit with Drying hood and UV drying box
- Videocamera
- yes
- Corona treatment
- YES
- Web guides
- yes in and out Fife OPG
- Vyscosity control
- yes 8
- Washing system
- yes on CI section
- Inking system
- Closed chamber doctor blades and ceramic anilox - totally 11 blade chabers and 11 pumps with tanks
- Anilox
- 27 ceramic anilox sleeves 1x50/30, 1x50x25, 1x90x19, 1x100/15, 2x120/12, 3x140/12, 1x140/8, 1x180/9, 1x180/7, 3x220/6.5, 2x32/5.5, 1x420/38, 2x420/48, 1x460/3.2, 5x460/3.2
- Print Sleeves
- 190 print sleeves
- Note
- Turning Bar 8+8 half width Chiller Corema
| Código Máquina | FL1111 |
| Constructor | FLEXOTECNICA |
| Modello | FG8 |
| Año | 2005 |
| Number of colors | 9 |
| Print possibilityes | 8 on CI +1 STACK DOWNSTREAM |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 1200 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1270 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1270 |
| Drying | 2 zones , 4 fans, final tunnel 2 gas burners - Downstream stack unit with Drying hood and UV drying box |
| Videocamera | yes |
| Corona treatment | YES |
| Web guides | yes in and out Fife OPG |
| Vyscosity control | yes 8 |
| Washing system | yes on CI section |
| Inking system | Closed chamber doctor blades and ceramic anilox - totally 11 blade chabers and 11 pumps with tanks |
| Anilox | 27 ceramic anilox sleeves 1x50/30, 1x50x25, 1x90x19, 1x100/15, 2x120/12, 3x140/12, 1x140/8, 1x180/9, 1x180/7, 3x220/6.5, 2x32/5.5, 1x420/38, 2x420/48, 1x460/3.2, 5x460/3.2 |
| Print Sleeves | 190 print sleeves |
| Note | Turning Bar 8+8 half width Chiller Corema |
