- Código Máquina
- FL1107
- Constructor
- UTECO
- Modello

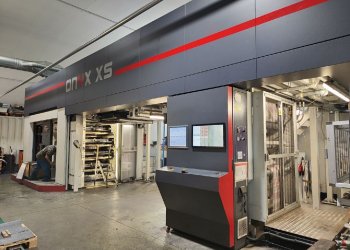

- ONYX 865 XS
- Año
- 2018
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1020
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 650
- Unwinder type
- Single position Shaftless Ac motor driven
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic with splicing in both directions.
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , Electric heaters with automatic temp . preset and control . Automatic air recirculation system with LEL control
- Videocamera
- Video Camera Grafikontrol Matrix 3CCD with register adjustment. Click&Drag
- Corona treatment
- Yes Ferrarini Benelli Polymetal suitable for metallized films
- Web guides
- yes in and out Fife OPG
- Vyscosity control
- Yes Automatic Gama G29
- Washing system
- Yes automatic Solvent tanks included. Distillation available for additional cost
- Inking system
- Closed chamber doctor blades and ceramic anilox sleevs
- Anilox
- 18 ceramic anilox sleeves APEX.11 are GTT type. 6 x mod T.S, 2xT.M, 4xT.L, 2x T.XL, 1 with traditional engraving
- Print Sleeves
- 280 print sleeves. Repeat 310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 430, 440, 450, 460, 470, 480, 490, 500, 510, 520, 530, 540, 550, 560, 570, 580, 590, 600, 610, 620, 630, 640, 650 mm x 8 sleeves for each repeat + 9 carrier adaptors for repeats above 500mm
- Note
- Hastalloy coated CI drum Automatic print posion setting " Touch and Go" position of printing decks. P2P automatic print pressure adjustments with speed Automatic Print pre register system and pre setting system Tune&Go Remote Technical Assistance connection. Reprint function on preprinted web ,complete with automatic insetting register control . Uteco Production management control SQL Chiller for CI drum and outfeed chill roller nip INCLUDED Suitable for both water based and solvent based inks
| Código Máquina | FL1107 |
| Constructor | UTECO |
| Modello | ONYX 865 XS |
| Año | 2018 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1020 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 650 |
| Unwinder type | Single position Shaftless Ac motor driven |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic with splicing in both directions. |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , Electric heaters with automatic temp . preset and control . Automatic air recirculation system with LEL control |
| Videocamera | Video Camera Grafikontrol Matrix 3CCD with register adjustment. Click&Drag |
| Corona treatment | Yes Ferrarini Benelli Polymetal suitable for metallized films |
| Web guides | yes in and out Fife OPG |
| Vyscosity control | Yes Automatic Gama G29 |
| Washing system | Yes automatic Solvent tanks included. Distillation available for additional cost |
| Inking system | Closed chamber doctor blades and ceramic anilox sleevs |
| Anilox | 18 ceramic anilox sleeves APEX.11 are GTT type. 6 x mod T.S, 2xT.M, 4xT.L, 2x T.XL, 1 with traditional engraving |
| Print Sleeves | 280 print sleeves. Repeat 310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 430, 440, 450, 460, 470, 480, 490, 500, 510, 520, 530, 540, 550, 560, 570, 580, 590, 600, 610, 620, 630, 640, 650 mm x 8 sleeves for each repeat + 9 carrier adaptors for repeats above 500mm |
| Note | Hastalloy coated CI drum Automatic print posion setting " Touch and Go" position of printing decks. P2P automatic print pressure adjustments with speed Automatic Print pre register system and pre setting system Tune&Go Remote Technical Assistance connection. Reprint function on preprinted web ,complete with automatic insetting register control . Uteco Production management control SQL Chiller for CI drum and outfeed chill roller nip INCLUDED Suitable for both water based and solvent based inks |
