- Código Máquina
- FL1089
- Constructor
- UTECO
- Modello
- ONYX 876
- Año
- 2007
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 800
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , four fans , final tunnel 4 mt length , 2 gas burners , Automatic air recirculation system with LEL control
- Videocamera
- BST - 3CCd , with defekt control
- Web guides
- Yes in and out BST
- Vyscosity control
- Yes
- Washing system
- Yes automatic

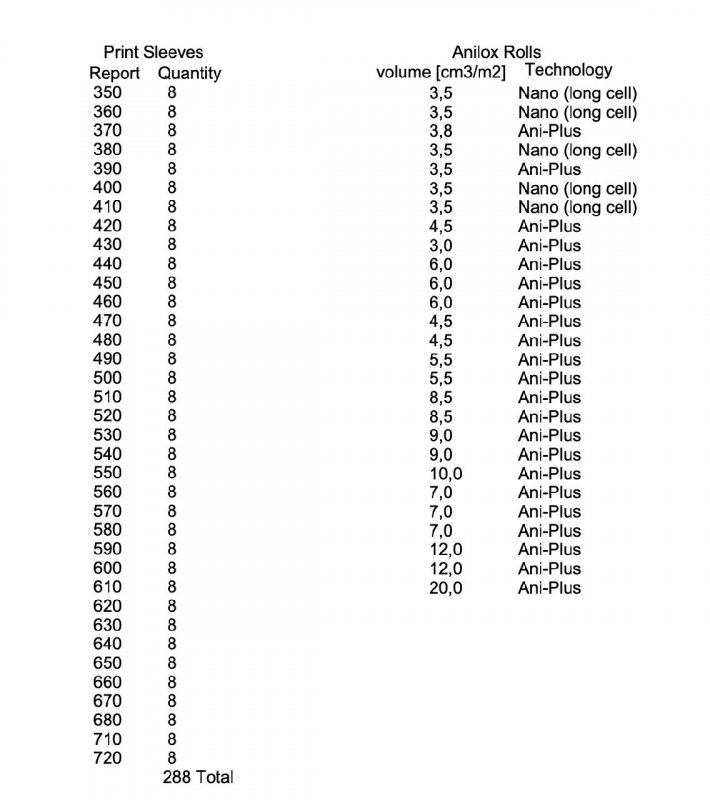

- Anilox
- 27 ceramic anilox sleeves
- Print Sleeves
- 288 print sleeves
- Print cylinders
- 16 adapters
- Note
- Plate mounter included
| Código Máquina | FL1089 |
| Constructor | UTECO |
| Modello | ONYX 876 |
| Año | 2007 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , four fans , final tunnel 4 mt length , 2 gas burners , Automatic air recirculation system with LEL control |
| Videocamera | BST - 3CCd , with defekt control |
| Web guides | Yes in and out BST |
| Vyscosity control | Yes |
| Washing system | Yes automatic |
| Anilox | 27 ceramic anilox sleeves |
| Print Sleeves | 288 print sleeves |
| Print cylinders | 16 adapters |
| Note | Plate mounter included |
