- Código Máquina
- FL1006
- Constructor
- UTECO
- Modello

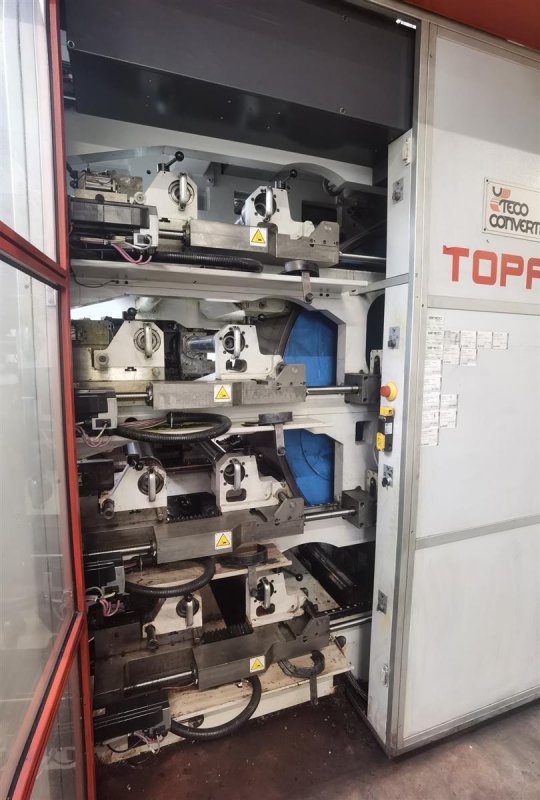

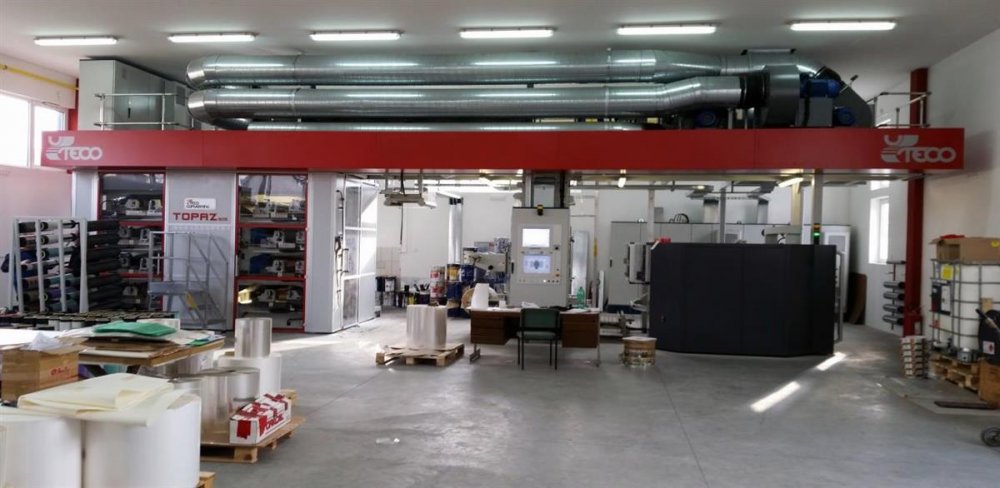

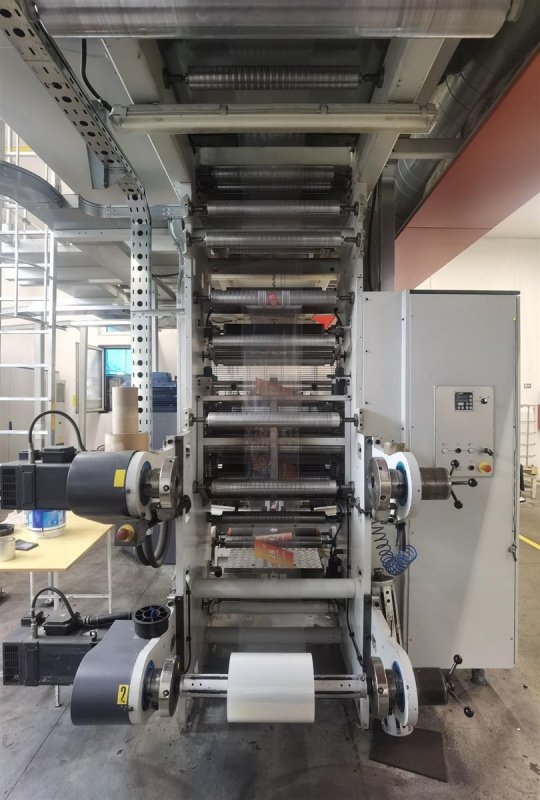

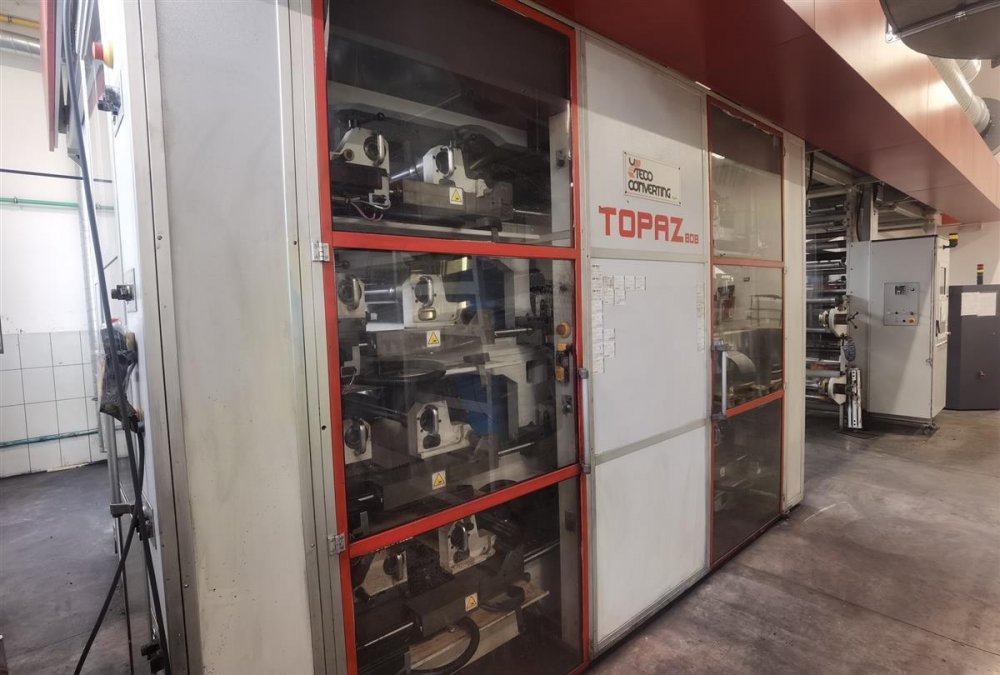

- TOPAZ 808 GL
- Año
- 2014
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 650
- Print width (mm)
- 600
- Min print repeat (mm)
- 290
- Max print repeat (mm)
- 800
- Unwinder type
- Two position bracket type with marriage roll for drop splice
- Max reel diameter unwinder (mm)
- 800

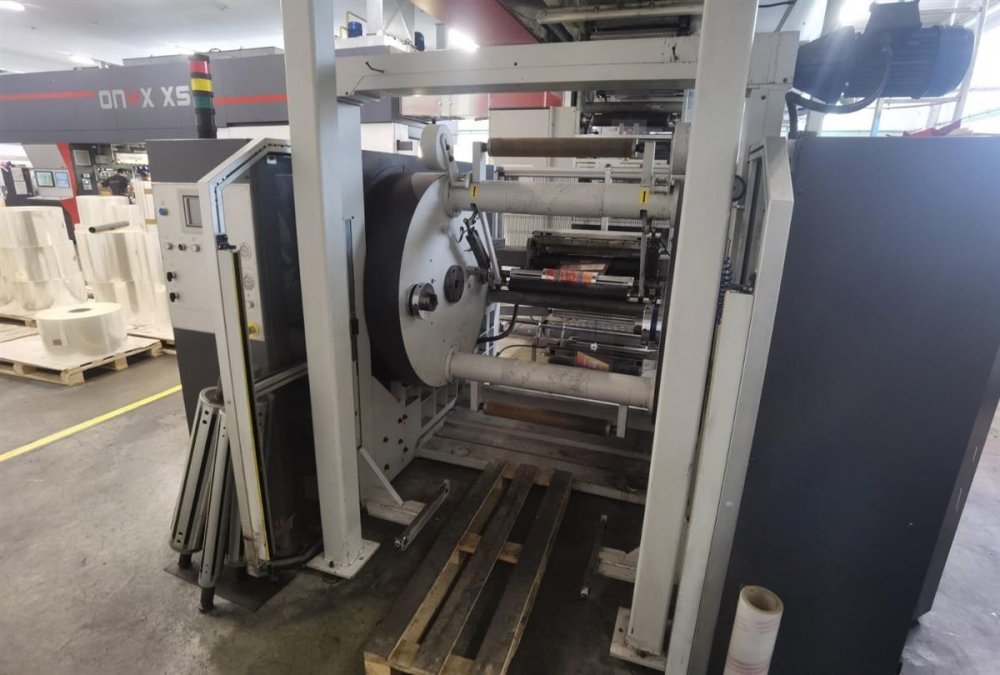

- Rewinder type
- Turret automatic non stop
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , 4 fans 5 mt tunnel , 2 gas burner sGas

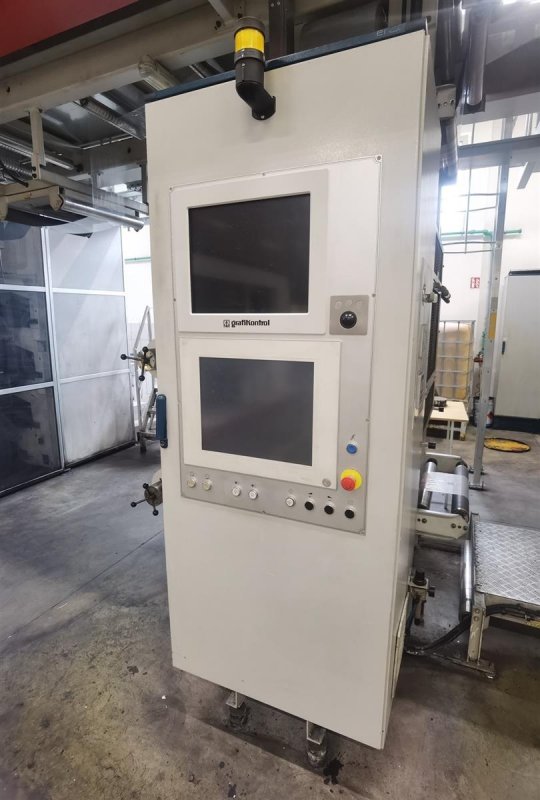

- Videocamera
- Grafikontrol - Grafikscan 2100
- Web guides
- BTS
- Washing system
- yes

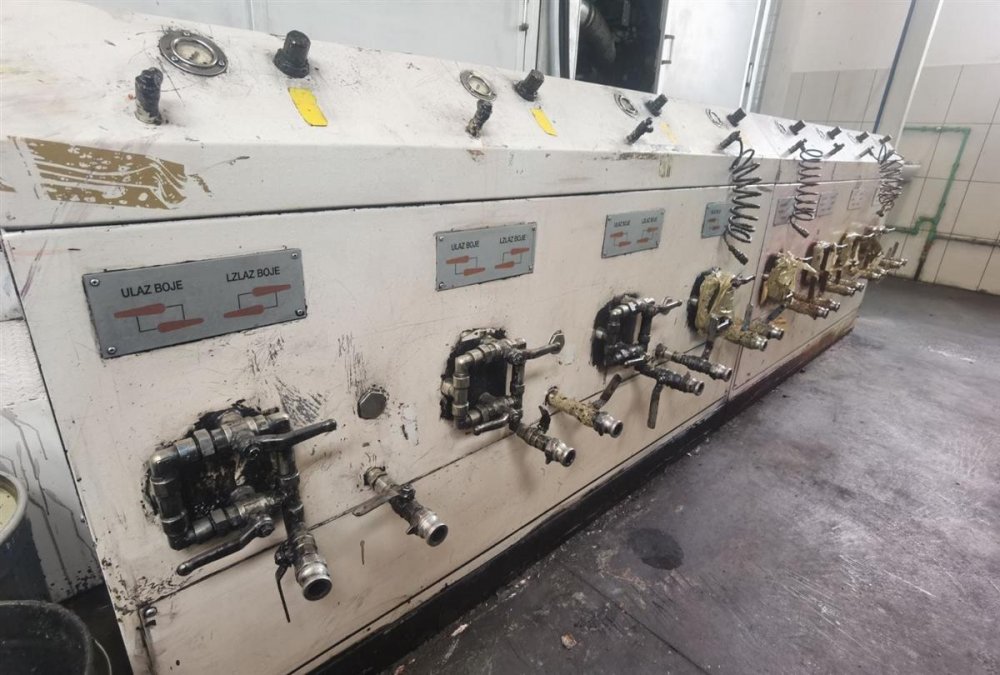

- Inking system
- 16 mechanic ink pumps SMC type
- Anilox
- 4 x 400 L/cm, 1 x 100 L/cm, 3 x 160 L/cm, 1 x 180 L/cm, 1 x - 200 L/cm, 1 x 340 L/cm.

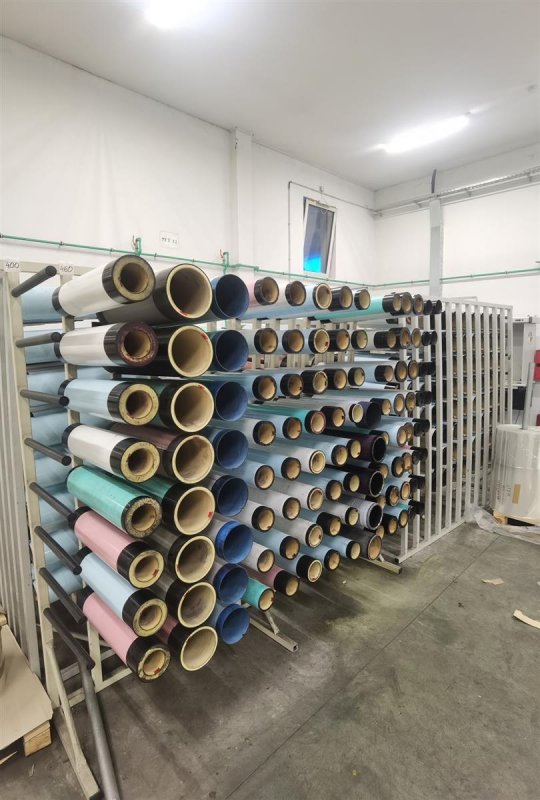

- Print Sleeves
- 8 x 300mm, 8 x 320mm, 8 x 330mm, 8 x 340mm, 8 x 350mm, 8 x 360mm, 8 x 380mm, 8 x 400mm, 8 x 420mm, 8 x 460mm, 8 x 500mm, 8 x 510mm, 8 x 530mm, 8 x 560mm, 8 x 570mm, 8 x 590mm, 8 x 660mm, 8 x 780mm.
- Note

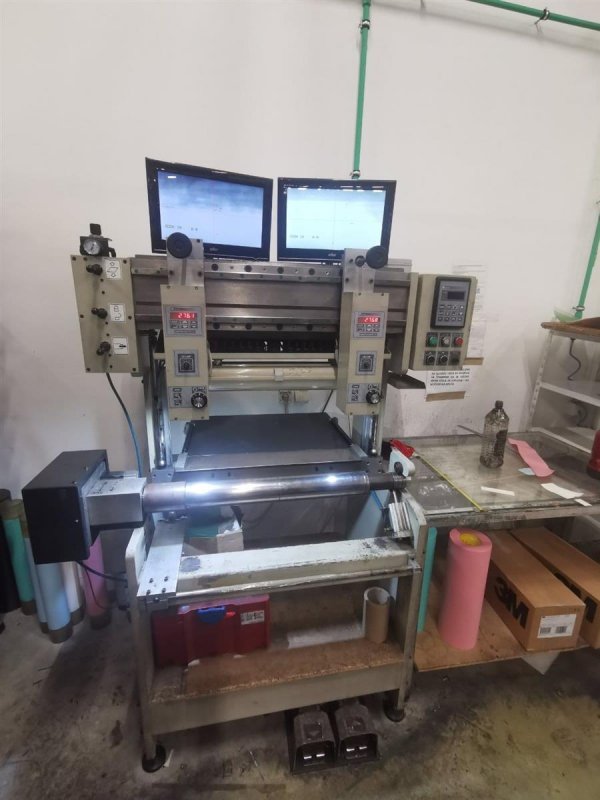

- Mechanical speed: 300 m/min Plate mounter included
| Código Máquina | FL1006 |
| Constructor | UTECO |
| Modello | TOPAZ 808 GL |
| Año | 2014 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 650 |
| Print width (mm) | 600 |
| Min print repeat (mm) | 290 |
| Max print repeat (mm) | 800 |
| Unwinder type | Two position bracket type with marriage roll for drop splice |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic non stop |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans 5 mt tunnel , 2 gas burner sGas |
| Videocamera | Grafikontrol - Grafikscan 2100 |
| Web guides | BTS |
| Washing system | yes |
| Inking system | 16 mechanic ink pumps SMC type |
| Anilox | 4 x 400 L/cm, 1 x 100 L/cm, 3 x 160 L/cm, 1 x 180 L/cm, 1 x - 200 L/cm, 1 x 340 L/cm. |
| Print Sleeves | 8 x 300mm, 8 x 320mm, 8 x 330mm, 8 x 340mm, 8 x 350mm, 8 x 360mm, 8 x 380mm, 8 x 400mm, 8 x 420mm, 8 x 460mm, 8 x 500mm, 8 x 510mm, 8 x 530mm, 8 x 560mm, 8 x 570mm, 8 x 590mm, 8 x 660mm, 8 x 780mm. |
| Note | Mechanical speed: 300 m/min Plate mounter included |
