- Código Máquina
- FL0937

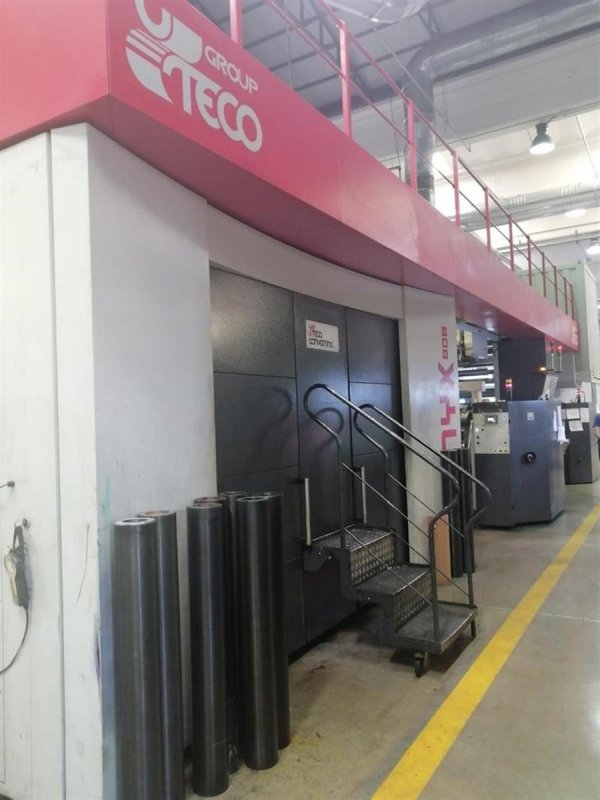

- Constructor
- UTECO
- Modello
- ONYX 808
- Año
- 2014
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

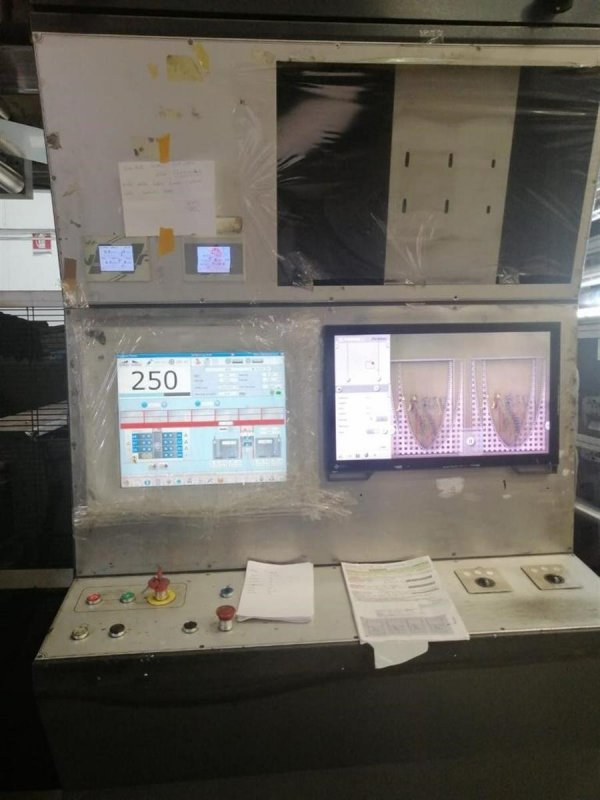

- Computer supervision
- Yes
- Web width (mm)
- 1300
- Print width (mm)
- 1250
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800

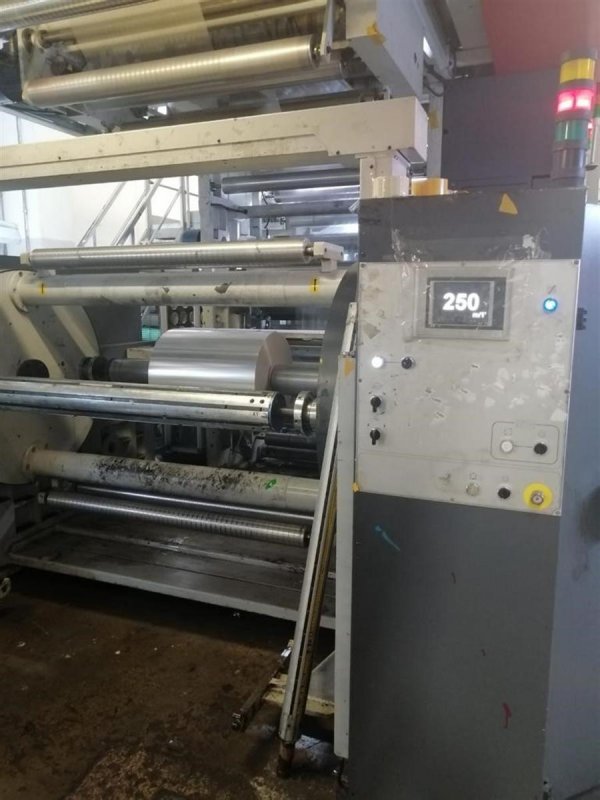

- Unwinder type
- Turret non stop
- Max reel diameter unwinder (mm)
- 1000

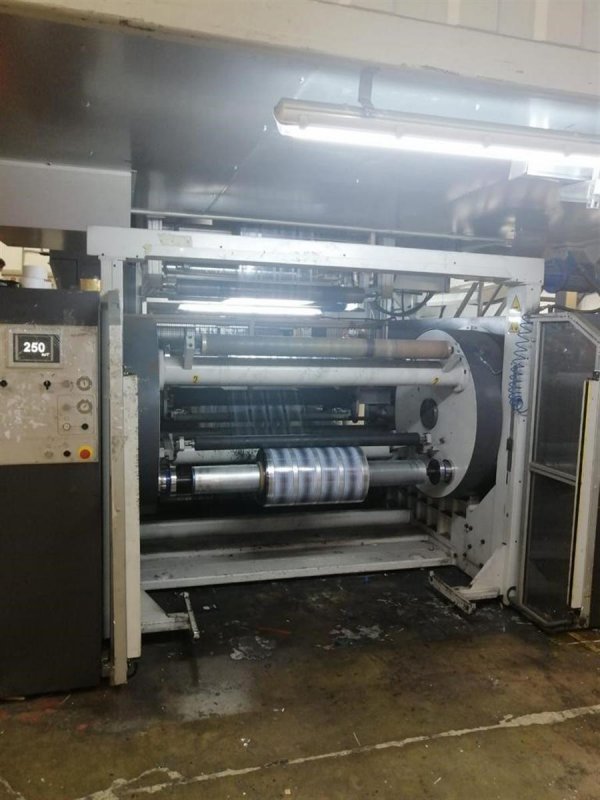

- Rewinder type
- Turret non stop
- Max reel diameter rewinder (mm)
- 1000

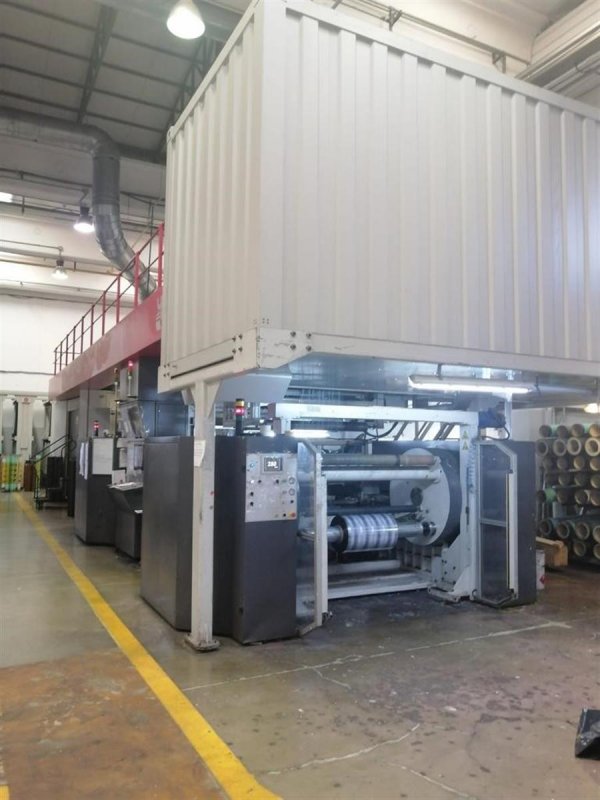

- Drying
- Gas

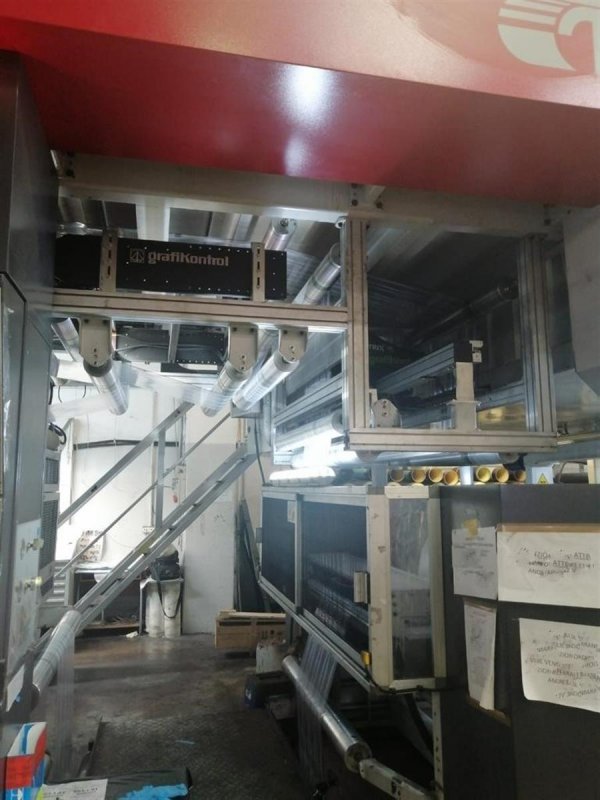

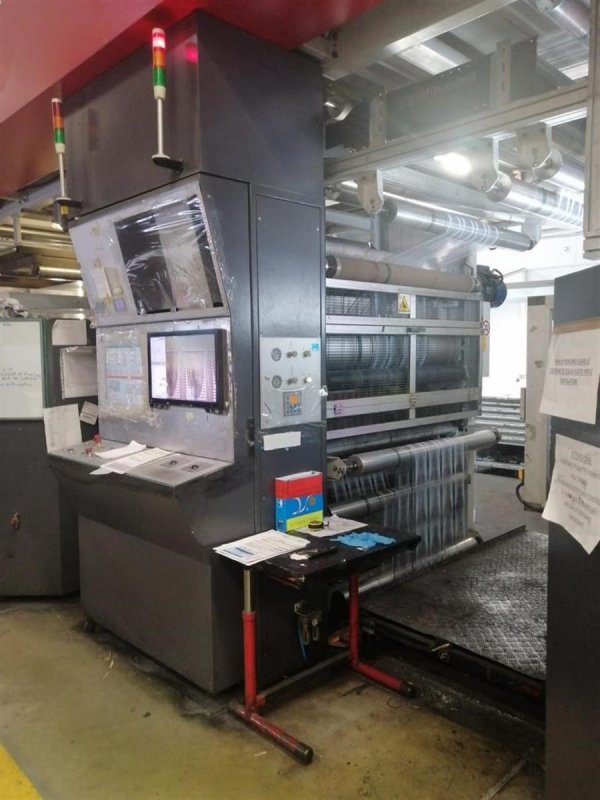

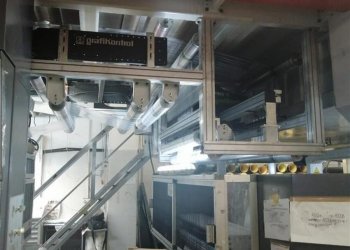

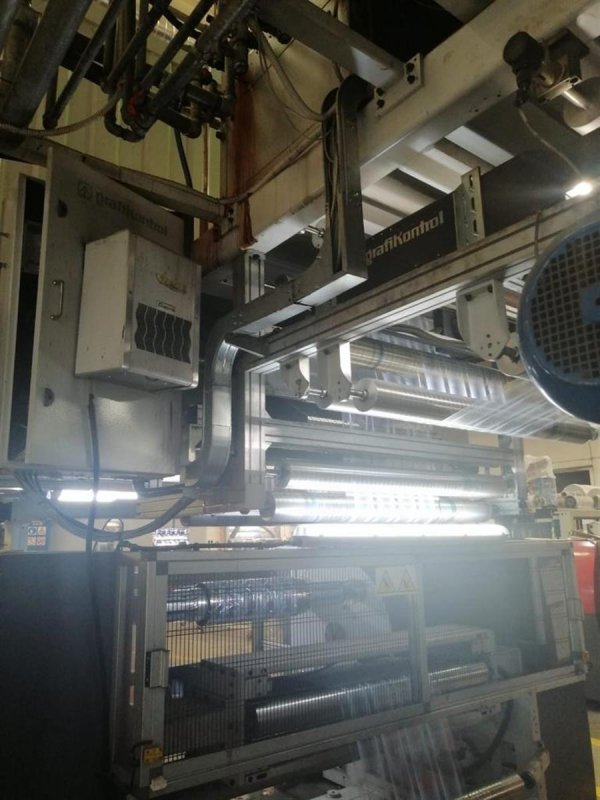

- Videocamera
- Graficontrol with 100% inspection
- Web guides
- Yes
- Vyscosity control
- Gama
- Washing system
- Yes
- Inking system
- Ceramic anilox + closed chambered doctor blade
- Anilox
- 12 pieces

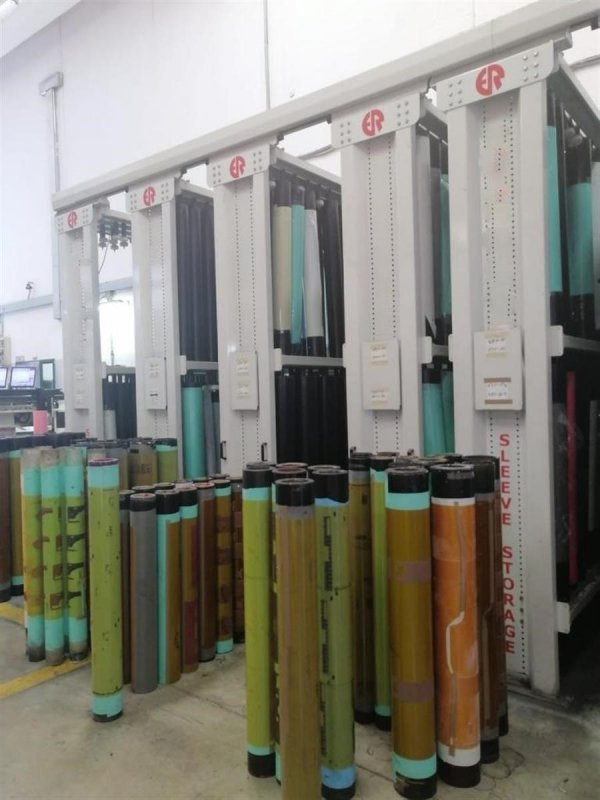

- Print Sleeves
- 3 set of sleeves
- Note
- " Kiss and Go" automatic Print setting Driven infeed roller
| Código Máquina | FL0937 |
| Constructor | UTECO |
| Modello | ONYX 808 |
| Año | 2014 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1300 |
| Print width (mm) | 1250 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret non stop |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret non stop |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Gas |
| Videocamera | Graficontrol with 100% inspection |
| Web guides | Yes |
| Vyscosity control | Gama |
| Washing system | Yes |
| Inking system | Ceramic anilox + closed chambered doctor blade |
| Anilox | 12 pieces |
| Print Sleeves | 3 set of sleeves |
| Note | " Kiss and Go" automatic Print setting Driven infeed roller |
