- Código Máquina
- FL0927
- Constructor
- UTECO
- Modello
- TOPAZ 608
- Año
- 2011
- Number of colors
- 6
- Print possibilityes
- 6 + 0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

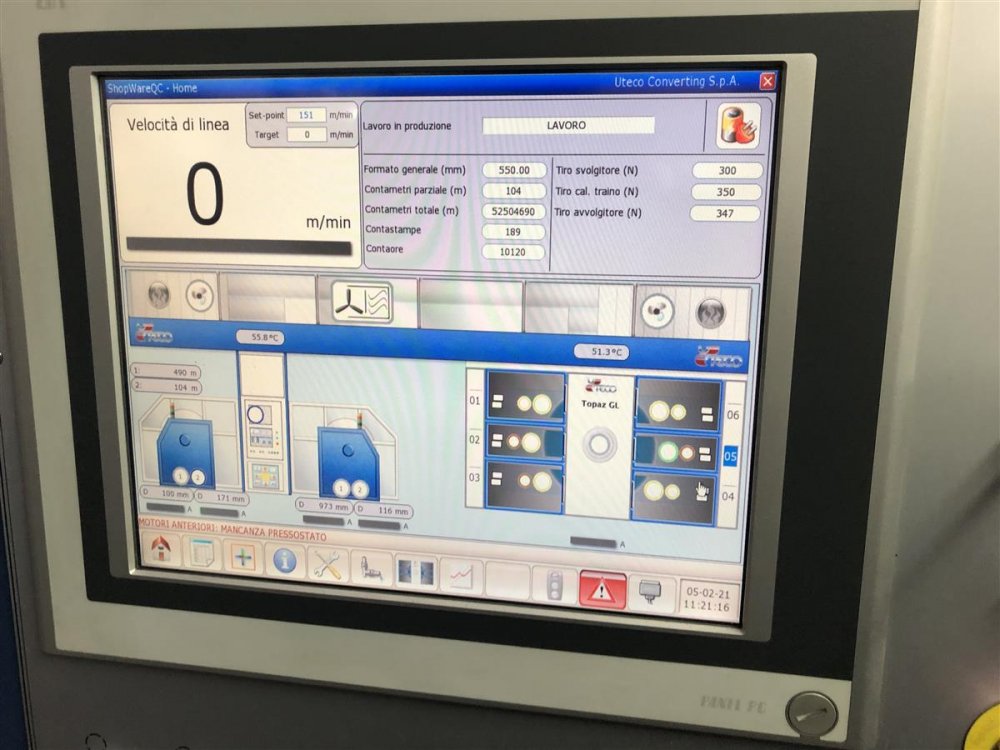

- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 390
- Max print repeat (mm)
- 850

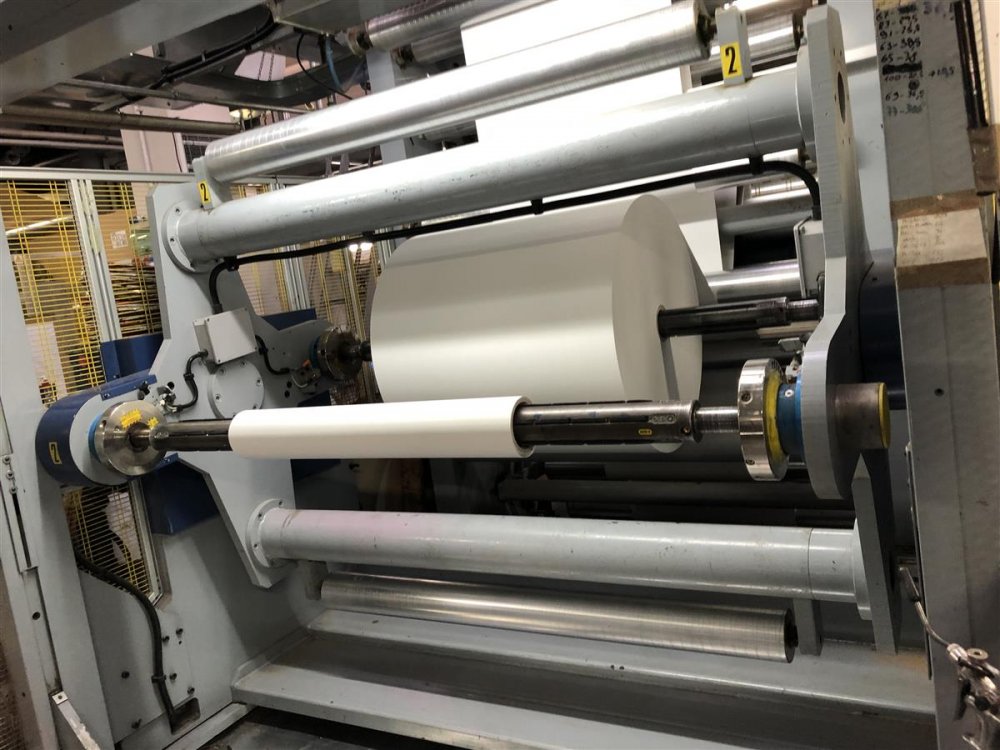

- Unwinder type
- Turret SemiAutomatic Drop Splice
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Aiutomatic
- Max reel diameter rewinder (mm)
- 1000
- Drying

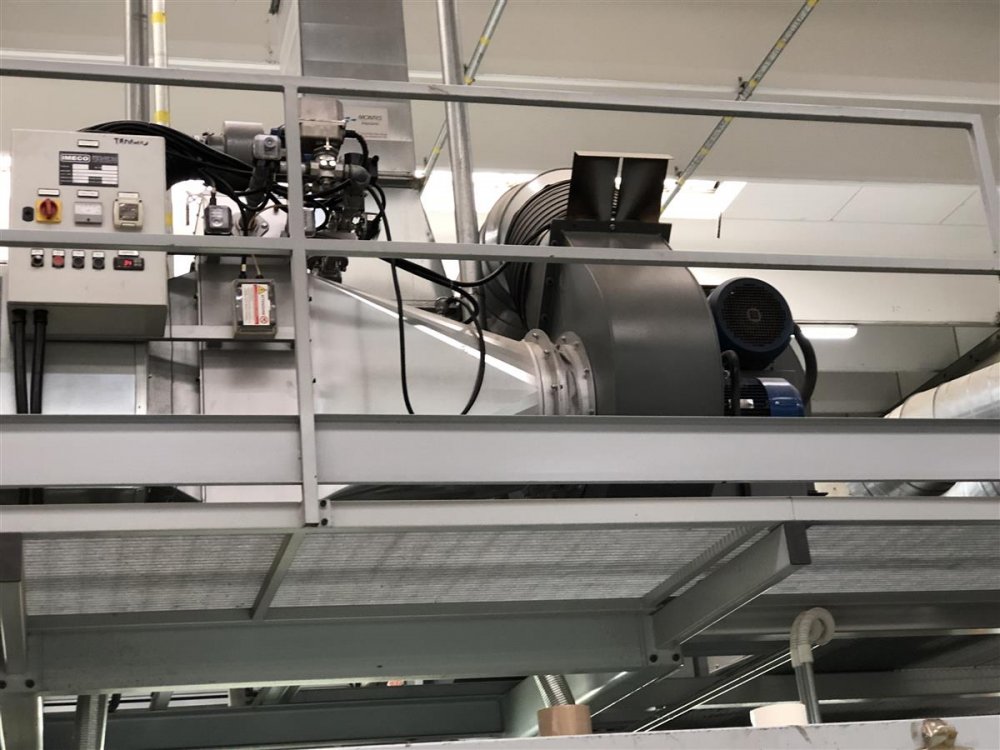

- 2 zones , 4 fans , 4 mt drying tunnel , 2 gas burners
- Videocamera
- Yes BST
- Web guides
- Yes in and out
- Vyscosity control
- No
- Washing system
- Yes included
- Inking system
- Closed chamber doctor blades
- Anilox
- 8 ceramic anilox sleeves
- Print Sleeves
- 3 sets of print sleeves
- Note
- Materials Paper from 60 up to 210gsm
| Código Máquina | FL0927 |
| Constructor | UTECO |
| Modello | TOPAZ 608 |
| Año | 2011 |
| Number of colors | 6 |
| Print possibilityes | 6 + 0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 390 |
| Max print repeat (mm) | 850 |
| Unwinder type | Turret SemiAutomatic Drop Splice |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Aiutomatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , 4 mt drying tunnel , 2 gas burners |
| Videocamera | Yes BST |
| Web guides | Yes in and out |
| Vyscosity control | No |
| Washing system | Yes included |
| Inking system | Closed chamber doctor blades |
| Anilox | 8 ceramic anilox sleeves |
| Print Sleeves | 3 sets of print sleeves |
| Note | Materials Paper from 60 up to 210gsm |
