- Código Máquina
- FL732
- Constructor
- UTECO
- Modello

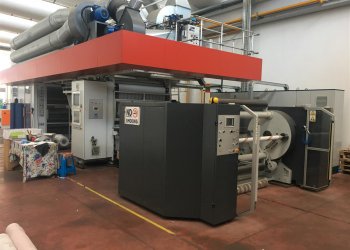

- TOPAZ 608 GL MOD 160
- Año
- 2014
- Number of colors
- 6
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1650
- Print width (mm)
- 1600
- Min print repeat (mm)
- 450
- Max print repeat (mm)
- 850
- Unwinder type
- Single
- Max reel diameter unwinder (mm)
- 1500
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Gas burners. Tunnel 4 mt long. Motorized air recirculation system with LEL system
- Videocamera
- Grafikscan 2200 with Click & Drag
- Web guides
- OPG at web infeed . Spreader roll MINK type
- Washing system
- Yes
- Inking system
- 6 closed chamber doctor blades; 6 ink pumps; solvent based and water based inks
- Anilox
- 6
- Print Sleeves
- 500
- Note
- Machine installed end of 2014 and started in beginning 2015 Mechanical speed :up to 300 m/min max Material:paper 50-150 g/m2 Single shaft unwinder “SAC-N-U-1500” Rewinder type TAR-N-1000 Spreader rollers MINK type
| Código Máquina | FL732 |
| Constructor | UTECO |
| Modello | TOPAZ 608 GL MOD 160 |
| Año | 2014 |
| Number of colors | 6 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1650 |
| Print width (mm) | 1600 |
| Min print repeat (mm) | 450 |
| Max print repeat (mm) | 850 |
| Unwinder type | Single |
| Max reel diameter unwinder (mm) | 1500 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Gas burners. Tunnel 4 mt long. Motorized air recirculation system with LEL system |
| Videocamera | Grafikscan 2200 with Click & Drag |
| Web guides | OPG at web infeed . Spreader roll MINK type |
| Washing system | Yes |
| Inking system | 6 closed chamber doctor blades; 6 ink pumps; solvent based and water based inks |
| Anilox | 6 |
| Print Sleeves | 500 |
| Note | Machine installed end of 2014 and started in beginning 2015 Mechanical speed :up to 300 m/min max Material:paper 50-150 g/m2 Single shaft unwinder “SAC-N-U-1500” Rewinder type TAR-N-1000 Spreader rollers MINK type |
