- Código Máquina
- FL766
- Constructor
- SOMA
- Modello
- MINIFLEX
- Año
- 2002
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

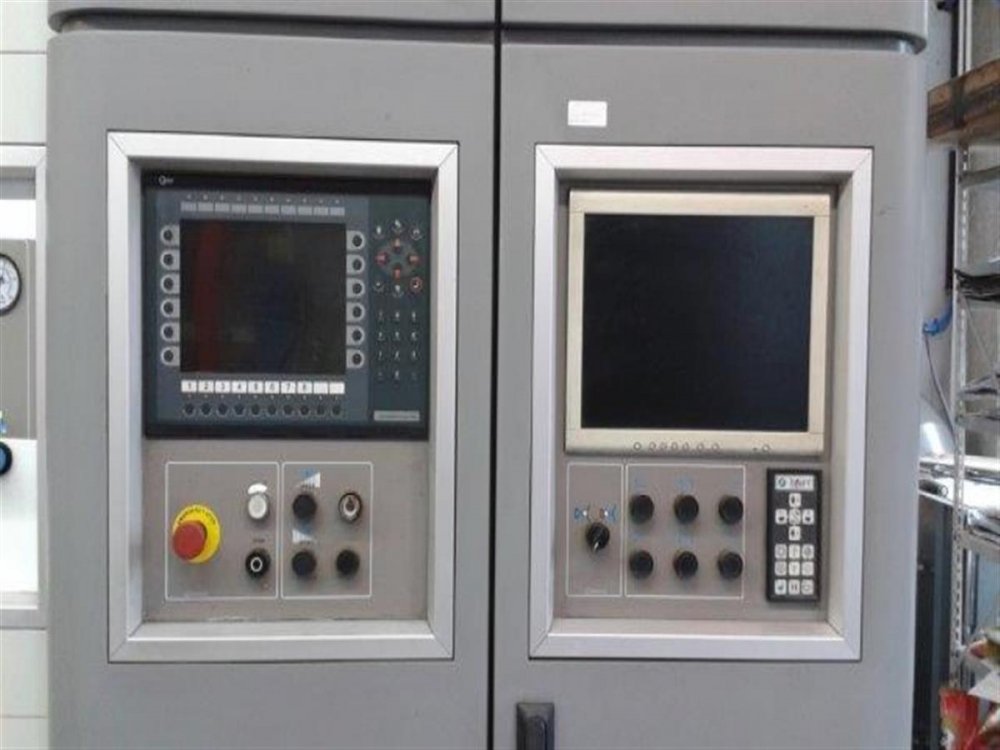

- Computer supervision
- Yes
- Web width (mm)
- 850
- Print width (mm)
- 820
- Min print repeat (mm)
- 250
- Max print repeat (mm)
- 600
- Unwinder type
- single
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Double
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , for fans , electric heaters
- Videocamera
- Yes Fife
- Web guides
- yes
- Inking system
- yes
- Anilox
- 3x320 l/cm-vol.5,0 ; 3x320 l/cm-vol.4,2 ; 1x250 l/cm-vol.8,5 ; 1x250 l/cm-vol.8,0 ; 1x180 l/cm-vol.7,8 ; 1x160 l/cm-vol.9,4 ; 1x100l/cm-vol.12,0 ;2x100 l/cm-vol.12,3 - 1x100 l/cm- vol.12,8
- Print Sleeves
- 8 x 330 mm, 8x340, 8x350, 8x370, 8x400, complete with gears , additional sets of 8 gears each of following repeats 410,420, 450, 500, 520, 540, 560,600
| Código Máquina | FL766 |
| Constructor | SOMA |
| Modello | MINIFLEX |
| Año | 2002 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 850 |
| Print width (mm) | 820 |
| Min print repeat (mm) | 250 |
| Max print repeat (mm) | 600 |
| Unwinder type | single |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Double |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , for fans , electric heaters |
| Videocamera | Yes Fife |
| Web guides | yes |
| Inking system | yes |
| Anilox | 3x320 l/cm-vol.5,0 ; 3x320 l/cm-vol.4,2 ; 1x250 l/cm-vol.8,5 ; 1x250 l/cm-vol.8,0 ; 1x180 l/cm-vol.7,8 ; 1x160 l/cm-vol.9,4 ; 1x100l/cm-vol.12,0 ;2x100 l/cm-vol.12,3 - 1x100 l/cm- vol.12,8 |
| Print Sleeves | 8 x 330 mm, 8x340, 8x350, 8x370, 8x400, complete with gears , additional sets of 8 gears each of following repeats 410,420, 450, 500, 520, 540, 560,600 |
