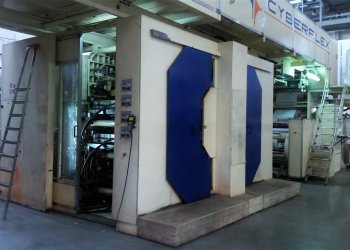

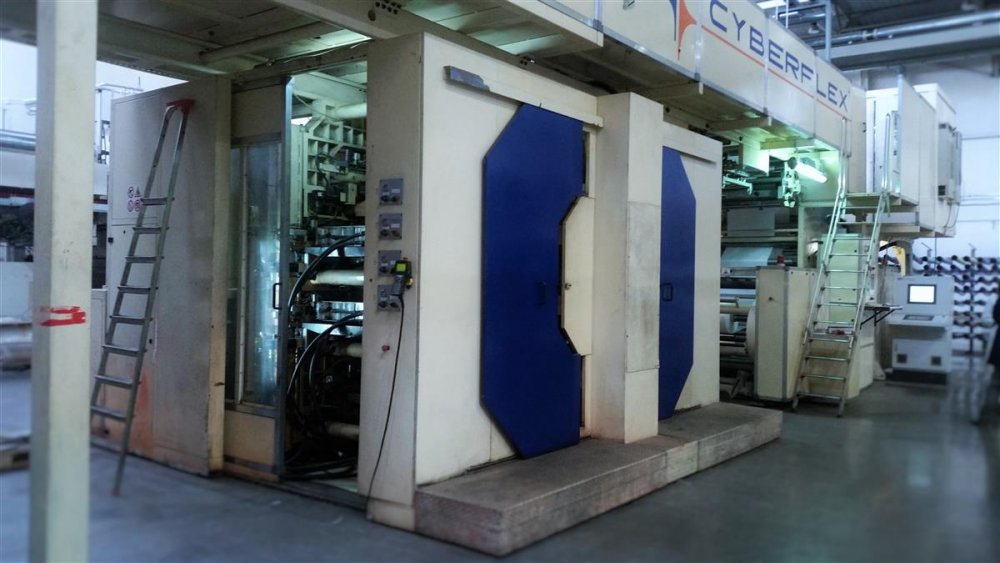

- Código Máquina
- FL634
- Constructor
- CARINT
- Modello
- CYBERFLEX (GEARLESS)
- Año
- 2004
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 800
- Unwinder type
- TURRET UATOMATIC
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- TURRET AUTOMATIC
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones- 4 fans- thermooil heaters -automatic recirculation system with MSA solvent concentration control
- Videocamera
- BST PREMIUS 3 ccd digital
- Web guides
- in and out BST EKR
- Vyscosity control
- Automatic by Gama
- Washing system
- YES
- Inking system
- closed chamber doctor blades
- Anilox
- 20 ceramic sleeves 6x320l/cm-vol.4,5; 1x320-vol.5; 1x320-vol.6; 1x320-vol.3,6; 1x220-vol8,6; 1x220-vol.6; 1x200-vol7; 2x180-vol.7; 1x160-vol.9,4; 2x160-vol.8,2; 1x140-vol.12; 1x140-vol.9,2; 3x120-vol.12,2 ; 1x100-vol16,5
- Print Sleeves
- 240 8 each repeats 380mm, 390,400,420,430,440,450,460,470,480,490,500,510,520, 540,560, 580, 600, 620, 640, 650, 660, 670, 680, 700, 720, 740, 760
| Código Máquina | FL634 |
| Constructor | CARINT |
| Modello | CYBERFLEX (GEARLESS) |
| Año | 2004 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 800 |
| Unwinder type | TURRET UATOMATIC |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | TURRET AUTOMATIC |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones- 4 fans- thermooil heaters -automatic recirculation system with MSA solvent concentration control |
| Videocamera | BST PREMIUS 3 ccd digital |
| Web guides | in and out BST EKR |
| Vyscosity control | Automatic by Gama |
| Washing system | YES |
| Inking system | closed chamber doctor blades |
| Anilox | 20 ceramic sleeves 6x320l/cm-vol.4,5; 1x320-vol.5; 1x320-vol.6; 1x320-vol.3,6; 1x220-vol8,6; 1x220-vol.6; 1x200-vol7; 2x180-vol.7; 1x160-vol.9,4; 2x160-vol.8,2; 1x140-vol.12; 1x140-vol.9,2; 3x120-vol.12,2 ; 1x100-vol16,5 |
| Print Sleeves | 240 8 each repeats 380mm, 390,400,420,430,440,450,460,470,480,490,500,510,520, 540,560, 580, 600, 620, 640, 650, 660, 670, 680, 700, 720, 740, 760 |
SOMA FLEX MIDI-127-8-EG
-
Código Máquina: FL1118
-
Año: 2007
-
Web width (mm): 1320

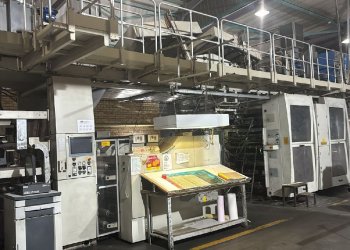

SCHIAVI EF4020
-
Código Máquina: FL0503
-
Año: 2004
-
Web width (mm): 1250

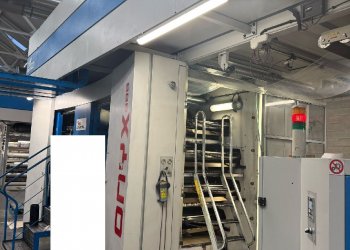

UTECO ONYX 808 GL
-
