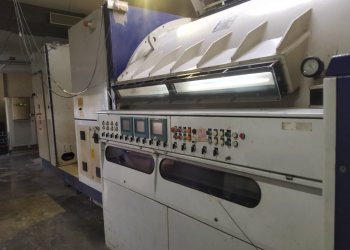

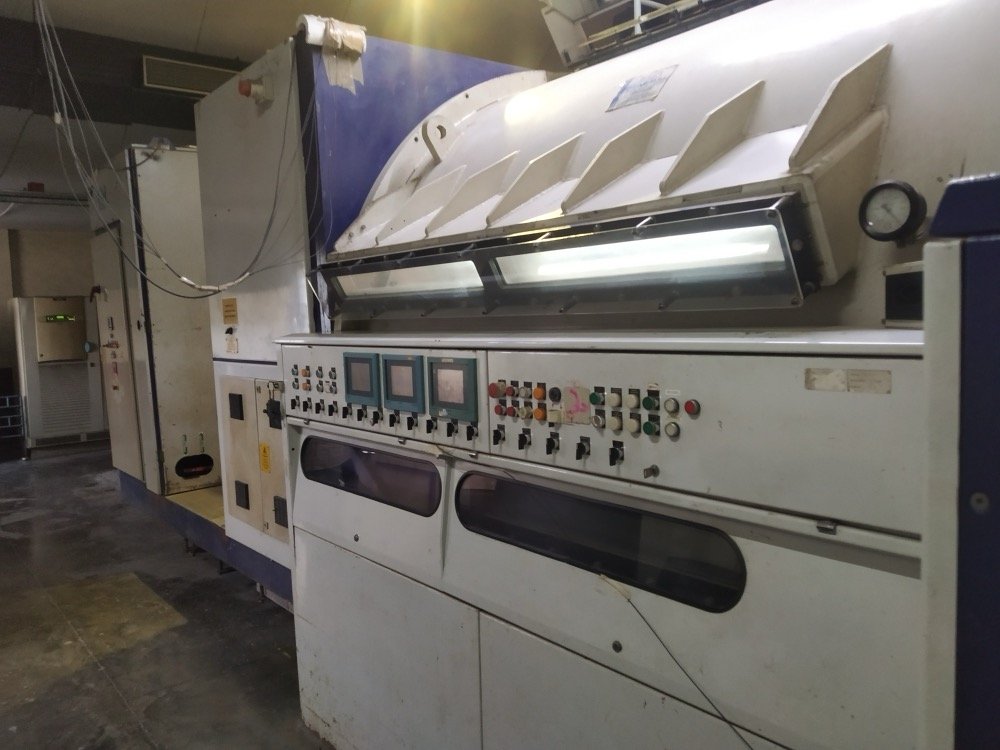

The process is carried out under high vacuum in a closed chamber, in which several boots located under a process roller are used to evaporate aluminium wires. This material condensates on the web, running close by these boots.
Ask more informations
- Machine Code
- ME89
- Manufacturer
- GENERAL VACUUM EQUIPMENT
- Modello
- HF 1450-112
- Year
- 1994
- Working width (mm)
- 1450
- Materials
- PET 20 -350 PVC 18`-350 Micron
- Max diameter reel unwinder
- 800
- Max diameter reel rewinder
- 800
- Evapouration Boots
- 14
- Pumping down time
- 5x10-4 mbar: less than 20 minutes

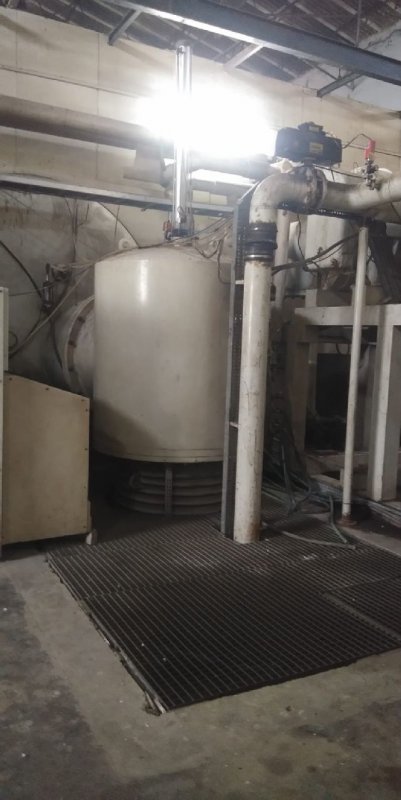

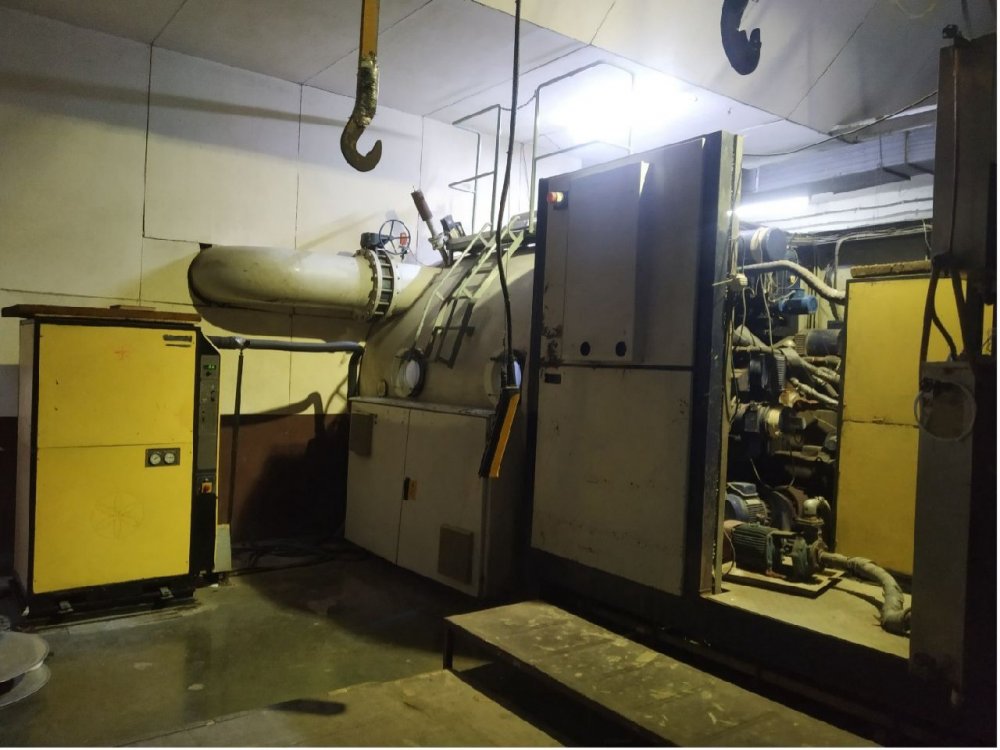

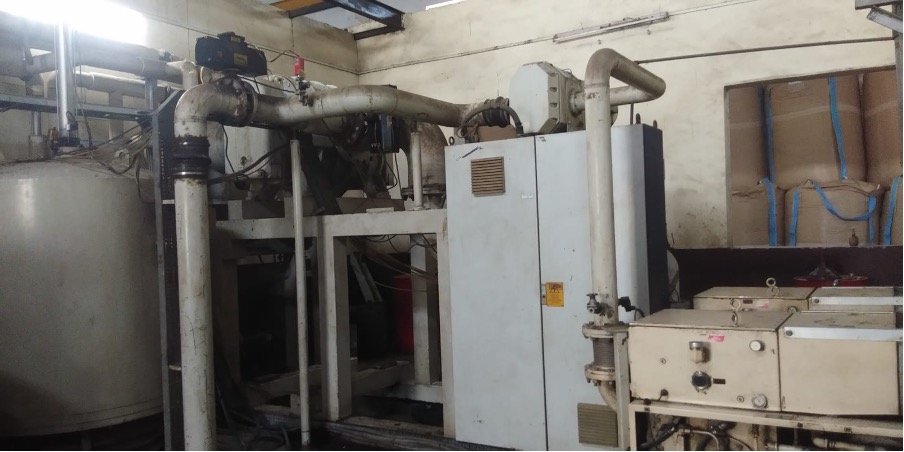

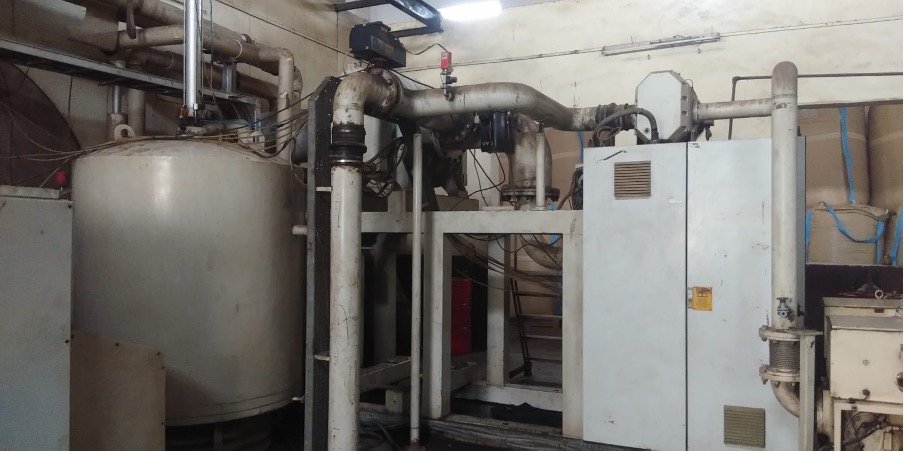

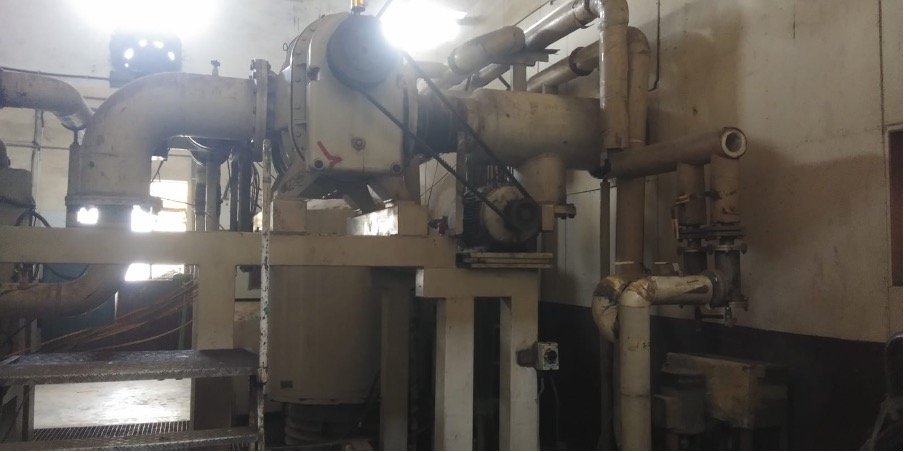

- Pumping system
- Diffusion pumps `USA 50000 l/sec (1 no), Roots pumps kinney USA 505m3/h(2 no). Winding chamber, Roots pumps Dresser Holmes13000 (2 no), Guard chamber, roots pumps 550m3/h, roots pumps 3000 m3/h (2 no).
- Plasma treatment
- No
- Polycold
- Two polycold 1100 PFC
| Machine Code | ME89 |
| Manufacturer | GENERAL VACUUM EQUIPMENT |
| Modello | HF 1450-112 |
| Year | 1994 |
| Working width (mm) | 1450 |
| Materials | PET 20 -350 PVC 18`-350 Micron |
| Max diameter reel unwinder | 800 |
| Max diameter reel rewinder | 800 |
| Evapouration Boots | 14 |
| Pumping down time | 5x10-4 mbar: less than 20 minutes |
| Pumping system | Diffusion pumps `USA 50000 l/sec (1 no), Roots pumps kinney USA 505m3/h(2 no). Winding chamber, Roots pumps Dresser Holmes13000 (2 no), Guard chamber, roots pumps 550m3/h, roots pumps 3000 m3/h (2 no). |
| Plasma treatment | No |
| Polycold | Two polycold 1100 PFC |
