The process is carried out under high vacuum in a closed chamber, in which several boots located under a process roller are used to evaporate aluminium wires. This material condensates on the web, running close by these boots.
Ask more informations
- Machine Code
- ME88
- Manufacturer
- GALILEO
- Modello
- MEGA 2410 A
- Year
- 2001
- Working width (mm)
- 2450
- Materials
- PET 8 - 60 microns OPP 15 - 60 microns PVC 20 - 80 microns HDPE 20 - 120 microns CPP 15 - 80 microns Paper
- Max diameter reel unwinder
- 1000
- Max diameter reel rewinder
- 1000
- Pumping system

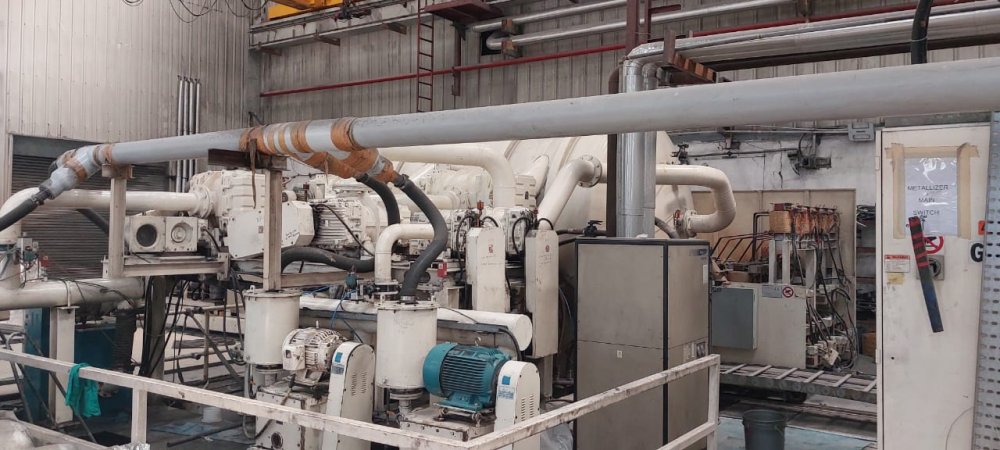

- 6 root vacuum pumps 4 mechanical pumps (Brand Kinney) 2 Cryogenic pumps (brand Polycold) 3 Diffusion pump
| Machine Code | ME88 |
| Manufacturer | GALILEO |
| Modello | MEGA 2410 A |
| Year | 2001 |
| Working width (mm) | 2450 |
| Materials | PET 8 - 60 microns OPP 15 - 60 microns PVC 20 - 80 microns HDPE 20 - 120 microns CPP 15 - 80 microns Paper |
| Max diameter reel unwinder | 1000 |
| Max diameter reel rewinder | 1000 |
| Pumping system | 6 root vacuum pumps 4 mechanical pumps (Brand Kinney) 2 Cryogenic pumps (brand Polycold) 3 Diffusion pump |
