** SOLD **

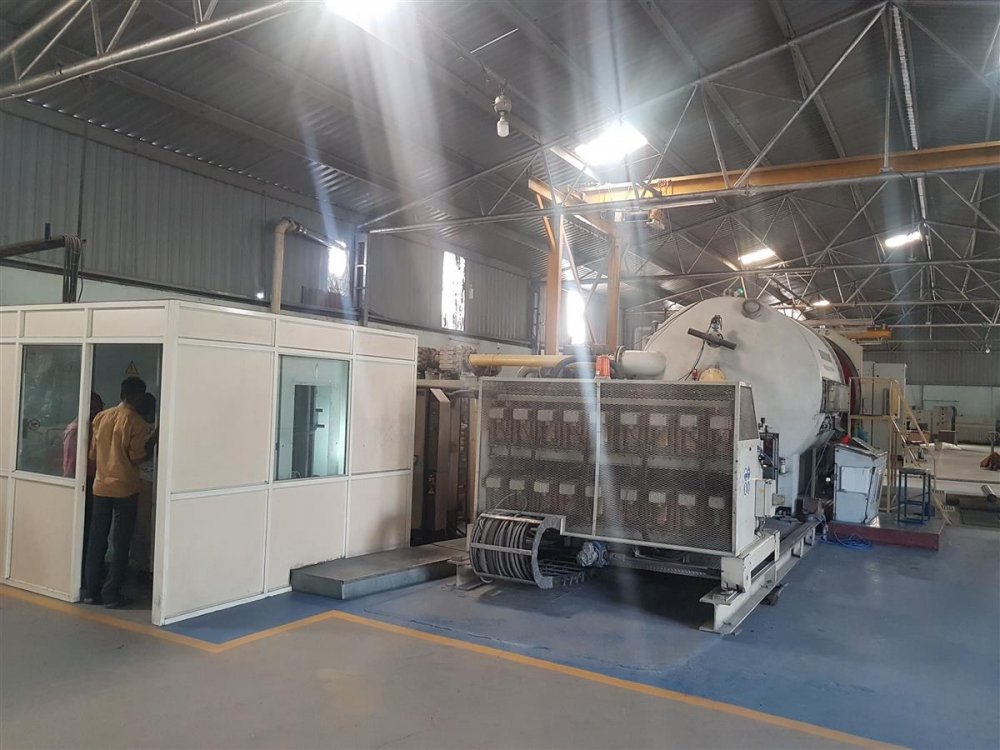

The process is carried out under high vacuum in a closed chamber, in which several boots located under a process roller are used to evaporate aluminium wires. This material condensates on the web, running close by these boots.
Ask more informations
about a similar one
- Machine Code
- ME74
- Manufacturer
- GALILEO
- Modello
- V8-16/P
- Year
- 2006
- Working width (mm)
- 1650
- Speed
- 840 m/min
- Max diameter reel unwinder
- 1000 mm
- Max diameter reel rewinder
- 1000 mm

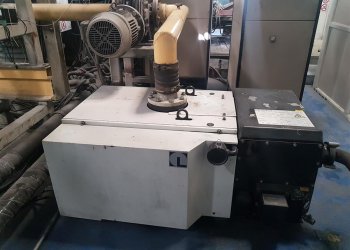

- Pumping system
- 1) Root pump 11600 m³/h #1 2) Root pump 2420 m³/h #2 3) Root pump 1200 m³/h #1 4) Root pump 4500 m³/h #1 (lumpsum) 5) Rotary pump Dryvac650s 650 m³/h #2 6) Rotary pump sv630 B (F) 640 m³/h #1 7) Varian HS35 Diffusion pump 50k L/s #2 8) Brooks polycold #2
- Note
- Drive 4 AC motors, 3 chambers design
| Machine Code | ME74 |
| Manufacturer | GALILEO |
| Modello | V8-16/P |
| Year | 2006 |
| Working width (mm) | 1650 |
| Speed | 840 m/min |
| Max diameter reel unwinder | 1000 mm |
| Max diameter reel rewinder | 1000 mm |
| Pumping system | 1) Root pump 11600 m³/h #1 2) Root pump 2420 m³/h #2 3) Root pump 1200 m³/h #1 4) Root pump 4500 m³/h #1 (lumpsum) 5) Rotary pump Dryvac650s 650 m³/h #2 6) Rotary pump sv630 B (F) 640 m³/h #1 7) Varian HS35 Diffusion pump 50k L/s #2 8) Brooks polycold #2 |
| Note | Drive 4 AC motors, 3 chambers design |
