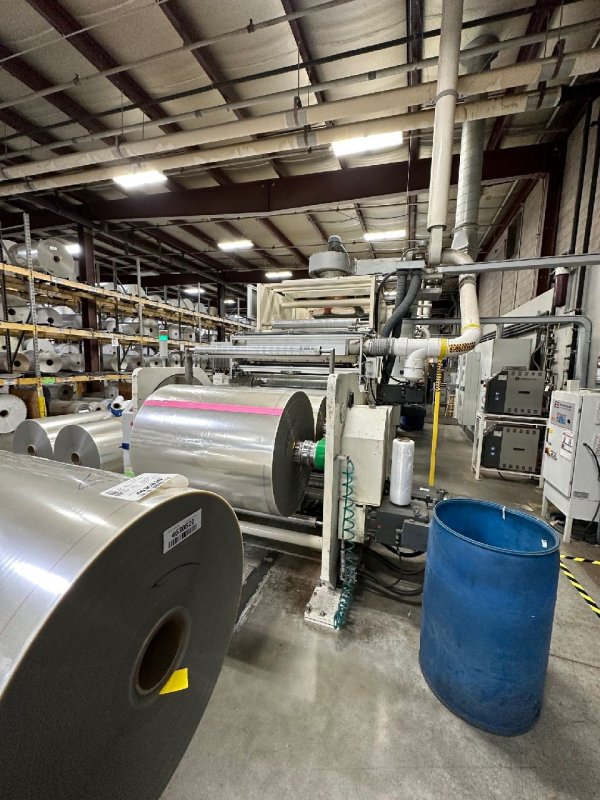

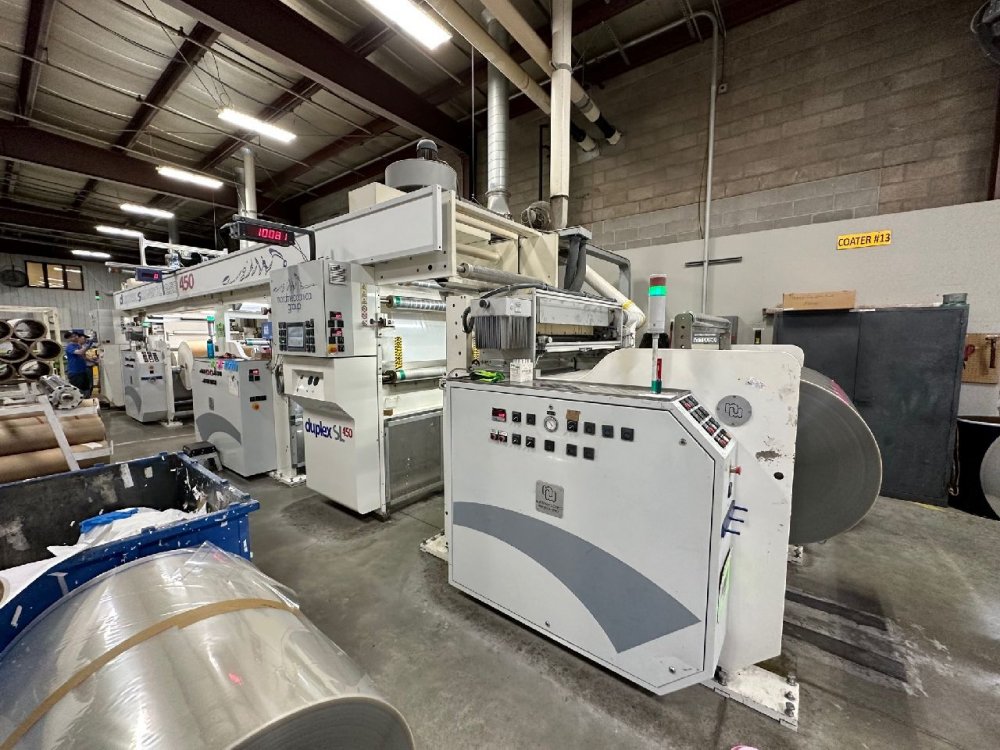

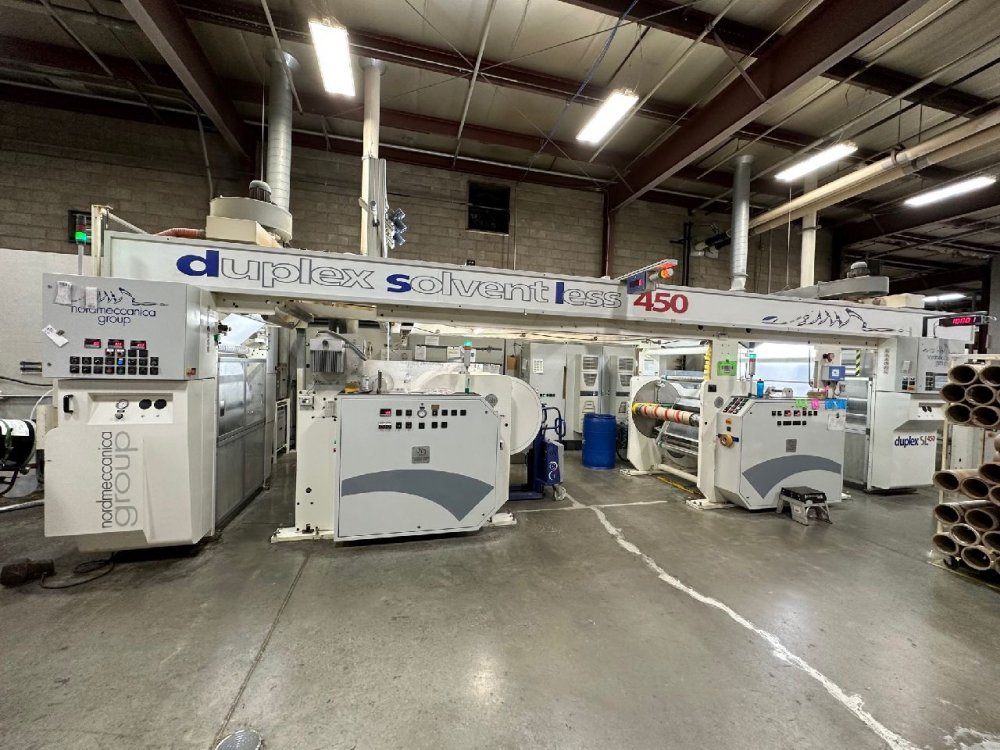

NORDMECCANICA DUPLEX SL 450 Laminator / coating machine Solventless // Laminators and coaters // Converting machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

Depending on their construction and the construction of their coating units, laminators can apply different types of glue.

Ask more informations

Machine Code: LA429
Manufacturer: NORDMECCANICA
Modello: DUPLEX SL 450
Year: 2017
Application: Duplex lamination
Type of lamination/coating: Solventless
Working width (mm): 1100
Materials: BOPP, PET, CPP, Al foil, LDPE , paper up to 120 gsm
Speed: 450 mpm
First unwinder type: Turret automatic non stop
Max diameter reel unwinder: 800
Secondary unwinder type: Turret automatic non stop
Max diameter reel unwinder: 800
Rewinder type: Turret automatic non stop
Max diameter reel rewinder: 1000
Coating unit: Solventless 5 rollers staggered
pumping mixing unit: yes included
Corona treatment: yes
Coating rollers: 20 rubber transfer rollers

Machine Code	LA429
Manufacturer	NORDMECCANICA
Modello	DUPLEX SL 450
Year	2017
Application	Duplex lamination
Type of lamination/coating	Solventless
Working width (mm)	1100
Materials	BOPP, PET, CPP, Al foil, LDPE , paper up to 120 gsm
Speed	450 mpm
First unwinder type	Turret automatic non stop
Max diameter reel unwinder	800
Secondary unwinder type	Turret automatic non stop
Max diameter reel unwinder	800
Rewinder type	Turret automatic non stop
Max diameter reel rewinder	1000
Coating unit	Solventless 5 rollers staggered
pumping mixing unit	yes included
Corona treatment	yes
Coating rollers	20 rubber transfer rollers
