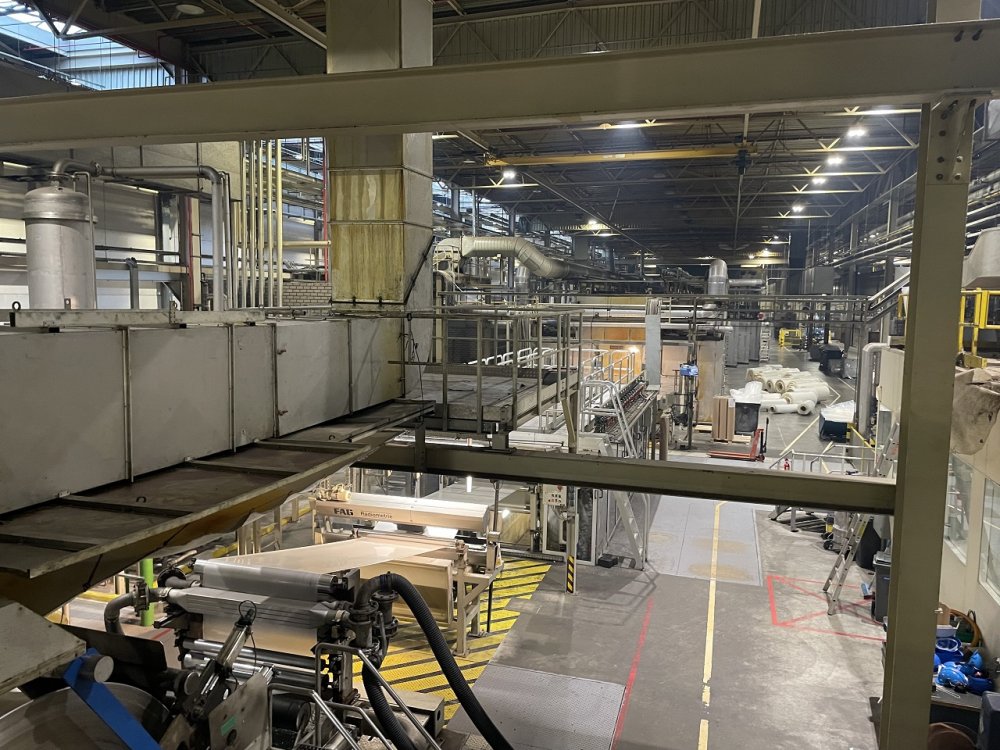

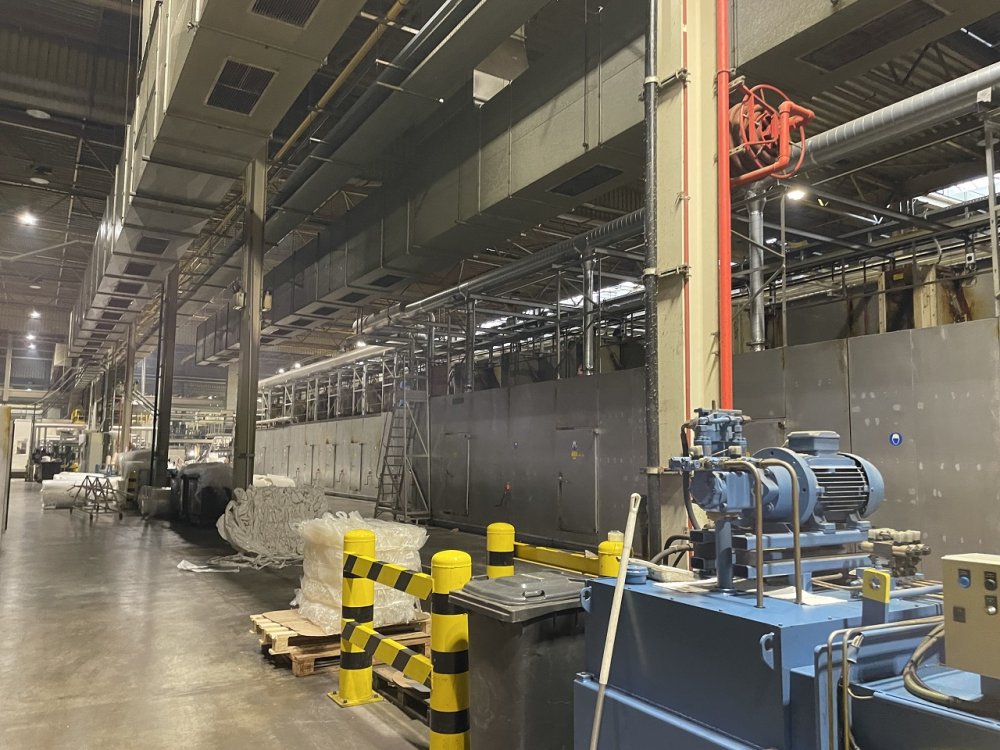

Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
Ask more informations
- Machine Code
- BO80
- Manufacturer
- BRUCKNER - DORNIER
- Year
- 1994
- Number of layers
- 3
- Film structure
- ABC
- Material
- BOPP
- Output
- design speed 350 m/min. Extruder's melting capacity 4800 kg/h Produced in past approx 23 ktons/y . Actual output depends on specific product mix and uptime
- Width (mm)
- 8400

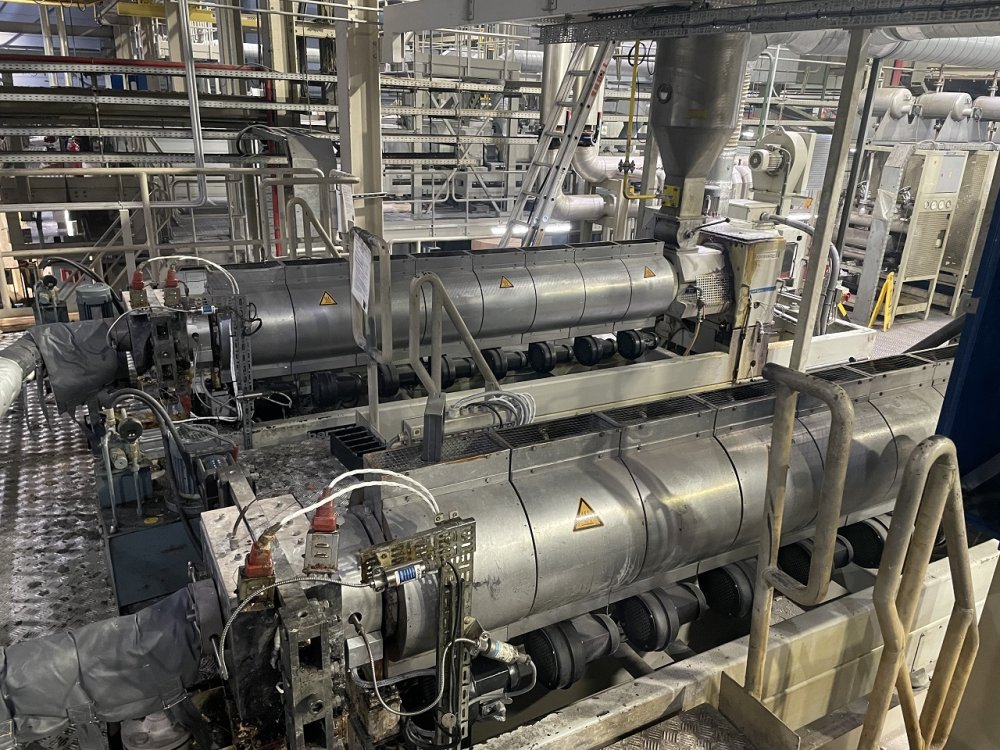

- Extruder 1 Description
- Mitsubishi, cascade extruder. 250mm diam. Feeding and mixing system. 5 large hoppers
- Extruder 2 Description
- Barmag single screw. 180 kg/h Ktron 2 component gravimetric doser
- Extruder 3 Description
- Barmag single screw. 180 kg/h Ktron 2 component gravimetric doser
- Head description
- EDI Autoflex IV
- Die width
- 1168
- Thickness controll system
- 2 thickness gauges, one afetr chill roll, one on pull roll unit. Make FAG, source: Strontium 90. Automatic thickness profile controll on die head.

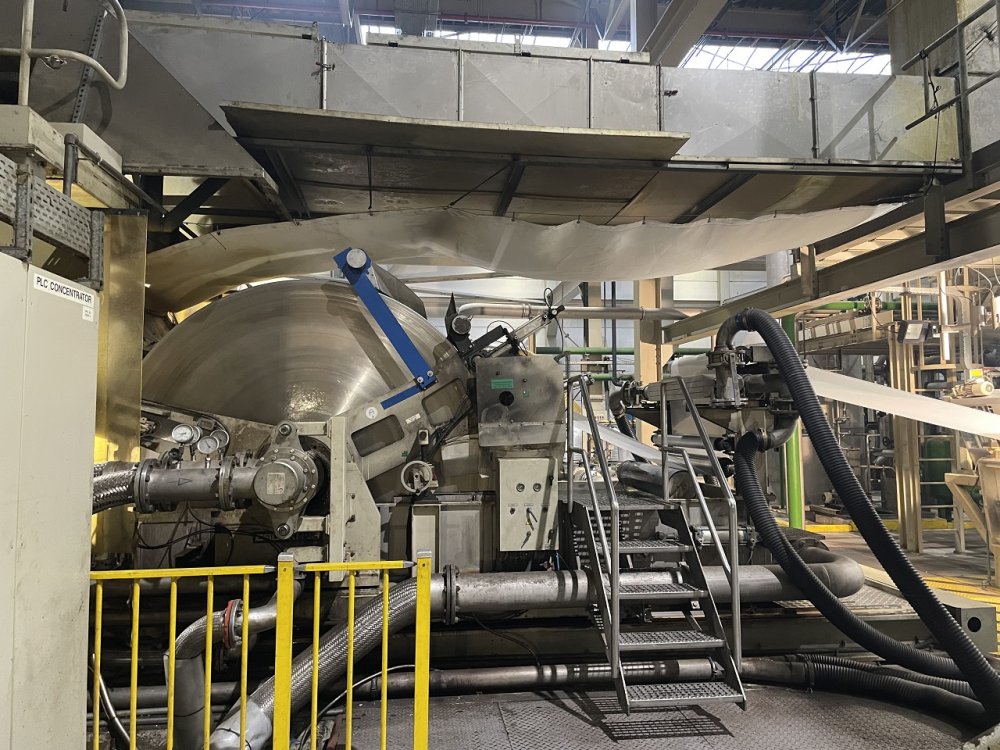

- Chill roll unit
- Bruckner. 2600mm diam in water bath with water degassification system

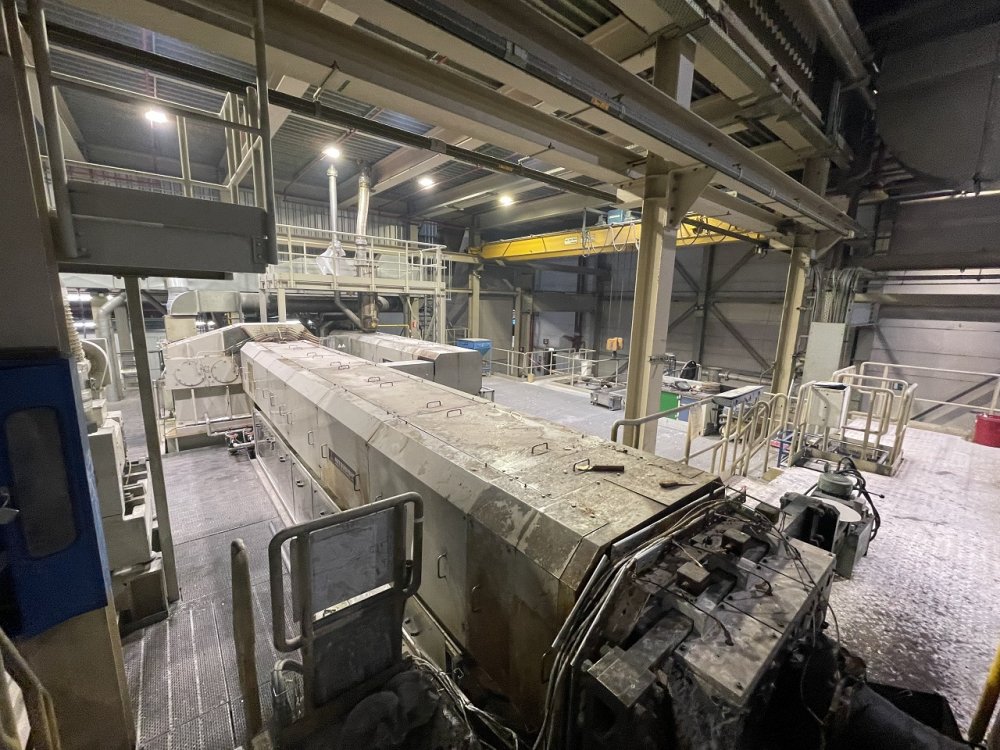

- MDO description
- Bruckner. Pre heating 16 cylinders. 4 stretching nips, 4 roller anealing

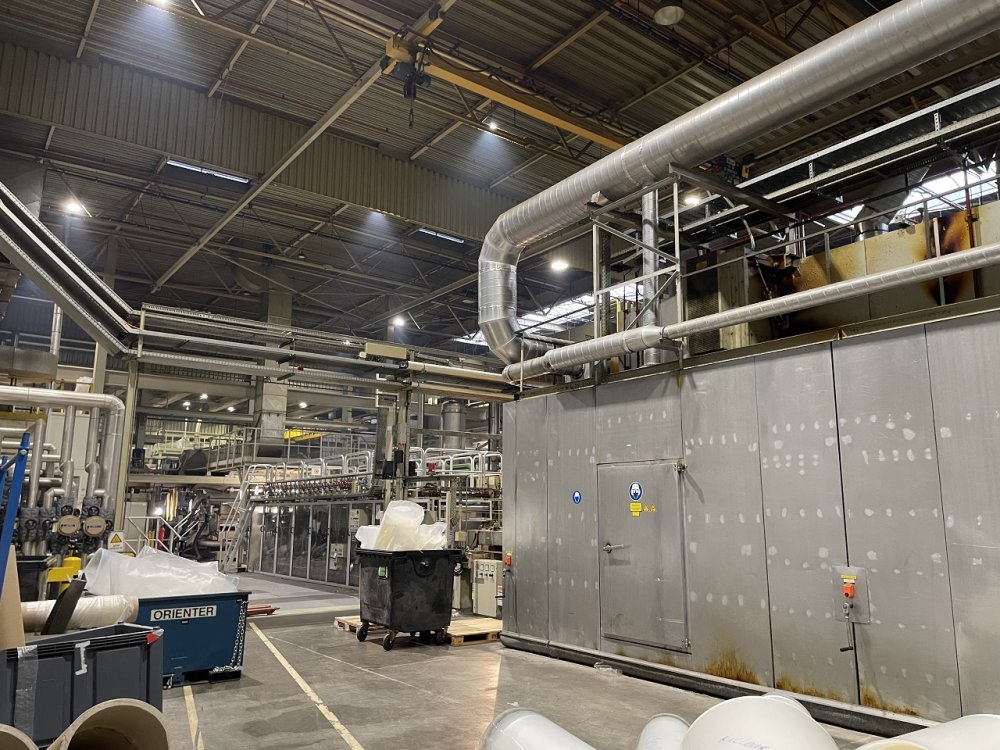

- TDO description
- Dornier 9-roller HS-clips with roller bearings. ventilation of TDO renovated in 2020 with new ac motors and inverters
- Corona treatment
- bottom corona treatment

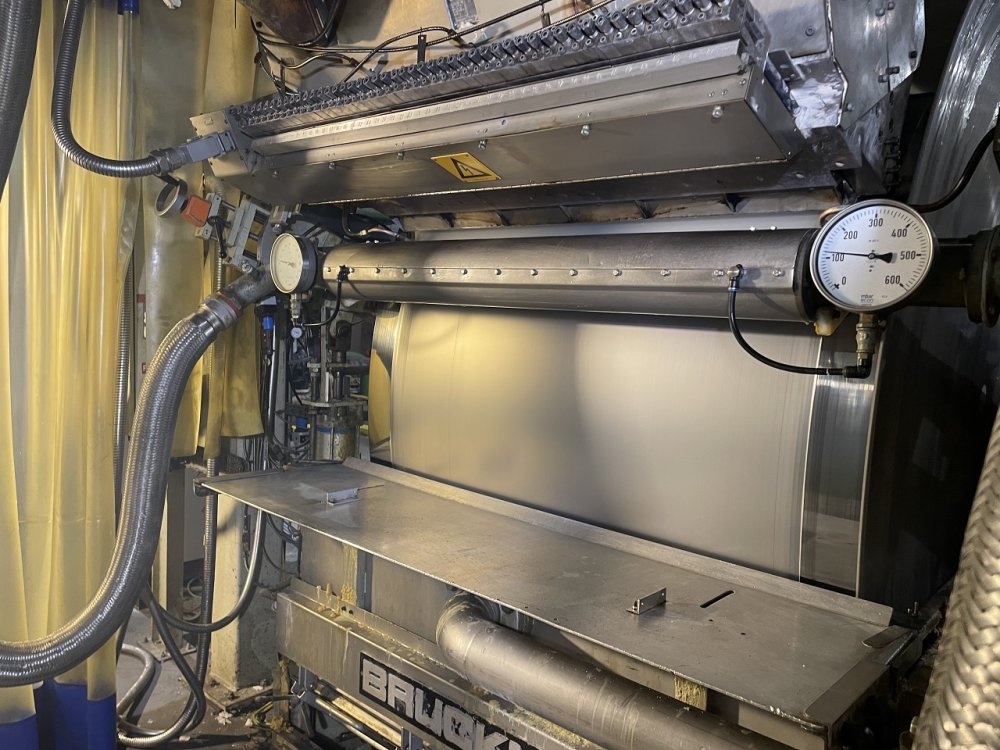

- Flame treatment
- Top and bottom flame treatment. Make Esseci
- Rewinder width
- 8300

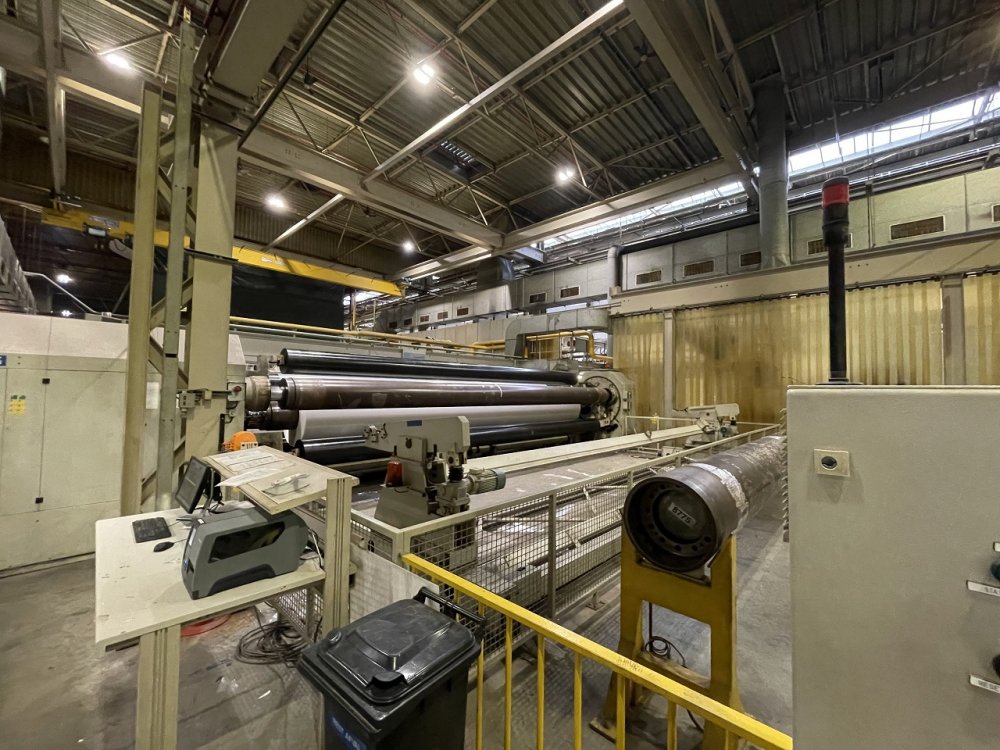

- Rewinder description
- Kampf turret winder with automatic reel unloading system

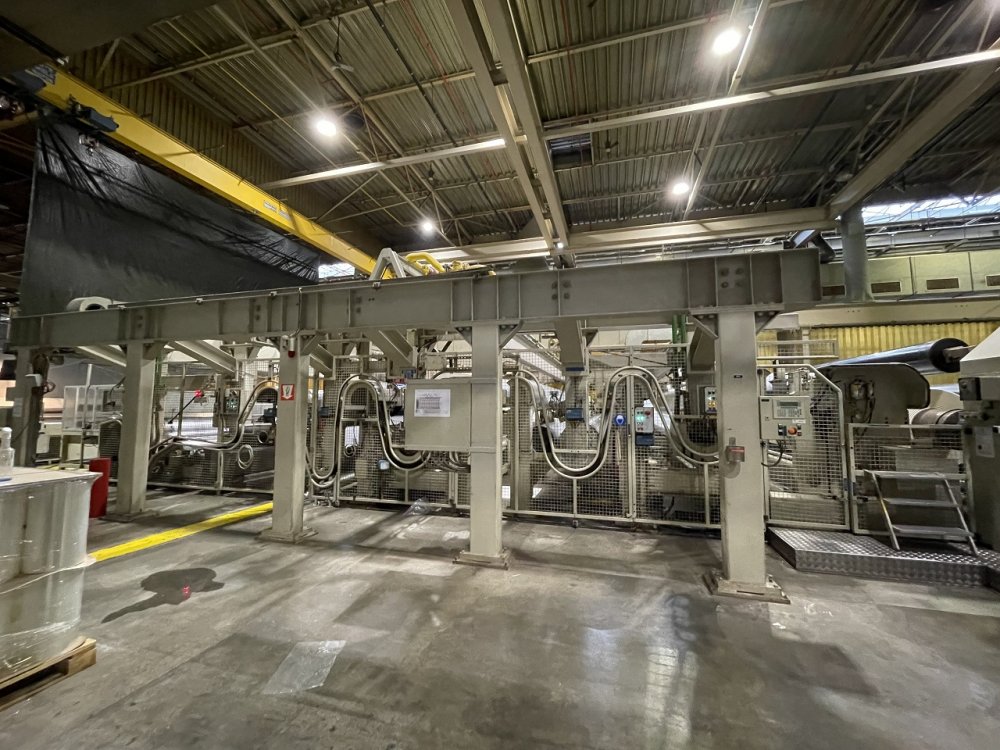

- Slitter
- Goebel Monslit. Max width 8400mm. Max input reel daim: 1200mm. Rewinder with independent winding stations, center driven, max winding width 2300mm, 14 winding arms
- Note
- -Silos - Oil oven - Roof crane - approx 100 cres
