** SOLD **
Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
Ask more informations
about a similar one
- Machine Code
- BO76
- Manufacturer
- BRUCKNER - DORNIER
- Year
- 1994
- Number of layers
- 5
- Film structure
- ABCBD
- Material
- BOPP
- Output
- 350 m/min , tot extruder's capacity 5.800 kg/h, average yearly output approx 22ktons/y (depending on product mix)
- Width (mm)
- 8300

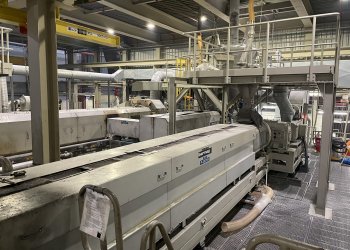

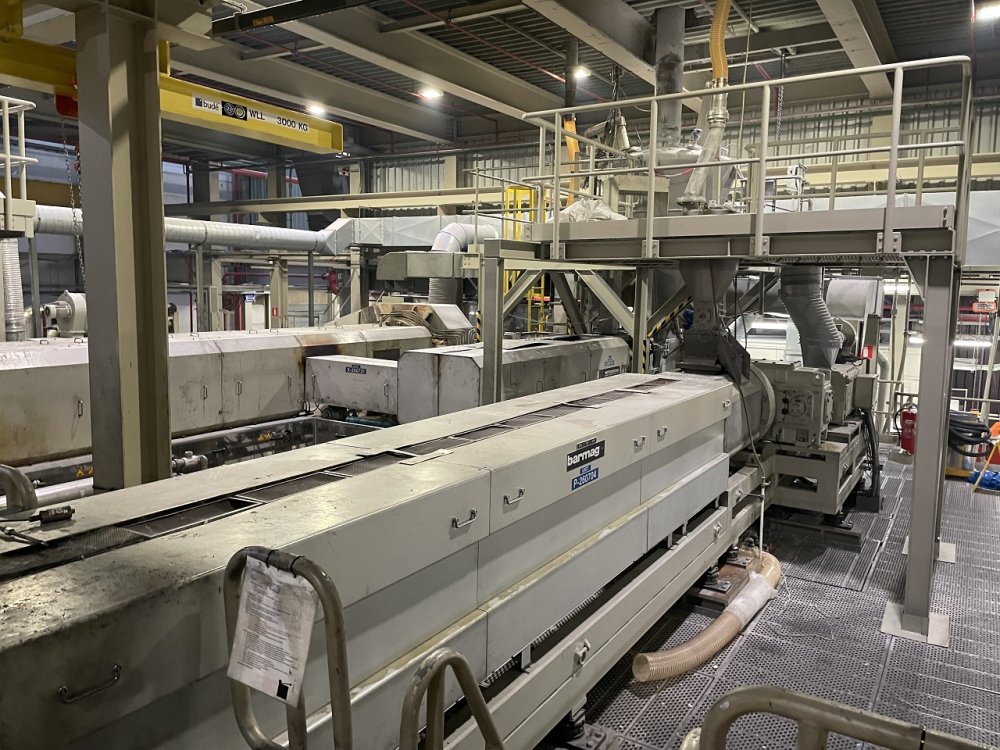

- Extruder 1 Description
- A- single screw extruder, Make Barmag. output approx 200kg/h, K-tron gravimetric dosing system
- Extruder 2 Description
- B- single screw extruder, Make Barmag. output approx 900kg/h, K-tron gravimetric dosing system

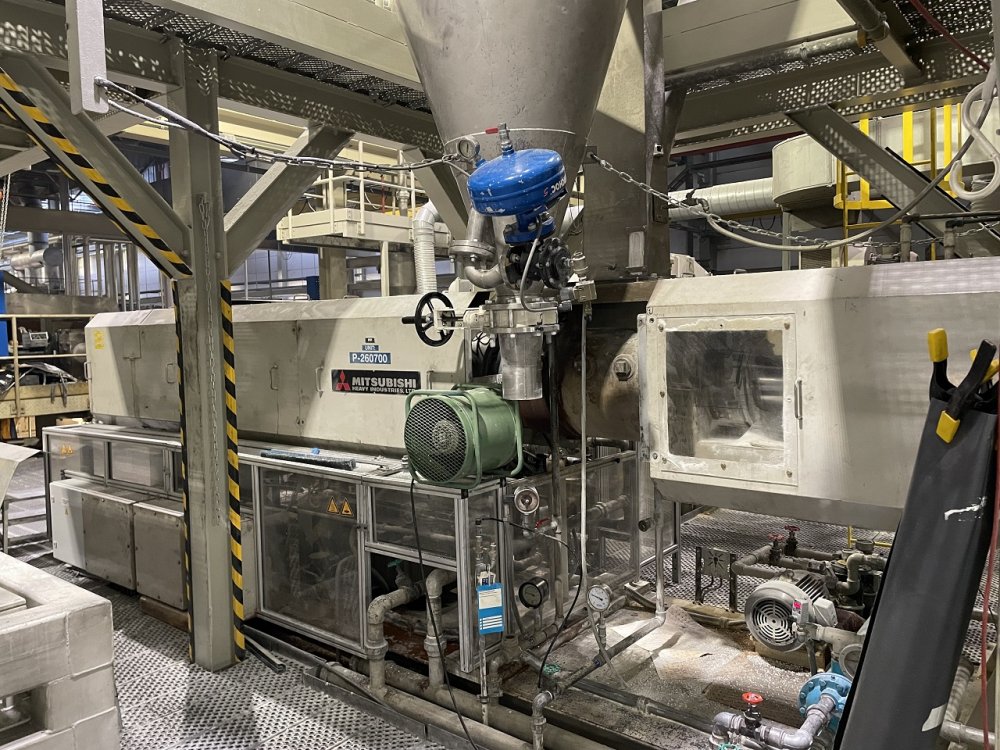

- Extruder 3 Description
- C - Main extruder. Cascade type. Make Mitsubishi. output 4.400 kg/h. K-trom gravimetri c doser
- Extruder 4 Description
- D- single screw extruder, Make Barmag. output approx 200kg/h, K-tron gravimetric dosing system
- Head description
- Automatic die make Cloren mod: Epoch IV
- Die width
- 1220mm
- Thickness controll system
- Automatic. 2 thicknes gauges, one after casting and one after stretching. FirstThickness gauge make FAG, beta rays with Strontium 90 source, Second thickness gauge make FAG/Thermofisher , beta rays with Prometium 147 source
- Chill roll unit
- Water bath type chill roller. diam 2600mm

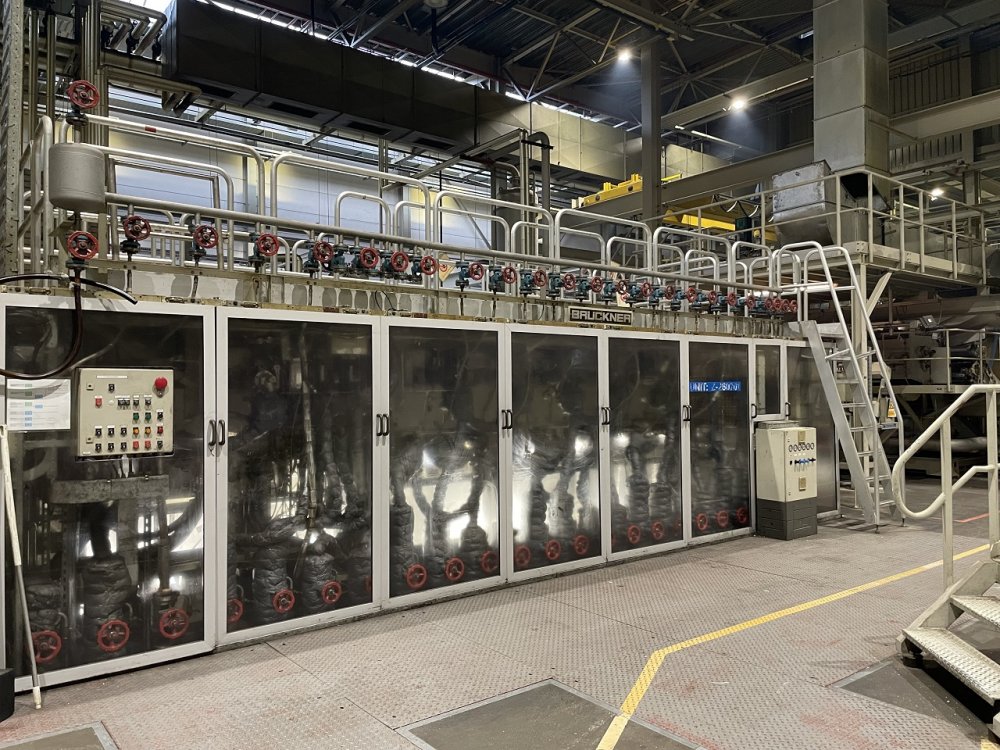

- MDO description
- 29.4 m pre heating ,15.7m stretching, 25.8m anealing

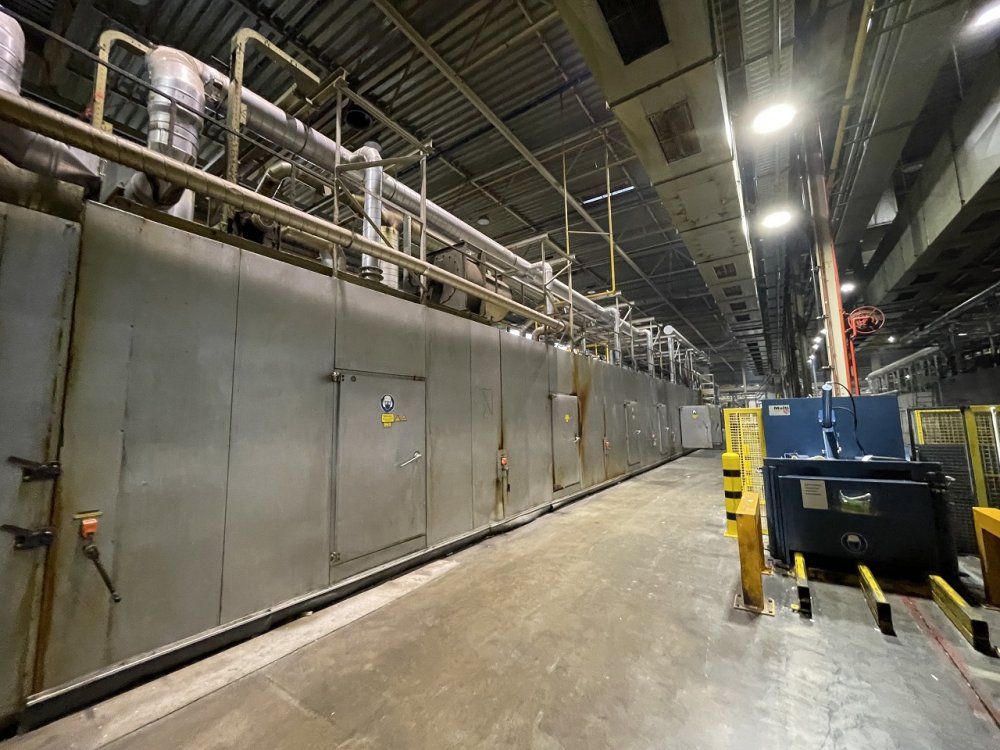

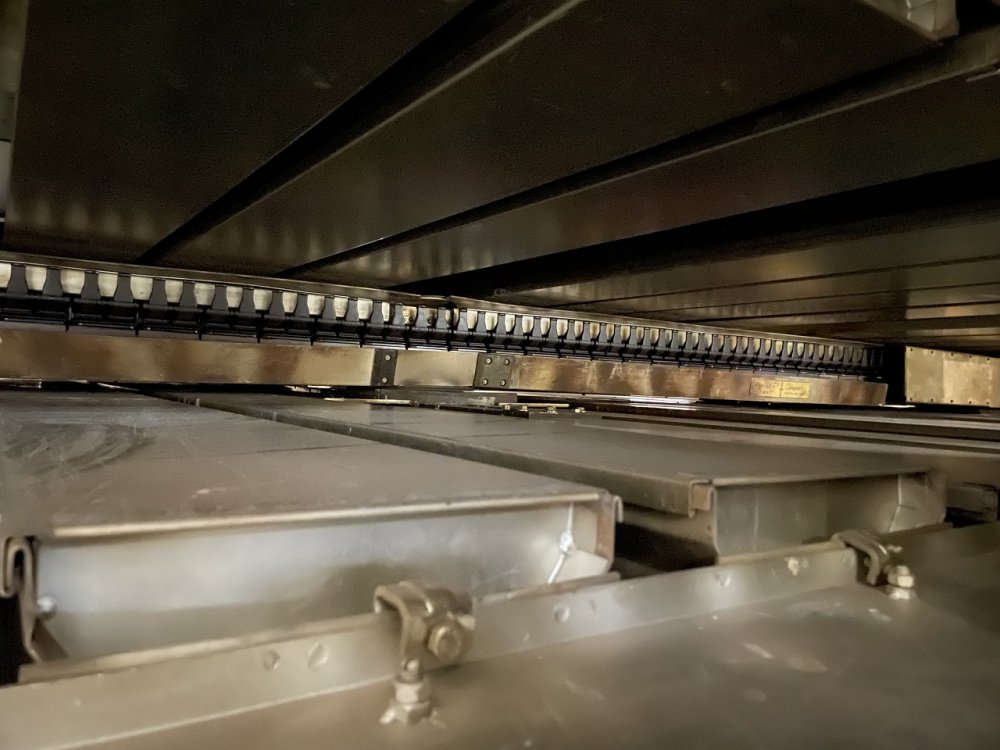

- TDO description
- Make dornier with 9 roller HS clips
- Corona treatment
- yes, Softal for bottom
- Flame treatment
- yes. Make Esseci for top
- Pull roll unit
- Isra vision quality contro year 2020
- Rewinder width
- 8300mm

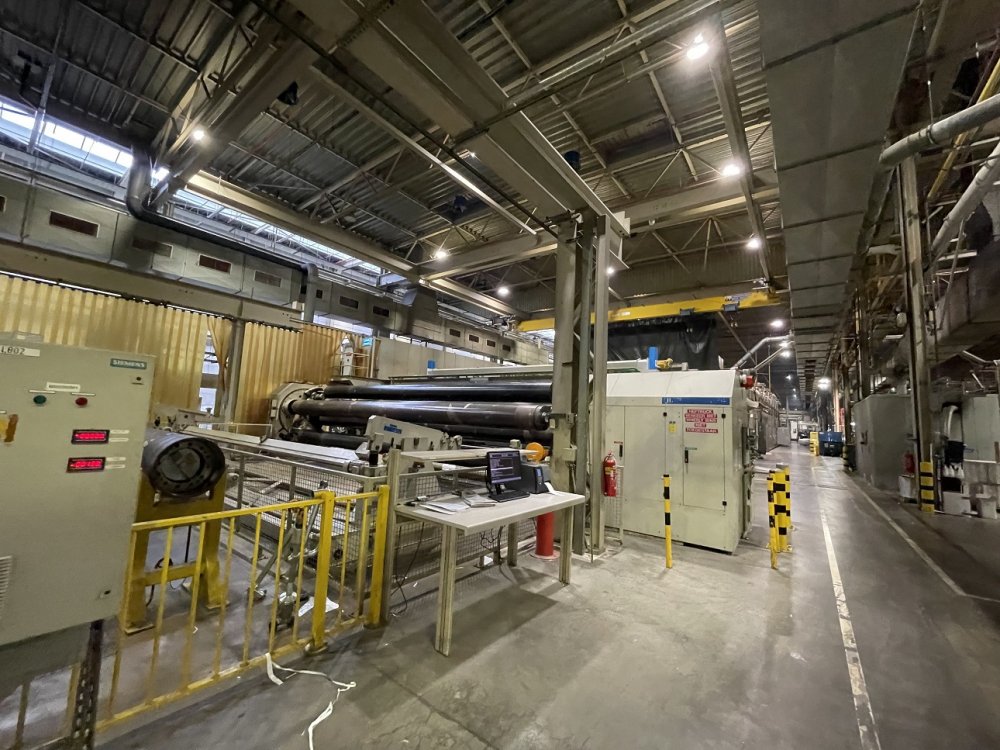

- Rewinder description
- max 1200mm
- Slitter
- GOEBEL Monslit slitter reqinder. width 8400mm. max inbput diam 1200mm. reqinder with independent winding stations. Heavy duty winding arms. max winded reel width 3300 mm. Max winded reel diam 1200mm
- Note
- Including - oil heater - Material mixing, drying and dosing system - Overhead crane
| Machine Code | BO76 |
| Manufacturer | BRUCKNER - DORNIER |
| Year | 1994 |
| Number of layers | 5 |
| Film structure | ABCBD |
| Material | BOPP |
| Output | 350 m/min , tot extruder's capacity 5.800 kg/h, average yearly output approx 22ktons/y (depending on product mix) |
| Width (mm) | 8300 |
| Extruder 1 Description | A- single screw extruder, Make Barmag. output approx 200kg/h, K-tron gravimetric dosing system |
| Extruder 2 Description | B- single screw extruder, Make Barmag. output approx 900kg/h, K-tron gravimetric dosing system |
| Extruder 3 Description | C - Main extruder. Cascade type. Make Mitsubishi. output 4.400 kg/h. K-trom gravimetri c doser |
| Extruder 4 Description | D- single screw extruder, Make Barmag. output approx 200kg/h, K-tron gravimetric dosing system |
| Head description | Automatic die make Cloren mod: Epoch IV |
| Die width | 1220mm |
| Thickness controll system | Automatic. 2 thicknes gauges, one after casting and one after stretching. FirstThickness gauge make FAG, beta rays with Strontium 90 source, Second thickness gauge make FAG/Thermofisher , beta rays with Prometium 147 source |
| Chill roll unit | Water bath type chill roller. diam 2600mm |
| MDO description | 29.4 m pre heating ,15.7m stretching, 25.8m anealing |
| TDO description | Make dornier with 9 roller HS clips |
| Corona treatment | yes, Softal for bottom |
| Flame treatment | yes. Make Esseci for top |
| Pull roll unit | Isra vision quality contro year 2020 |
| Rewinder width | 8300mm |
| Rewinder description | max 1200mm |
| Slitter | GOEBEL Monslit slitter reqinder. width 8400mm. max inbput diam 1200mm. reqinder with independent winding stations. Heavy duty winding arms. max winded reel width 3300 mm. Max winded reel diam 1200mm |
| Note | Including - oil heater - Material mixing, drying and dosing system - Overhead crane |
