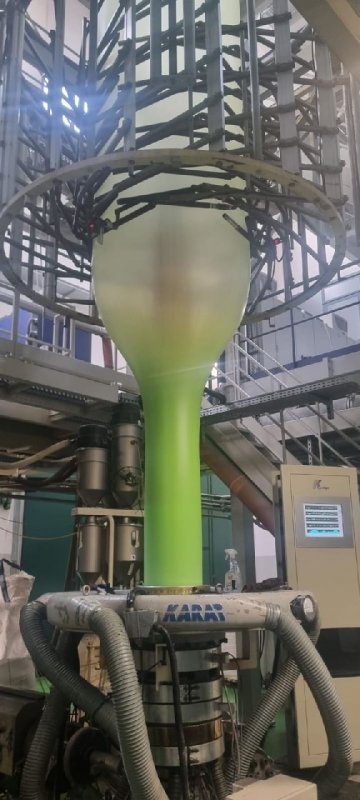

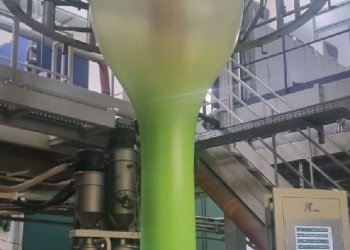

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.
Ask more informations
- Machine Code
- EX766
- Manufacturer
- MAM
- Modello
- Z 2400 DW-SLW LD
- Year
- 2015
- Number of layers
- 3
- Film structure
- ABC
- Material
- HDPE
- Film Width
- 2400
- Output (Kg/h)
- 250 kg/h
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 63.5
- Description 1
- Gravimetric doser 4 components
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 80mm
- Description 2
- Gravimetric doser 4 components
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 63.5mm
- Description 3
- Gravimetric doser 4 components
- Head description
- IBC
- Die diam (mm)
- 275mm
- Thickness controll system
- K Design
- Bubble cage
- Yes
- Take off unit
- Rotaring take off,2600mm
- Corona treatment
- Yes

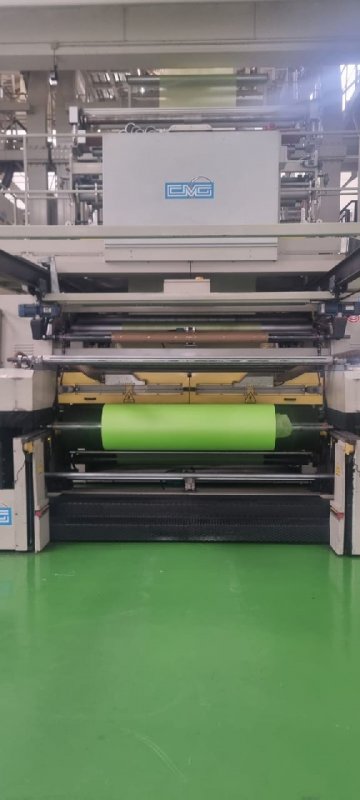

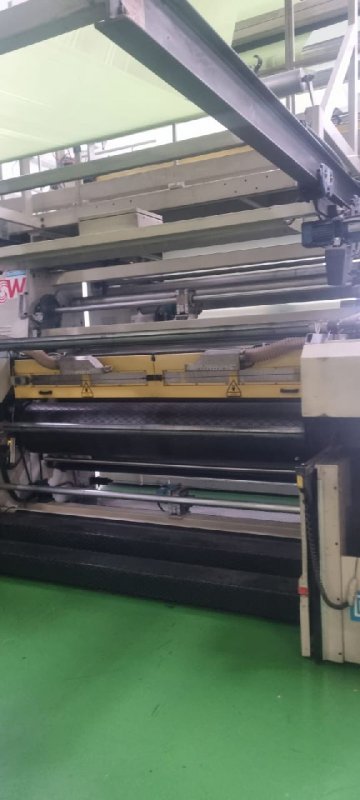

- Rewinder Type
- Double back to back
- Rewinder description
- mod. LSWW width 2450mm
- Note
- CHILLER IBC and air ring K Design
| Machine Code | EX766 |
| Manufacturer | MAM |
| Modello | Z 2400 DW-SLW LD |
| Year | 2015 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | HDPE |
| Film Width | 2400 |
| Output (Kg/h) | 250 kg/h |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 63.5 |
| Description 1 | Gravimetric doser 4 components |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 80mm |
| Description 2 | Gravimetric doser 4 components |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 63.5mm |
| Description 3 | Gravimetric doser 4 components |
| Head description | IBC |
| Die diam (mm) | 275mm |
| Thickness controll system | K Design |
| Bubble cage | Yes |
| Take off unit | Rotaring take off,2600mm |
| Corona treatment | Yes |
| Rewinder Type | Double back to back |
| Rewinder description | mod. LSWW width 2450mm |
| Note | CHILLER IBC and air ring K Design |
