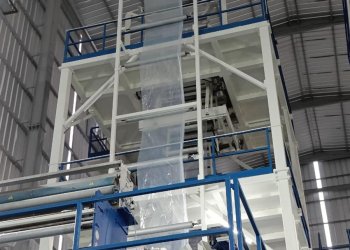

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.
Ask more informations
- Machine Code
- EX763
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- OPTIMEX
- Year
- 2014
- Number of layers
- 3
- Film structure
- ABC
- Material
- LDPE, LLDPE
- Film Width
- 2200
- Note
- The extruder combination mainly comprises: - direct drive with maintenance-free AC motors and thermally very stable and water-cooled frequency inverters -grooved bush temperature controller for homogenizing of the feed rate depending on the raw material(s) (incl. central water temperature control unit) -low-temperature barrier screw (design: LT, screw length 30D) for an excellent, homogeneous melt quality -screw and feed barrel in long-lasting, low-wear material combination -operation and data display provided at the operator station PROCONTROL Line speed max. - 150 m/min SCREEN CHANGER FANS FOR FILM COOOLING MAGNET SEPARATOR for the extruder combination 70/90/70.30D
| Machine Code | EX763 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | OPTIMEX |
| Year | 2014 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | LDPE, LLDPE |
| Film Width | 2200 |
| Note | The extruder combination mainly comprises: - direct drive with maintenance-free AC motors and thermally very stable and water-cooled frequency inverters -grooved bush temperature controller for homogenizing of the feed rate depending on the raw material(s) (incl. central water temperature control unit) -low-temperature barrier screw (design: LT, screw length 30D) for an excellent, homogeneous melt quality -screw and feed barrel in long-lasting, low-wear material combination -operation and data display provided at the operator station PROCONTROL Line speed max. - 150 m/min SCREEN CHANGER FANS FOR FILM COOOLING MAGNET SEPARATOR for the extruder combination 70/90/70.30D |
