** SOLD **
Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
about a similar one
- Machine Code
- CA225
- Manufacturer
- TECHNO COATING ENGINEERING
- Modello
- HI TECH CAST LINE
- Year
- 2000
- Number of layers
- 3
- Film structure
- ABC
- Material
- Stretch film LLDPE
- Film width (mm)
- 2000
- Speed (m/min)
- 600 m/min
- Output (Kg/h)
- 500/550 kg/h
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 130 mm
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 65 mm
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 65 mm

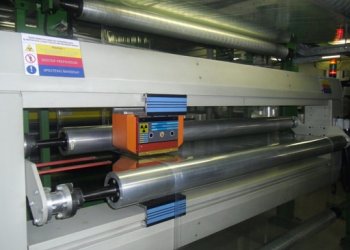

- Chill roll unit
- with 2 cylinders 850 mm and 315 mm
- Rewinder max reel diameter (mm)
- 2000 mm
- Rewinder description
- Rewinder with electro-welded and machined structure
| Machine Code | CA225 |
| Manufacturer | TECHNO COATING ENGINEERING |
| Modello | HI TECH CAST LINE |
| Year | 2000 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | Stretch film LLDPE |
| Film width (mm) | 2000 |
| Speed (m/min) | 600 m/min |
| Output (Kg/h) | 500/550 kg/h |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 130 mm |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 65 mm |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 65 mm |
| Chill roll unit | with 2 cylinders 850 mm and 315 mm |
| Rewinder max reel diameter (mm) | 2000 mm |
| Rewinder description | Rewinder with electro-welded and machined structure |

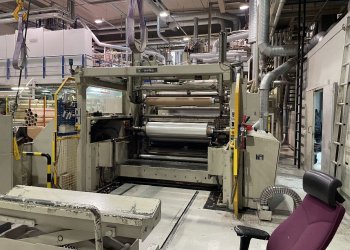

REIFENHAUSER MIDEX 3
-
