Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA148
- Manufacturer
- EGAN
- Year
- 1991
- Number of layers
- 3
- Film structure
- ABA
- Material
- CPP
- Film width (mm)
- 1626
- Extruder 1 Layer ref:
- A
- Extruder 2 Layer ref:
- B
- Head description
- EDI automatic die
- Die width (mm)
- 1981
- Rewinder max reel diameter (mm)
- 914
- Rewinder description
- Turret
- Note

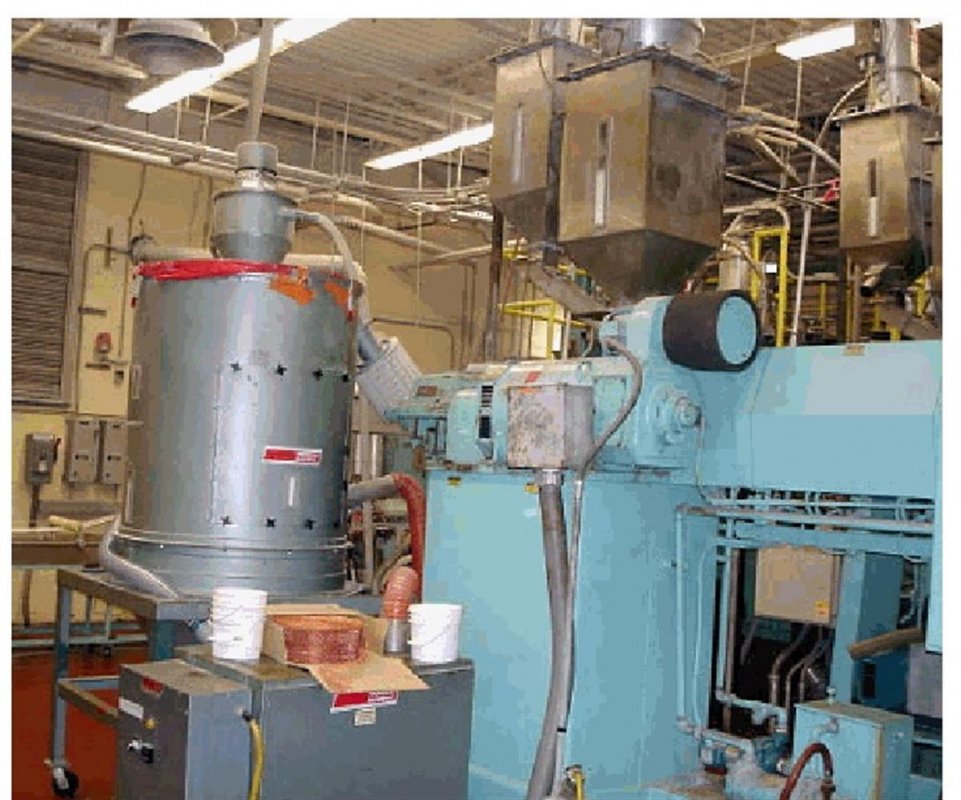

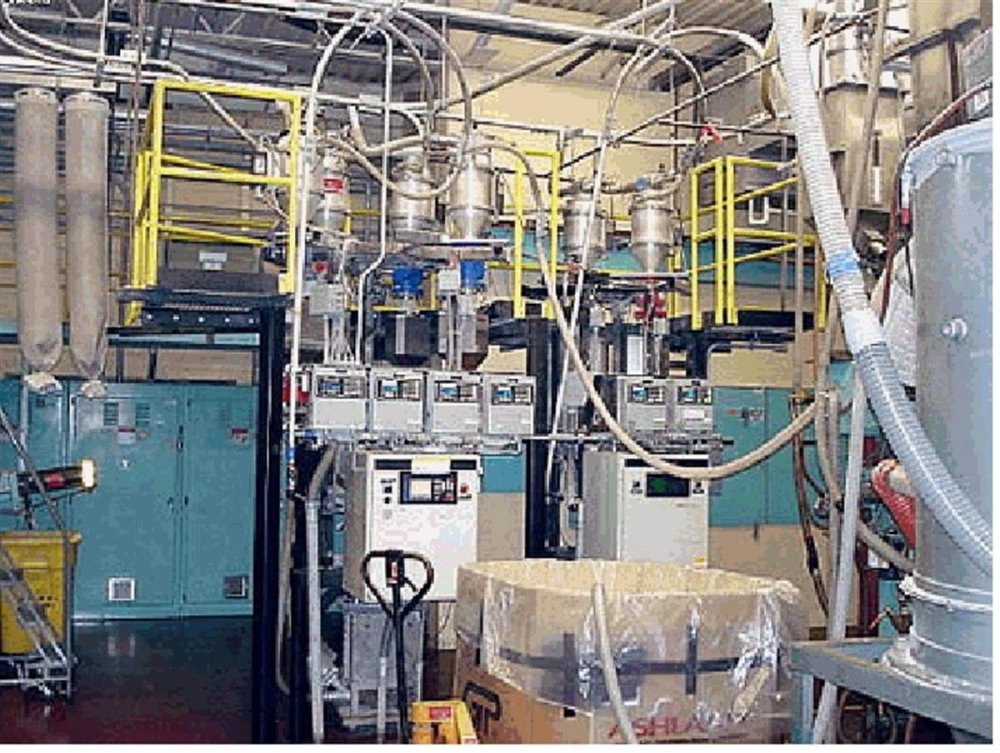

- K-Tron vertech gravimetric feed resin system (4+2 blenders) 2 Beringer hydraulic screen changers (model SL-35, model SL-25) 2 polymer melt pumps with DC drives Egan 3-layer feed block Egan 2032mm 3-roll casting station (406mm diameter x 2032mm rolls) 2 roll Kuster calenders Ohmart beta gauge 2133mm Eriez EZ5 Metal Detector (new in 2003) 36kw Sterlco hot oil unit 75kw HTT hot oil unit Systronics ision system (2 cameras)
| Machine Code | CA148 |
| Manufacturer | EGAN |
| Year | 1991 |
| Number of layers | 3 |
| Film structure | ABA |
| Material | CPP |
| Film width (mm) | 1626 |
| Extruder 1 Layer ref: | A |
| Extruder 2 Layer ref: | B |
| Head description | EDI automatic die |
| Die width (mm) | 1981 |
| Rewinder max reel diameter (mm) | 914 |

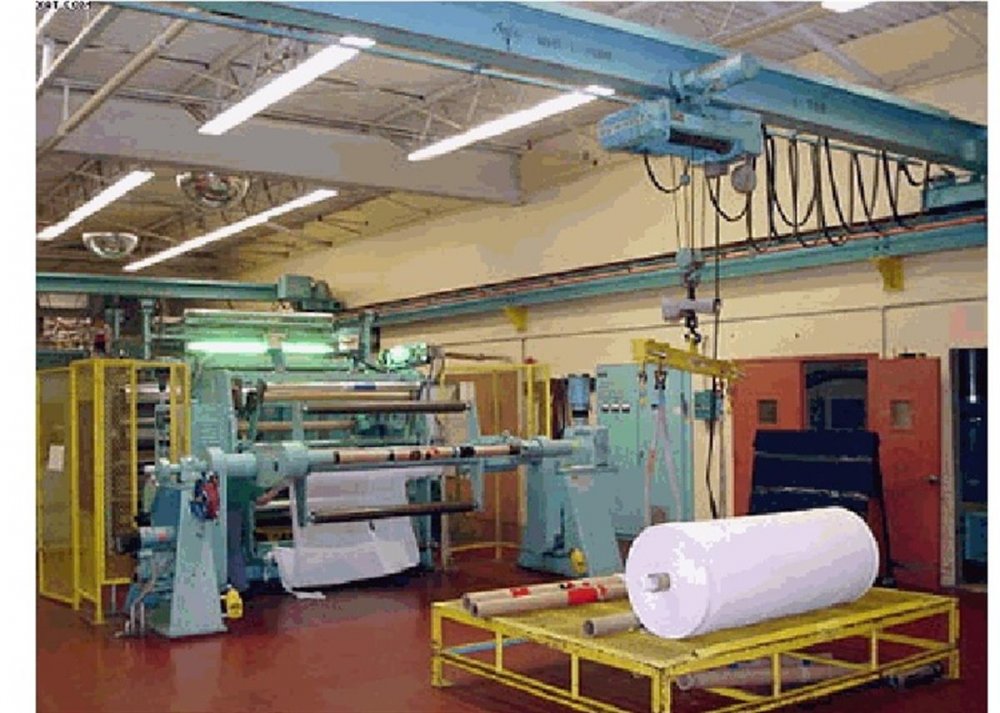

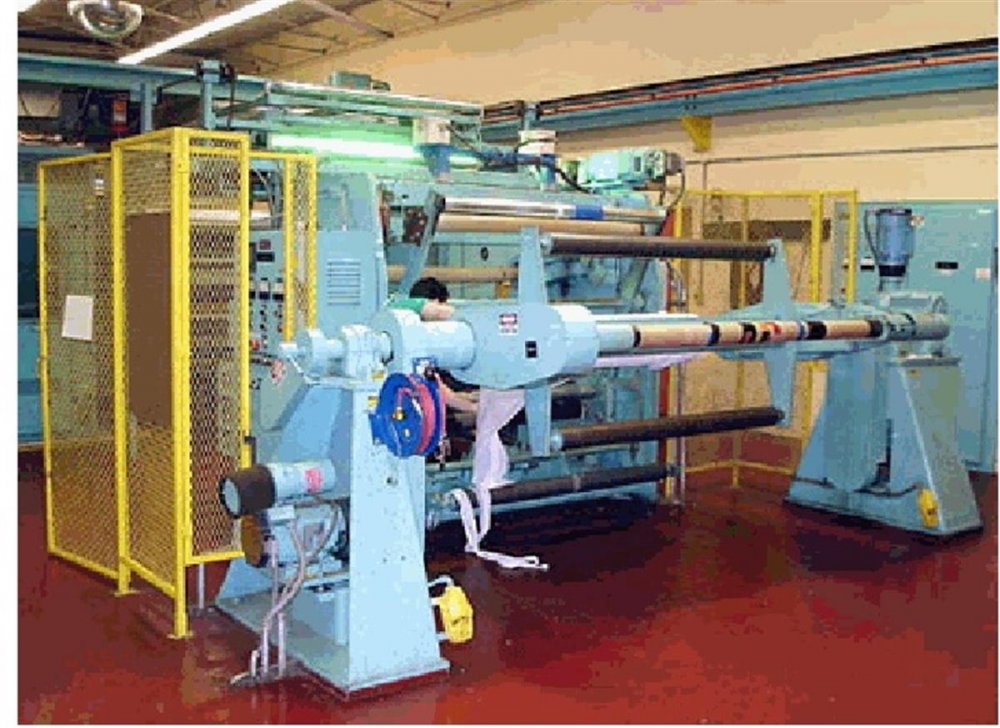

| Rewinder description | Turret |
| Note | K-Tron vertech gravimetric feed resin system (4+2 blenders) 2 Beringer hydraulic screen changers (model SL-35, model SL-25) 2 polymer melt pumps with DC drives Egan 3-layer feed block Egan 2032mm 3-roll casting station (406mm diameter x 2032mm rolls) 2 roll Kuster calenders Ohmart beta gauge 2133mm Eriez EZ5 Metal Detector (new in 2003) 36kw Sterlco hot oil unit 75kw HTT hot oil unit Systronics ision system (2 cameras) |
WINDMÖLLER & HÖLSCHER FILMEX
-
Machine Code: CA093
-
Year: 1995
-
Film width (mm): 1850
WINDMÖLLER & HÖLSCHER Filmex
-
Machine Code: CA254
-
Year: 2000
-
Film width (mm): 2200
WINDMÖLLER & HÖLSCHER FILMEX
-
Machine Code: CA133
-
Year: 1999
-
Film width (mm): 1760
ADTECH PROVERA HR 1000/3
-
Machine Code: CA206
-
Year: 2005
-
Film width (mm): 1000

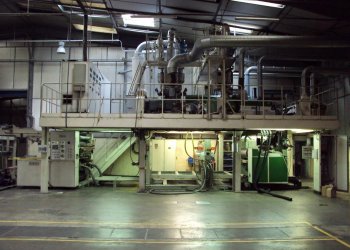

MACCHI
-
Machine Code: CA235
-
Year: 1999
-
Film width (mm): 1500
