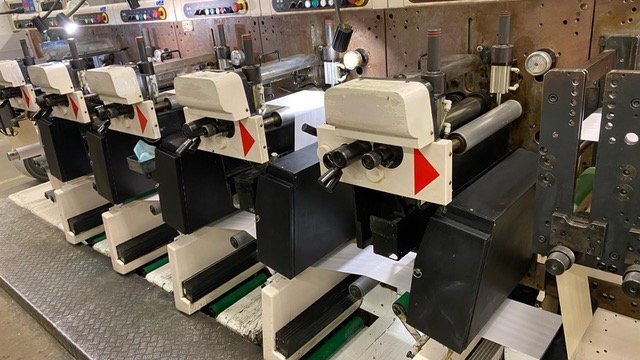

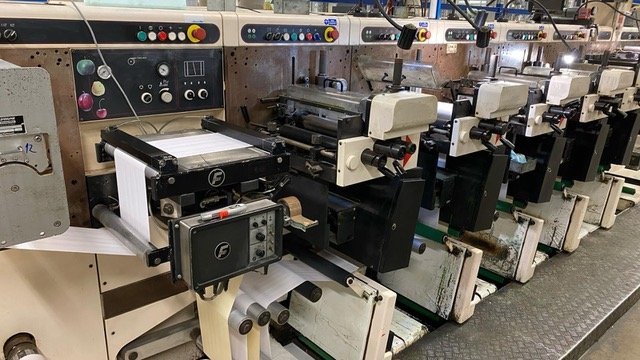

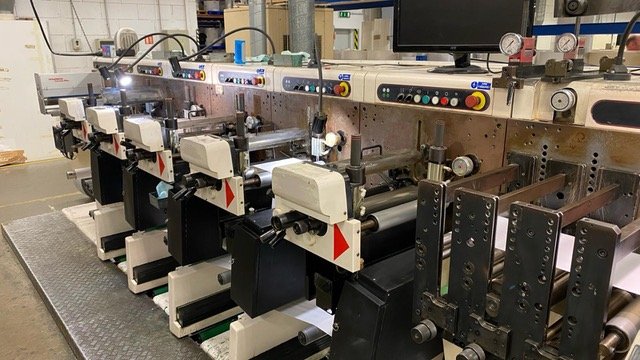

Flexographic printing machines (often abbreviated as flexo printer) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- LAB250
- Manufacturer
- NILPETER
- Modello
- FA3300
- Year
- 2004
- Number of colors
- 5
- Web width (mm)
- 333
- Print width (mm)
- 320
- Drying
- UV + hot air
- Unwinder
- 750 mm
- Rewinder
- 700 mm
- Note
- Number of printing units: 5 (all UV and hot air drying) Min. material width: 150 mm Max. material width: 333 mm Max. diameter of unwind roll: 750 mm Max. diameter of winding roll: 700 mm Printing cylinders: 5 x 80, 85, 96 and 114 teeth Magnetic cylinder: 80, 85, 96 and 114 teeth Anilox cylinder: 10 pcs Other items : 14 x UV lamp 14 x source 20 x flap for UV lamp 3 x bottom cassette 1 x top cassette
| Machine Code | LAB250 |
| Manufacturer | NILPETER |
| Modello | FA3300 |
| Year | 2004 |
| Number of colors | 5 |
| Web width (mm) | 333 |
| Print width (mm) | 320 |
| Drying | UV + hot air |
| Unwinder | 750 mm |
| Rewinder | 700 mm |
| Note | Number of printing units: 5 (all UV and hot air drying) Min. material width: 150 mm Max. material width: 333 mm Max. diameter of unwind roll: 750 mm Max. diameter of winding roll: 700 mm Printing cylinders: 5 x 80, 85, 96 and 114 teeth Magnetic cylinder: 80, 85, 96 and 114 teeth Anilox cylinder: 10 pcs Other items : 14 x UV lamp 14 x source 20 x flap for UV lamp 3 x bottom cassette 1 x top cassette |
