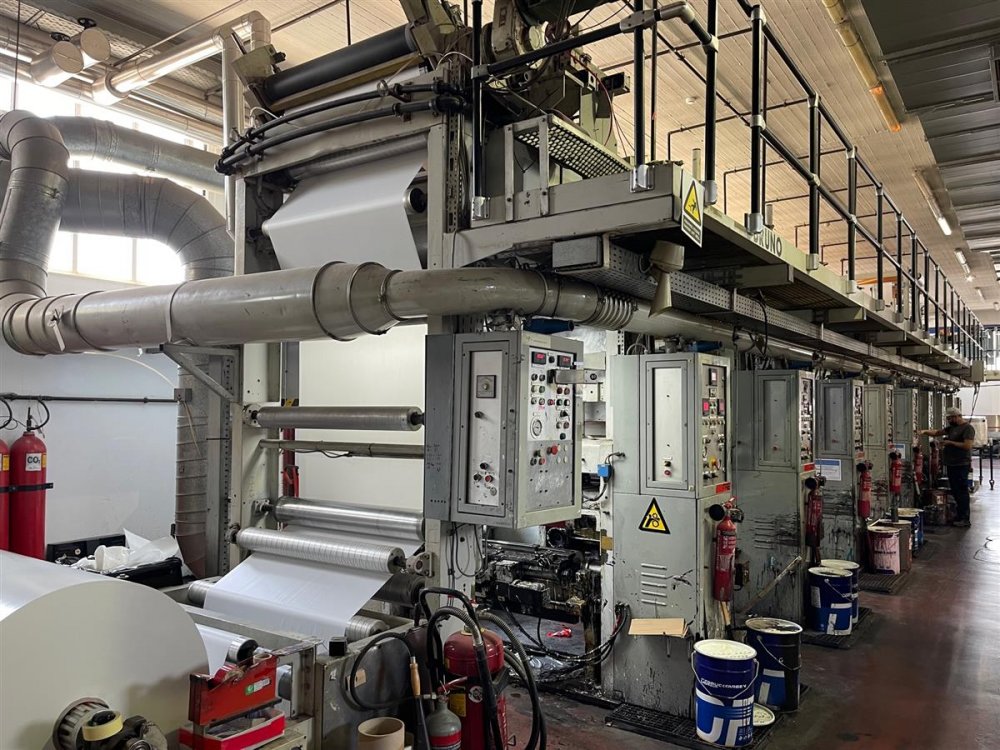

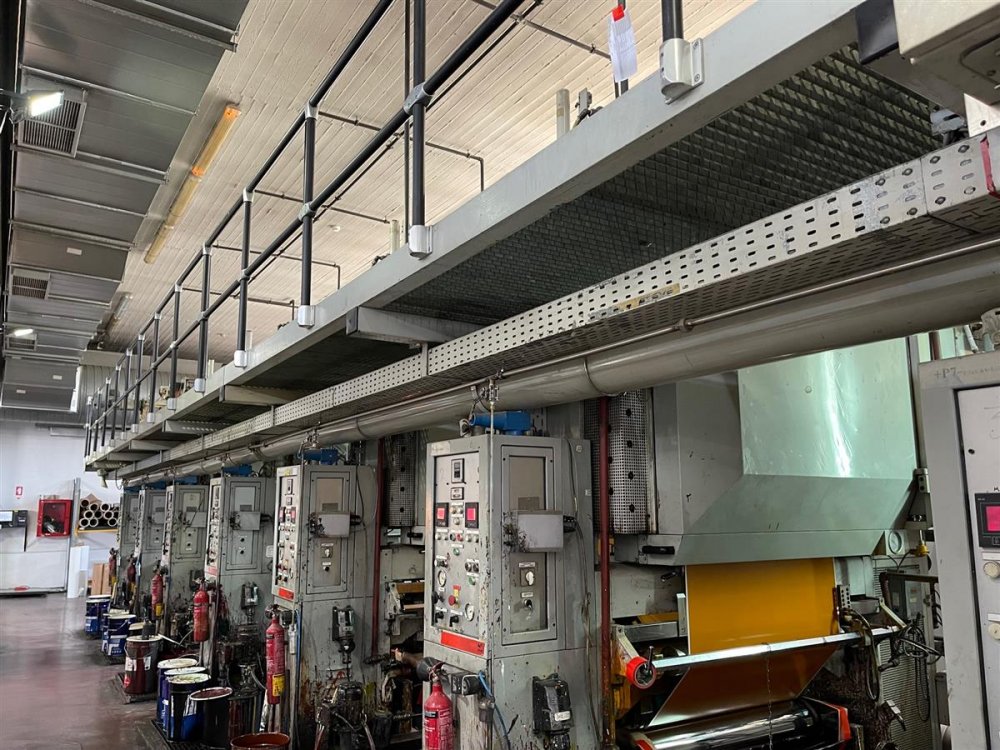

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO236
- Manufacturer
- KROENERT
- Modello
- GRAVURE
- Year
- 1996
- Number of colors
- 8
- Drive
- Cardan
- Trolley system
- Yes
- Web width (mm)
- 1020
- Print width (mm)
- 1000
- Drying specifications
- Single dryer hoods on print units 1-7; Double dryer hoods on print unit 8
- Drying heat surce
- Oil heating source
- Max reel diameter unwinder (mm)
- 1000
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- Yes, BST
- Register controll
- Yes, ELTROMAT
- Vyscosity control
- GAMMA
- Corona treatment
- Yes, ELTROMAT
- Note
- Materials: Paper 30-120 gsm, polyester 12mic, BOPP 18mic, PP 25 mic, HDPE 30mic
| Machine Code | RO236 |
| Manufacturer | KROENERT |
| Modello | GRAVURE |
| Year | 1996 |
| Number of colors | 8 |
| Drive | Cardan |
| Trolley system | Yes |
| Web width (mm) | 1020 |
| Print width (mm) | 1000 |
| Drying specifications | Single dryer hoods on print units 1-7; Double dryer hoods on print unit 8 |
| Drying heat surce | Oil heating source |
| Max reel diameter unwinder (mm) | 1000 |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | Yes, BST |
| Register controll | Yes, ELTROMAT |
| Vyscosity control | GAMMA |
| Corona treatment | Yes, ELTROMAT |
| Note | Materials: Paper 30-120 gsm, polyester 12mic, BOPP 18mic, PP 25 mic, HDPE 30mic |
