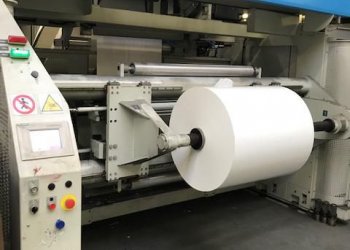

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO179
- Manufacturer
- BOBST ROTOMEC
- Modello
- ROTOPACK 4004 ES
- Year
- 2004
- Number of colors
- 8
- Print possibilities
- 8+0 print plus coating. Unit 8 reversible. Turning bar on unit 8
- Overhaul/renovation
- 2007
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1020
- Print width (mm)
- 1000
- Print repeat range (mm)
- 350-800 mm
- Drying specifications
- 8 INDEPENDENT drying section 8 blowing fans , one general exhaust oil heated, unit 1 double, unit 2-7 single, unit 8 double extended
- Drying heat surce
- thermo oil
- Unwinder type
- Turret shaftless
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret shaftless
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- video camera bst
- Register controll
- yes Eltromat
- Vyscosity control
- No
- Corona treatment
- Yes , shermann
- Print cylinders
- sleeve type gravure
- Note
- Plc siemens s7 Gearless electronic shaft siemens drives and motors 2x web guide 16 trolleys Lel control system Speed 350 mpm
| Machine Code | RO179 |
| Manufacturer | BOBST ROTOMEC |
| Modello | ROTOPACK 4004 ES |
| Year | 2004 |
| Number of colors | 8 |
| Print possibilities | 8+0 print plus coating. Unit 8 reversible. Turning bar on unit 8 |
| Overhaul/renovation | 2007 |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1020 |
| Print width (mm) | 1000 |
| Print repeat range (mm) | 350-800 mm |
| Drying specifications | 8 INDEPENDENT drying section 8 blowing fans , one general exhaust oil heated, unit 1 double, unit 2-7 single, unit 8 double extended |
| Drying heat surce | thermo oil |
| Unwinder type | Turret shaftless |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret shaftless |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | video camera bst |
| Register controll | yes Eltromat |
| Vyscosity control | No |
| Corona treatment | Yes , shermann |
| Print cylinders | sleeve type gravure |
| Note | Plc siemens s7 Gearless electronic shaft siemens drives and motors 2x web guide 16 trolleys Lel control system Speed 350 mpm |
