** SOLD **
Rotogravure presses allow high and stable print quality. Recent technical improvements also allowed to reduce set up times.
Ask more informations
about a similar one
- Machine Code
- RO148
- Manufacturer
- BOBST ROTOMEC
- Modello
- 4003 MP 1350
- Year
- 2011
- Number of colors
- 9
- Print possibilities
- 8+1, 9+0
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1325
- Print repeat range (mm)
- 450-920 mm
- Drying specifications
- units 2 to 7 , 1 blowing fan each unit ( totally 6 ) , single drying hood 2, 5 mt , and one main common exhaust fan ; for units 1, 8 and 9 double drying hood 2 x 2,,5 mt , 1 blowing and 1 exhaust fan each one of the three units . Automatic air recirculation unit with LEL control by Rotomec Zellweger for all units -12 control zones
- Drying heat surce
- Thermo oil heating system one for each zone totally 12 with independent preset and control
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- yes
- Register controll
- Automatic long and side register cobtrol BOBST REGISTRON S 5100 E4 + automatic fast pre register system T.A.P.S.
- Vyscosity control
- 8 automatic Rotomec New Celio mod 1600 RT
- Corona treatment
- YES by MERO
- Print cylinders
- 800 already engraved
- Note
- 16 trolleys Electrostatic assistance system and discharge by ACE Heting preconditioning unit Totally automatic pre register system ( TAPS ) Fire detection and protection system on all units 9 antistatic bars ACE 18 trolleys
| Machine Code | RO148 |
| Manufacturer | BOBST ROTOMEC |
| Modello | 4003 MP 1350 |
| Year | 2011 |
| Number of colors | 9 |
| Print possibilities | 8+1, 9+0 |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1325 |
| Print repeat range (mm) | 450-920 mm |
| Drying specifications | units 2 to 7 , 1 blowing fan each unit ( totally 6 ) , single drying hood 2, 5 mt , and one main common exhaust fan ; for units 1, 8 and 9 double drying hood 2 x 2,,5 mt , 1 blowing and 1 exhaust fan each one of the three units . Automatic air recirculation unit with LEL control by Rotomec Zellweger for all units -12 control zones |
| Drying heat surce | Thermo oil heating system one for each zone totally 12 with independent preset and control |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | yes |
| Register controll | Automatic long and side register cobtrol BOBST REGISTRON S 5100 E4 + automatic fast pre register system T.A.P.S. |
| Vyscosity control | 8 automatic Rotomec New Celio mod 1600 RT |
| Corona treatment | YES by MERO |
| Print cylinders | 800 already engraved |
| Note | 16 trolleys Electrostatic assistance system and discharge by ACE Heting preconditioning unit Totally automatic pre register system ( TAPS ) Fire detection and protection system on all units 9 antistatic bars ACE 18 trolleys |
ACOM RG Platinum
-
Machine Code: RO242
-
Year: 2006
-
Web width (mm): 1350
WINDMÖLLER & HÖLSCHER HELIOSTAR 2000
-
Machine Code: RO258
-
Year: 2002
-
Web width (mm): 1220
ROTOMEC RS4003
-
Machine Code: RO239
-
Year: 2008
-
Web width (mm): 1220

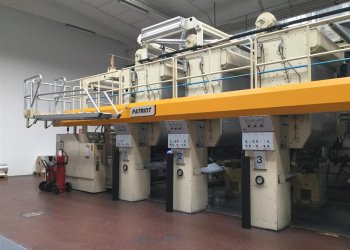

SCHIAVI PATRIOT
-
