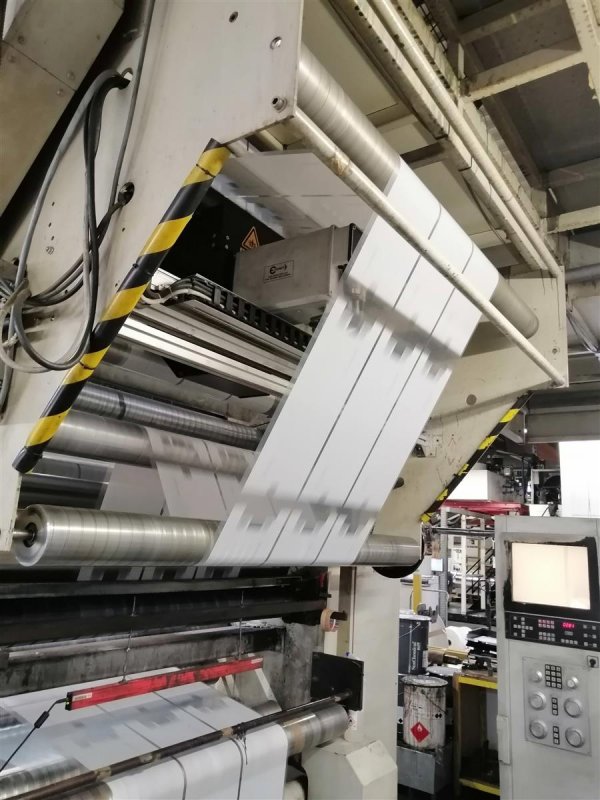

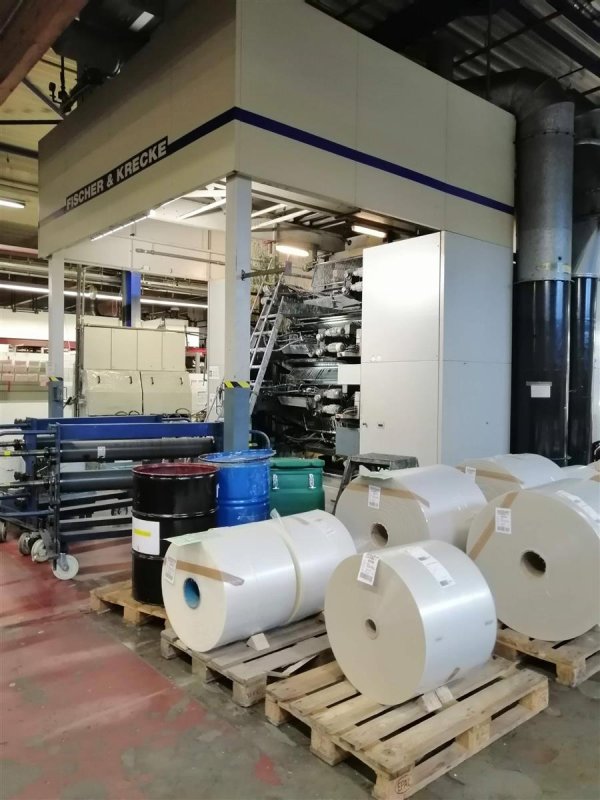

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL0695
- Manufacturer
- FISCHER & KRECKE
- Modello
- 34DF/8 CNC
- Year
- 1995
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1300
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 1100
- Unwinder type
- Turret FLYING SPLICE
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret FLYING SPLICE
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans 2 gas burners
- Videocamera
- Yes
- Corona treatment
- NO
- Web guides
- FIFE
- Vyscosity control
- Yes
- Washing system
- yes, F&K
- Inking system
- Ceramic anilox + closed chambered doctor blade
- Anilox
- 1x 80 L/cm, 2x 200 L/cm, 2x 120 L/cm, 4x 200 L/cm , 2x 320 L/cm , 3x 400 L/cm
- Print Sleeves
- 200 sleeves repeat between 390 mm and 1090 mm ( 8 for each following repeat x 390 , 400, 410 , 420 , 430 , 450 , 480 , 510 , 530 , 540 , 550, 630 , 660 , 670, 740 , 780 , 800 , 850 , 880 , 930 , 990 , 1030 , 1050 , 1090 + 8 twinlock 740 mm + 8 twinlock 1030
- Print cylinders
- Mandrels for sleeve s 6 x360 , 6x 400 , 6x 420 , 8 x 460 , 8x 530 , 6x 560 , 12 x 620 , 8x 780 , 8x 850 , 15 x 990 mm. Printing cylinders 8x 380 , 8x 390 , 12x 400 , 8x410 , 8x 450 , 6x 460 , 7x 470 , 4x 490 , 12x 500 , 8x 510 , 12x 530 , 8x 540 twinlock , 6x 560 , 8x 570 , 8x 580 , 8x 590 , 12x620 , 9x 640 , 12x 660 , 6x 670 , 6x 730 ,
- Note
- Overall sizes: L=17m, W=5m, H=6m Mech speed: 350m/min, working speed: up to 300m/min Diameter of central drum: 2280mm
| Machine Code | FL0695 |
| Manufacturer | FISCHER & KRECKE |
| Modello | 34DF/8 CNC |
| Year | 1995 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 1100 |

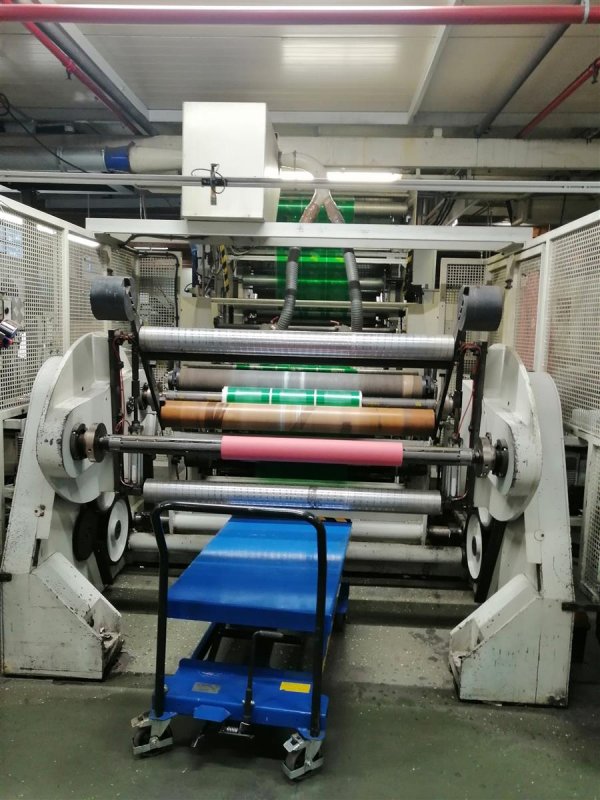

| Unwinder type | Turret FLYING SPLICE |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret FLYING SPLICE |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans 2 gas burners |
| Videocamera | Yes |
| Corona treatment | NO |
| Web guides | FIFE |
| Vyscosity control | Yes |
| Washing system | yes, F&K |
| Inking system | Ceramic anilox + closed chambered doctor blade |
| Anilox | 1x 80 L/cm, 2x 200 L/cm, 2x 120 L/cm, 4x 200 L/cm , 2x 320 L/cm , 3x 400 L/cm |
| Print Sleeves | 200 sleeves repeat between 390 mm and 1090 mm ( 8 for each following repeat x 390 , 400, 410 , 420 , 430 , 450 , 480 , 510 , 530 , 540 , 550, 630 , 660 , 670, 740 , 780 , 800 , 850 , 880 , 930 , 990 , 1030 , 1050 , 1090 + 8 twinlock 740 mm + 8 twinlock 1030 |
| Print cylinders | Mandrels for sleeve s 6 x360 , 6x 400 , 6x 420 , 8 x 460 , 8x 530 , 6x 560 , 12 x 620 , 8x 780 , 8x 850 , 15 x 990 mm. Printing cylinders 8x 380 , 8x 390 , 12x 400 , 8x410 , 8x 450 , 6x 460 , 7x 470 , 4x 490 , 12x 500 , 8x 510 , 12x 530 , 8x 540 twinlock , 6x 560 , 8x 570 , 8x 580 , 8x 590 , 12x620 , 9x 640 , 12x 660 , 6x 670 , 6x 730 , |
| Note | Overall sizes: L=17m, W=5m, H=6m Mech speed: 350m/min, working speed: up to 300m/min Diameter of central drum: 2280mm |
