Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.
Ask more informations
- Machine Code
- FL1163
- Manufacturer
- UTECO
- Modello
- ONYX 808
- Year
- 2010
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 800
- Unwinder type
- Turret Automatic with roll loading system
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , 4 fans , final tunnel 4 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone
- Videocamera
- Yes Grafykontrol with auto register control
- Web guides
- yes in and out
- Vyscosity control
- Yes
- Washing system
- Yes automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 18 ceramic anilox sleeves
- Print Sleeves
- APPROX 200
| Machine Code | FL1163 |
| Manufacturer | UTECO |
| Modello | ONYX 808 |
| Year | 2010 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic with roll loading system |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret Automatic with roll unloading system |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans , final tunnel 4 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone |
| Videocamera | Yes Grafykontrol with auto register control |
| Web guides | yes in and out |
| Vyscosity control | Yes |
| Washing system | Yes automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 18 ceramic anilox sleeves |
| Print Sleeves | APPROX 200 |
UTECO ONYX 876
-
Machine Code: FL1041
-
Year: 2010
-
Web width (mm): 1350

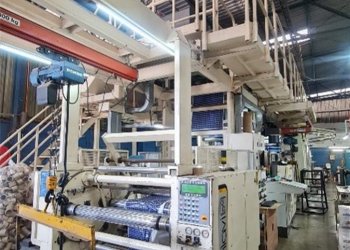

Schiavi Alpha 8C
-
Machine Code: FL1070
-
Year: 2000
-
Web width (mm):

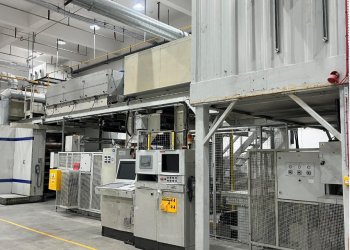

FISCHER & KRECKE 16S
-
Machine Code: FL1087
-
Year: 2005
-
Web width (mm): 1100

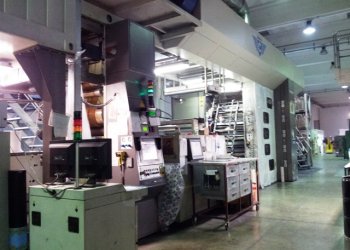

FLEXOTECNICA 10NG
-
Machine Code: FL0632
-
Year: 2009
-
Web width (mm): 1260
TCM Midi 50 - 114
-
Machine Code: FL0965
-
Year: 1998
-
Web width (mm): 1350

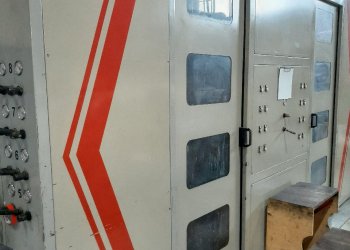

COMIFLEX CI8
-
