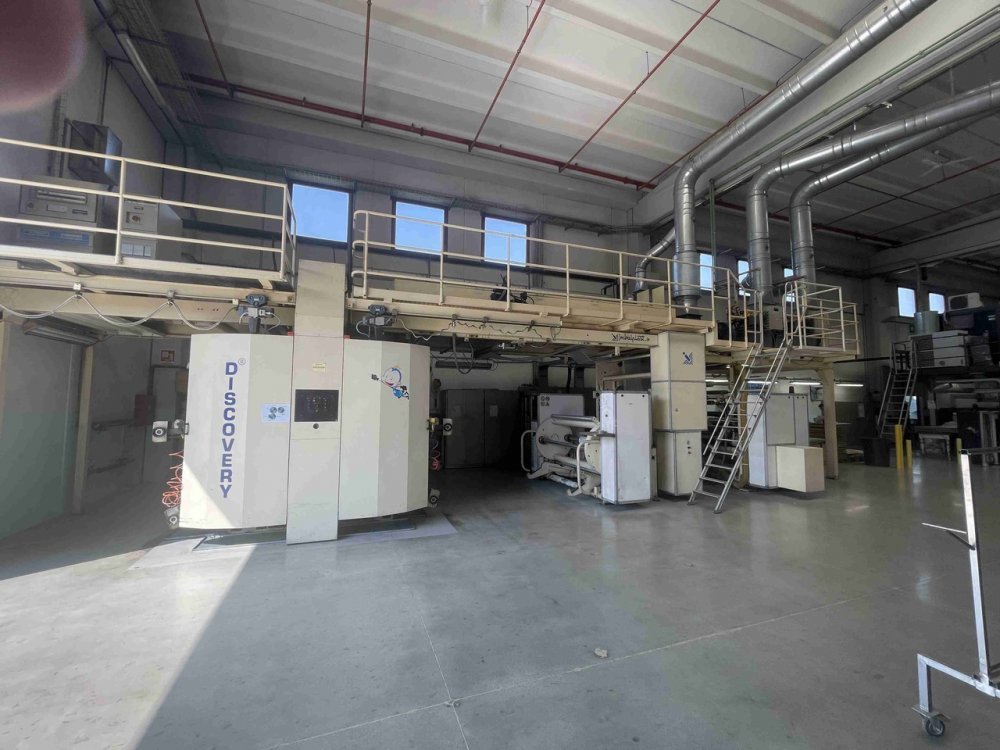

Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
- Machine Code
- FL1133
- Manufacturer
- CARINT
- Modello
- Discovery
- Year
- 1999
- Number of colors
- 8
- Gearless
- No
- Fast sleeve change
- No
- Web width (mm)
- 1500
- Print width (mm)
- 1430
- Min print repeat (mm)
- 360
- Max print repeat (mm)
- 1200

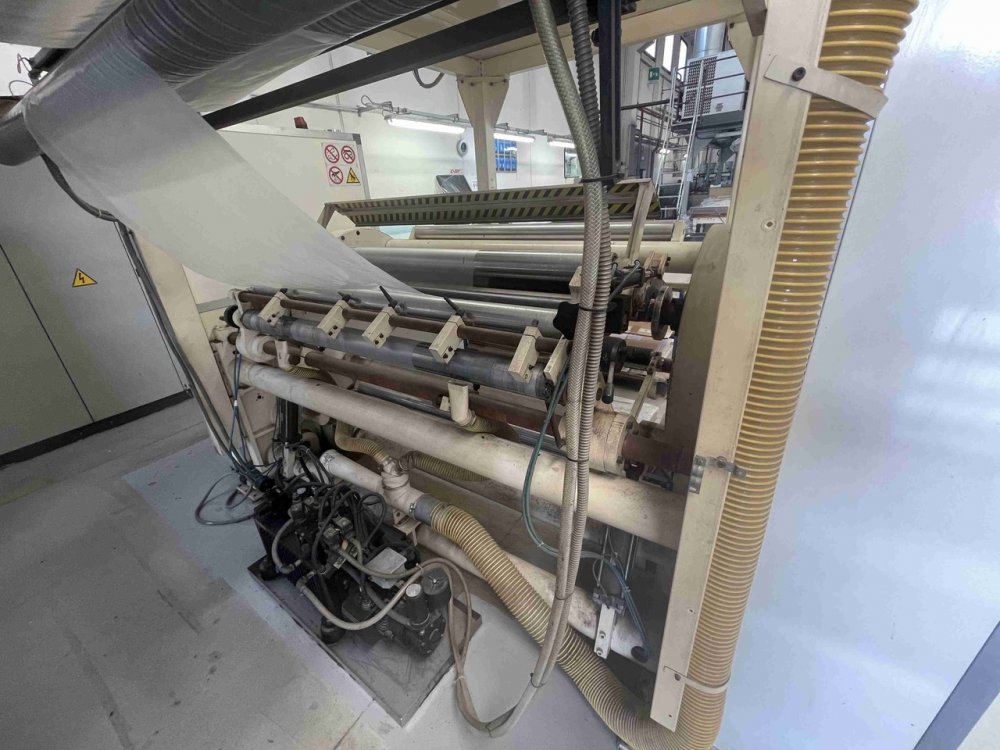

- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones, 4 fans , final tunnel, Thermal oil heat exchangers

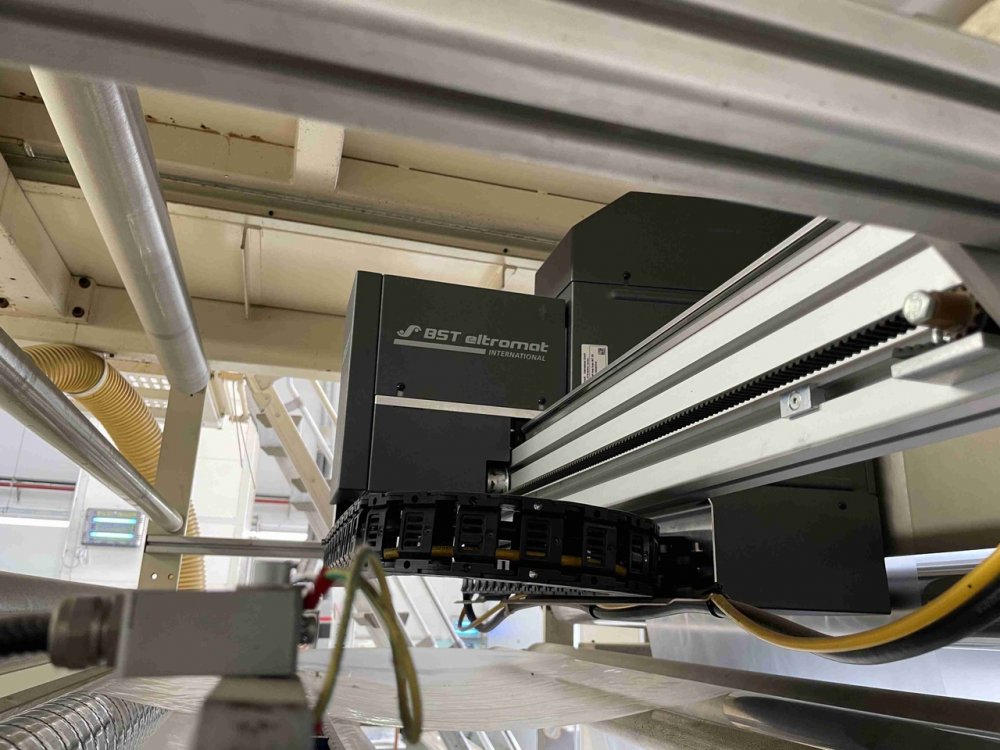

- Videocamera
- Yes, BST Eltromat
- Anilox
- 15 Aniloxes
| Machine Code | FL1133 |
| Manufacturer | CARINT |
| Modello | Discovery |
| Year | 1999 |
| Number of colors | 8 |
| Gearless | No |
| Fast sleeve change | No |
| Web width (mm) | 1500 |
| Print width (mm) | 1430 |
| Min print repeat (mm) | 360 |
| Max print repeat (mm) | 1200 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones, 4 fans , final tunnel, Thermal oil heat exchangers |
| Videocamera | Yes, BST Eltromat |
| Anilox | 15 Aniloxes |
