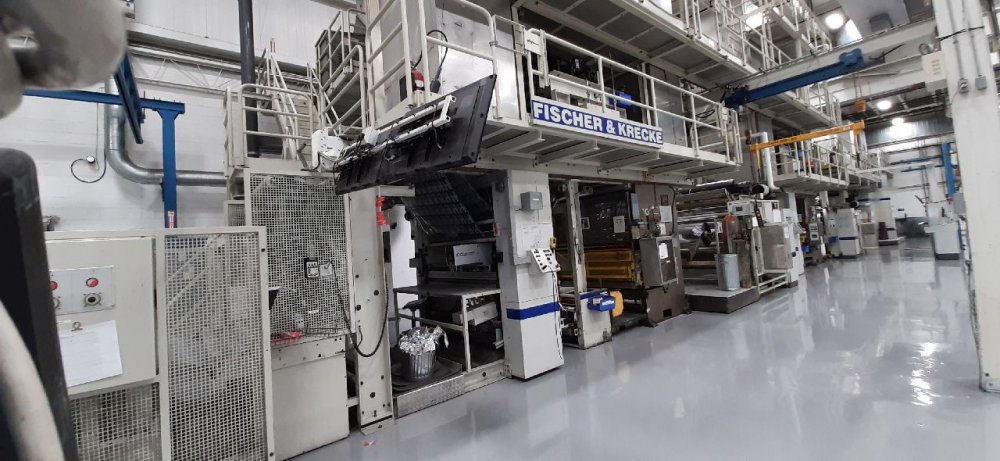

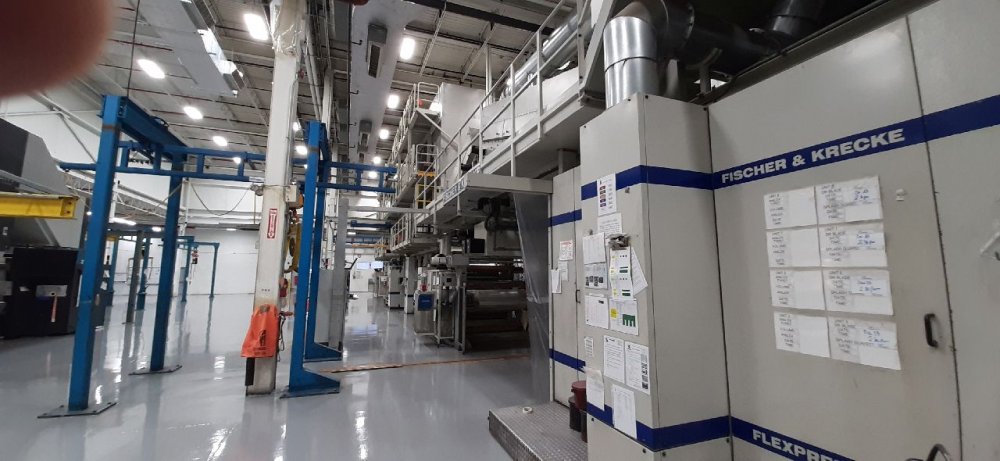

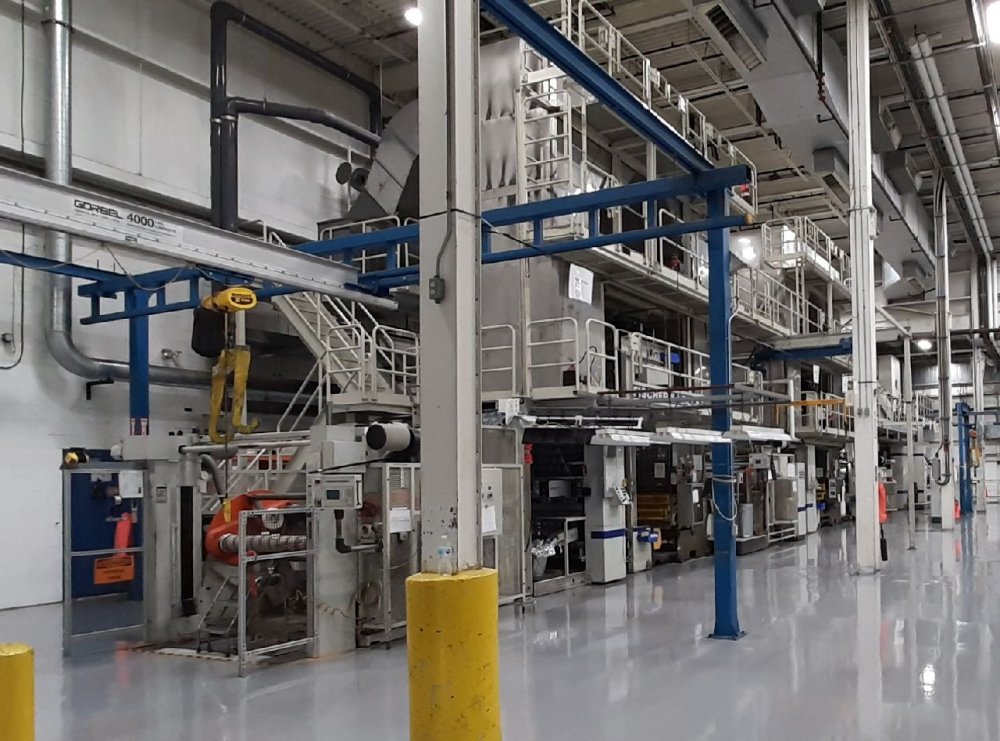

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1130
- Manufacturer
- FISCHER & KRECKE
- Modello
- F16 S
- Year
- 2001
- Number of colors
- 8
- Print possibilityes
- 8 + 1 Gravure Coating lamination unit + 1 Gravure coating in register
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1320
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- Turret Automatic with roll loading system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- CI section 2 zone s - 4 fans 5 mt tunnel - 1st Gravure unit 2 zones with 2 x 6 mt hoods totally 12 mt - 2nd Gravure coating unit 2 zones with 2 x 6 mt hoods totally 12 mt
- Videocamera
- Yes BST E LTROMAT new 2018
- Corona treatment
- 3 corona treaters driven
- Web guides
- 4 before print section and one before each gravure unit
- Vyscosity control
- Bloss Viscosity Control System Viscolor 2200
- Washing system
- Yes FK Autoclean
- Inking system
- Closed chamber doctor blades
- Anilox
- 18
- Print Sleeves
- 32
- Note
- Additional secondary Turret unwinder diam 1000 mm for lamination film
Machine Code | FL1130 |
Manufacturer | FISCHER & KRECKE |
Modello | F16 S |
Year | 2001 |
Number of colors | 8 |
Print possibilityes | 8 + 1 Gravure Coating lamination unit + 1 Gravure coating in register |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1270 |
Print width (mm) | 1320 |
Min print repeat (mm) | 350 |
Max print repeat (mm) | 800 |
Unwinder type | Turret Automatic with roll loading system |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Turret Automatic with roll unloading system |
Max reel diameter rewinder (mm) | 1000 |
Drying | CI section 2 zone s - 4 fans 5 mt tunnel - 1st Gravure unit 2 zones with 2 x 6 mt hoods totally 12 mt - 2nd Gravure coating unit 2 zones with 2 x 6 mt hoods totally 12 mt |
Videocamera | Yes BST E LTROMAT new 2018 |
Corona treatment | 3 corona treaters driven |
Web guides | 4 before print section and one before each gravure unit |
Vyscosity control | Bloss Viscosity Control System Viscolor 2200 |
Washing system | Yes FK Autoclean |
Inking system | Closed chamber doctor blades |
Anilox | 18 |
Print Sleeves | 32 |
Note | Additional secondary Turret unwinder diam 1000 mm for lamination film |
