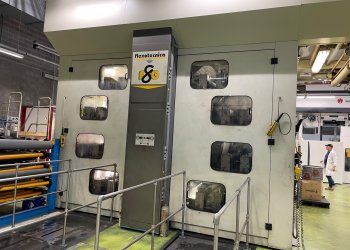

FLEXOTECNICA FG8 Flexo printer 9 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Photo Gallery

Ask more informations

about a similar one

Machine Code: FL1111
Manufacturer: FLEXOTECNICA
Modello: FG8
Year: 2005
Number of colors: 9
Print possibilityes: 8 on CI +1 STACK DOWNSTREAM
Gearless: Yes
Fast sleeve change: Yes
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 1350
Print width (mm): 1300
Min print repeat (mm): 400
Max print repeat (mm): 1200
Unwinder type: Turret automatic
Max reel diameter unwinder (mm): 1270
Rewinder type: Turret automatic
Max reel diameter rewinder (mm): 1270
Drying: 2 zones , 4 fans, final tunnel 2 gas burners - Downstream stack unit with Drying hood and UV drying box
Videocamera: yes
Corona treatment: YES
Web guides: yes in and out Fife OPG
Vyscosity control: yes 8
Washing system: yes on CI section
Inking system: Closed chamber doctor blades and ceramic anilox - totally 11 blade chabers and 11 pumps with tanks
Anilox: 27 ceramic anilox sleeves 1x50/30, 1x50x25, 1x90x19, 1x100/15, 2x120/12, 3x140/12, 1x140/8, 1x180/9, 1x180/7, 3x220/6.5, 2x32/5.5, 1x420/38, 2x420/48, 1x460/3.2, 5x460/3.2
Print Sleeves: 190 print sleeves
Note: Turning Bar 8+8 half width Chiller Corema

Machine Code	FL1111
Manufacturer	FLEXOTECNICA
Modello	FG8
Year	2005
Number of colors	9
Print possibilityes	8 on CI +1 STACK DOWNSTREAM
Gearless	Yes
Fast sleeve change	Yes
4 motor per deck CNC position system	Yes
Computer supervision	Yes
Web width (mm)	1350
Print width (mm)	1300
Min print repeat (mm)	400
Max print repeat (mm)	1200
Unwinder type	Turret automatic
Max reel diameter unwinder (mm)	1270
Rewinder type	Turret automatic
Max reel diameter rewinder (mm)	1270
Drying	2 zones , 4 fans, final tunnel 2 gas burners - Downstream stack unit with Drying hood and UV drying box
Videocamera	yes
Corona treatment	YES
Web guides	yes in and out Fife OPG
Vyscosity control	yes 8
Washing system	yes on CI section
Inking system	Closed chamber doctor blades and ceramic anilox - totally 11 blade chabers and 11 pumps with tanks
Anilox	27 ceramic anilox sleeves 1x50/30, 1x50x25, 1x90x19, 1x100/15, 2x120/12, 3x140/12, 1x140/8, 1x180/9, 1x180/7, 3x220/6.5, 2x32/5.5, 1x420/38, 2x420/48, 1x460/3.2, 5x460/3.2
Print Sleeves	190 print sleeves
Note	Turning Bar 8+8 half width Chiller Corema
